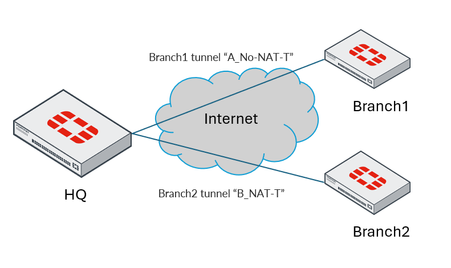

Topology:
The HQ FortiGate has 2 tunnels for 2 branches with the same proposal, but the difference is branch 2 tunnel 'B_NAT-T' has NAT traversal. Peer ID is used to identify the branch.
config vpn ipsec phase1-interface
edit "A_No-NAT-T"
set type dynamic
set interface "port1"
set ike-version 2
set peertype one
set net-device disable
set proposal aes128-sha256
set add-route disable
set dpd on-idle
set nattraversal disable
set peerid "Branch1"
set psksecret <password>
next
edit "B_NAT-T"
set type dynamic
set interface "port1"
set ike-version 2
set peertype one
set net-device disable
set proposal aes128-sha256
set add-route disable
set dpd on-idle
set nattraversal forced
set peerid "Branch2"
set psksecret <password>
next
end
The tunnel 'B_NAT-T' is established without NAT-Traversal even if the setting is 'set nattraversal forced'. When running IKE debugging on the HQ FortiGate the debug output shows HQ is ignoring NAT_DETECTION from the branch2:
HQ # ike 0: comes 198.51.100.1:500->203.0.113.1:500,ifindex=6,vrf=0....
ike 0: IKEv2 exchange=SA_INIT id=05f00193fecee086/0000000000000000 len=448
ike 0: in xxxxxx
ike 0:05f00193fecee086/0000000000000000:29: responder received SA_INIT msg
ike 0:05f00193fecee086/0000000000000000:29: received notify type NAT_DETECTION_SOURCE_IP
ike 0:05f00193fecee086/0000000000000000:29: received notify type NAT_DETECTION_DESTINATION_IP
ike 0:05f00193fecee086/0000000000000000:29: received notify type FRAGMENTATION_SUPPORTED
ike 0:05f00193fecee086/0000000000000000:29: incoming proposal:
ike 0:05f00193fecee086/0000000000000000:29: proposal id = 1:
ike 0:05f00193fecee086/0000000000000000:29: protocol = IKEv2:
ike 0:05f00193fecee086/0000000000000000:29: encapsulation = IKEv2/none
ike 0:05f00193fecee086/0000000000000000:29: type=ENCR, val=AES_CBC (key_len = 128)
ike 0:05f00193fecee086/0000000000000000:29: type=INTEGR, val=AUTH_HMAC_SHA2_256_128
ike 0:05f00193fecee086/0000000000000000:29: type=PRF, val=PRF_HMAC_SHA2_256
ike 0:05f00193fecee086/0000000000000000:29: type=DH_GROUP, val=MODP2048.
ike 0:05f00193fecee086/0000000000000000:29: type=DH_GROUP, val=MODP1536.
ike 0:05f00193fecee086/0000000000000000:29: matched proposal id 1
ike 0:05f00193fecee086/0000000000000000:29: proposal id = 1:
ike 0:05f00193fecee086/0000000000000000:29: protocol = IKEv2:
ike 0:05f00193fecee086/0000000000000000:29: encapsulation = IKEv2/none
ike 0:05f00193fecee086/0000000000000000:29: type=ENCR, val=AES_CBC (key_len = 128)
ike 0:05f00193fecee086/0000000000000000:29: type=INTEGR, val=AUTH_HMAC_SHA2_256_128
ike 0:05f00193fecee086/0000000000000000:29: type=PRF, val=PRF_HMAC_SHA2_256
ike 0:05f00193fecee086/0000000000000000:29: type=DH_GROUP, val=MODP2048.
ike 0:05f00193fecee086/0000000000000000:29: lifetime=86400
ike 0:05f00193fecee086/0000000000000000:29: SA proposal chosen, matched gateway A_No-NAT-T
ike 0:A_No-NAT-T: created connection: 0x10513840 6 203.0.113.1->198.51.100.1:500.
ike 0:A_No-NAT-T:29: processing notify type NAT_DETECTION_SOURCE_IP
ike 0:A_No-NAT-T:29: ignoring unauthenticated notify payload (NAT_DETECTION_SOURCE_IP)
ike 0:A_No-NAT-T:29: processing notify type NAT_DETECTION_DESTINATION_IP
ike 0:A_No-NAT-T:29: ignoring unauthenticated notify payload (NAT_DETECTION_DESTINATION_IP)
ike 0:A_No-NAT-T:29: processing notify type FRAGMENTATION_SUPPORTED
ike 0:A_No-NAT-T:29: responder preparing SA_INIT msg
ike 0:A_No-NAT-T:29: generate DH public value request queued
ike 0:A_No-NAT-T:29: responder preparing SA_INIT msg
ike 0:A_No-NAT-T:29: compute DH shared secret request queued
ike 0:A_No-NAT-T:29: responder preparing SA_INIT msg
ike 0:A_No-NAT-T:29: out xxxxxx
ike 0:A_No-NAT-T:29: sent IKE msg (SA_INIT_RESPONSE): 203.0.113.1:500->198.51.100.1:500, len=368, vrf=0, id=05f00193fecee086/032cc56e44c136cb
ike 0:A_No-NAT-T:29: IKE SA 05f00193fecee086/032cc56e44c136cb SK_ei 16:1962BD6F29767370EFD2DFF6BA0824CC
ike 0:A_No-NAT-T:29: IKE SA 05f00193fecee086/032cc56e44c136cb SK_er 16:15B0A005C9D18F138566E92DD376C1C8
ike 0:A_No-NAT-T:29: IKE SA 05f00193fecee086/032cc56e44c136cb SK_ai 32:E6A8EF8B070C3F77B2B352F2284565DF72C626542C3CFD4621B132D67A48DBB2
ike 0:A_No-NAT-T:29: IKE SA 05f00193fecee086/032cc56e44c136cb SK_ar 32:ED4B5BB6071FB5E118BCF92CBD6BFEA6905A2B8CED55AE583F52EB7059F00F18
ike 0: comes 198.51.100.1:500->203.0.113.1:500,ifindex=6,vrf=0....
ike 0: IKEv2 exchange=AUTH id=05f00193fecee086/032cc56e44c136cb:00000001 len=240
ike 0: in xxxxxx
ike 0:A_No-NAT-T:29: dec 05F00193FECEE086032CC56E44C136CB2E20230800000001000000C3230000042900000F020000004272616E6368322700000800004000290000280200000
0F419D61BAB9F9C2B023FEC64A2E2E6188A1C14EC5F1407D474746B9EA9A2FD8621000008000040242C00002C000000280103040371A6E2E20300000C0100000C800E00800300000803000
00200000008050000002D00001801000000070000100000FFFF0A20BF000A20BFFF0000001801000000070000100000FFFFC0A86300C0A863FF
ike 0:A_No-NAT-T:29: responder received AUTH msg
ike 0:A_No-NAT-T:29: processing notify type INITIAL_CONTACT
ike 0:A_No-NAT-T:29: processing notify type MESSAGE_ID_SYNC_SUPPORTED
ike 0:A_No-NAT-T:29: received peer identifier FQDN 'Branch2'
ike 0:A_No-NAT-T:29: re-validate gw ID
ike 0:A_No-NAT-T: change phase1 profile to B_NAT-T
ike 0:B_NAT-T:29: gw validation OK
ike 0:B_NAT-T:29: auth verify done
ike 0:B_NAT-T:29: responder AUTH continuation
ike 0:B_NAT-T:29: authentication succeeded
ike 0:B_NAT-T:29: responder creating new child
....
....
ike 0:B_NAT-T_0:29:B_NAT-T:9: sending SNMP tunnel UP trap
ike 0:B_NAT-T_0: tunnel up event
ike 0:B_NAT-T_0:29: enc xxxxx
ike 0:B_NAT-T_0:29: out xxxxx
ike 0:B_NAT-T_0:29: sent IKE msg (AUTH_RESPONSE): 203.0.113.1:500->198.51.100.1:500, len=224, vrf=0, id=05f00193fecee086/032cc56e44c136cb:00000001
ike 0:B_NAT-T_0: link is idle 6 203.0.113.1->198.51.100.1:0 dpd=1 seqno=1 rr=0
The reason is when the FortiGate receives an SA_INIT message, there is no peer ID available for FortiGate to immediately identify the correct tunnel (B_NAT-T). If FortiGate selects a tunnel where NAT traversal is disabled (A_No-NAT-T), the NAT_DETECTION will be ignored, and the SA_INIT packet from the responder will not include NAT-T.
To avoid this problem, NAT-T tunnel and No NAT-T tunnel should be configured with a different proposal value (IKE version, DH group, or encryption and authentication algorithm).
In this example, the proposal encryption and authentication algorithm is changed to aes256-sha256:
edit "B_NAT-T"
set type dynamic
set interface "port1"
set ike-version 2
set peertype one
set net-device disable
set proposal aes256-sha256
set add-route disable
set dpd on-idle
set nattraversal forced
set peerid "Branch2"
set psksecret <password>
next
end
The HQ will process NAT DETECTION and UDP port 4500 will be established:
ike 0: comes 198.51.100.1:500->203.0.113.1:500,ifindex=6,vrf=0....
ike 0: IKEv2 exchange=SA_INIT id=32375bf5c7914912/0000000000000000 len=448
ike 0: in xxxxx
ike 0:32375bf5c7914912/0000000000000000:33: responder received SA_INIT msg
ike 0:32375bf5c7914912/0000000000000000:33: received notify type NAT_DETECTION_SOURCE_IP
ike 0:32375bf5c7914912/0000000000000000:33: received notify type NAT_DETECTION_DESTINATION_IP
ike 0:32375bf5c7914912/0000000000000000:33: received notify type FRAGMENTATION_SUPPORTED
ike 0:32375bf5c7914912/0000000000000000:33: incoming proposal:
ike 0:32375bf5c7914912/0000000000000000:33: proposal id = 1:
ike 0:32375bf5c7914912/0000000000000000:33: protocol = IKEv2:
ike 0:32375bf5c7914912/0000000000000000:33: encapsulation = IKEv2/none
ike 0:32375bf5c7914912/0000000000000000:33: type=ENCR, val=AES_CBC (key_len = 256)
ike 0:32375bf5c7914912/0000000000000000:33: type=INTEGR, val=AUTH_HMAC_SHA2_256_128
ike 0:32375bf5c7914912/0000000000000000:33: type=PRF, val=PRF_HMAC_SHA2_256
ike 0:32375bf5c7914912/0000000000000000:33: type=DH_GROUP, val=MODP2048.
ike 0:32375bf5c7914912/0000000000000000:33: type=DH_GROUP, val=MODP1536.
ike 0: cache rebuild start
ike 0:A_No-NAT-T: cached as dynamic 'Branch1'
ike 0:B_NAT-T: cached as dynamic 'Branch2'
ike 0: cache rebuild done
ike 0:32375bf5c7914912/0000000000000000:33: matched proposal id 1
ike 0:32375bf5c7914912/0000000000000000:33: proposal id = 1:
ike 0:32375bf5c7914912/0000000000000000:33: protocol = IKEv2:
ike 0:32375bf5c7914912/0000000000000000:33: encapsulation = IKEv2/none
ike 0:32375bf5c7914912/0000000000000000:33: type=ENCR, val=AES_CBC (key_len = 256)
ike 0:32375bf5c7914912/0000000000000000:33: type=INTEGR, val=AUTH_HMAC_SHA2_256_128
ike 0:32375bf5c7914912/0000000000000000:33: type=PRF, val=PRF_HMAC_SHA2_256
ike 0:32375bf5c7914912/0000000000000000:33: type=DH_GROUP, val=MODP2048.
ike 0:32375bf5c7914912/0000000000000000:33: lifetime=86400
ike 0:32375bf5c7914912/0000000000000000:33: SA proposal chosen, matched gateway B_NAT-T
ike 0:B_NAT-T: created connection: 0x105137b0 6 203.0.113.1->198.51.100.1:500.
ike 0:B_NAT-T:33: processing notify type NAT_DETECTION_SOURCE_IP
ike 0:B_NAT-T:33: processing NAT-D payload
ike 0:B_NAT-T:33: NAT detected: PEER
ike 0:B_NAT-T:33: process NAT-D
ike 0:B_NAT-T:33: processing notify type NAT_DETECTION_DESTINATION_IP
ike 0:B_NAT-T:33: processing NAT-D payload
ike 0:B_NAT-T:33: NAT detected: PEER
ike 0:B_NAT-T:33: process NAT-D
ike 0:B_NAT-T:33: processing notify type FRAGMENTATION_SUPPORTED
....
....
ike 0:B_NAT-T_0:33:B_NAT-T:12: sending SNMP tunnel UP trap
ike 0:B_NAT-T_0: tunnel up event
ike 0:B_NAT-T_0:33: enc xxxxx
ike 0:B_NAT-T_0:33: out xxxxx
ike 0:B_NAT-T_0:33: sent IKE msg (AUTH_RESPONSE): 203.0.113.1:4500->198.51.100.1:4500, len=224, vrf=0, id=32375bf5c7914912/d3276ffc4aa7933c:00000001
|
