Description This article describe how to use built-in sniffer packet tool to make sure the block ICMP timestamp is effective on the FortiGate Interface.
Scope FortiGate.
Solution

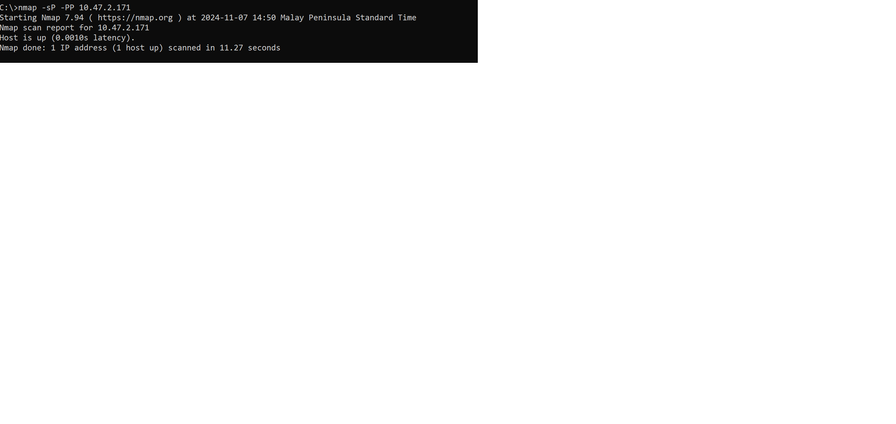

By default, FortiGate will respond to the ICMP Timestamp reply if the ICMP Timestamp is received. The below images demonstrate the Nmap ICMP Timestamp sent to FortiGate's Interface and found 1 host up.

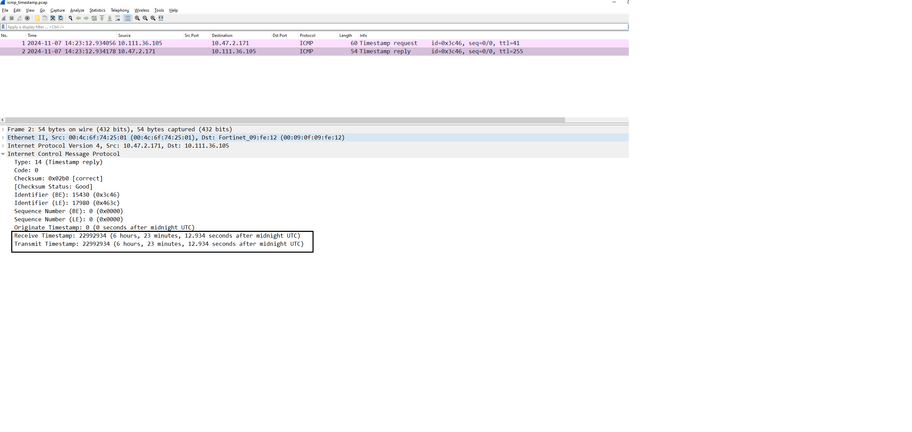

The FortiGate built-in sniffer packet results show the ICMP Timestamp request packet comes in and FortiGate returns the ICMP Timestamp reply.

This information could have potential risks refer to Technical Tip: Block ICMP timestamp on FortiGate interface while keeping ping enabled

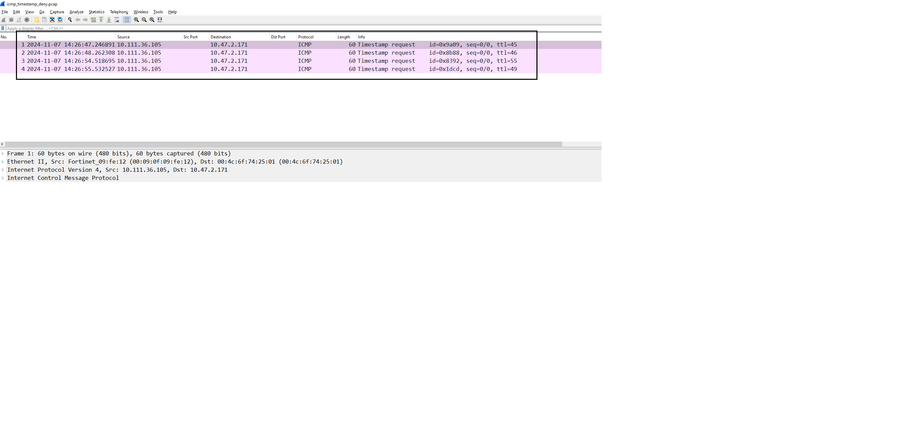

Once applied the Block ICMP Timestamps. The built-in sniffer packet result shows FortiGate will stop response ICMP Timestamp reply.
