Technical Tip: How to use non management VDOM for Fortiguard services and updates

syordanov · ‎11-28-2022

Description

This article explains how to change which VDOM to be used for FortiGuard services and updates when the multi-VDOM mode is used.

Scope

FortiGate v7.2.3+.

Solution

This is useful when management VDOM has no internet connectivity.

Sometimes, management VDOM has no internet access, in such scenarios it is possible to configure FortiGuard settings to use different VDOM.

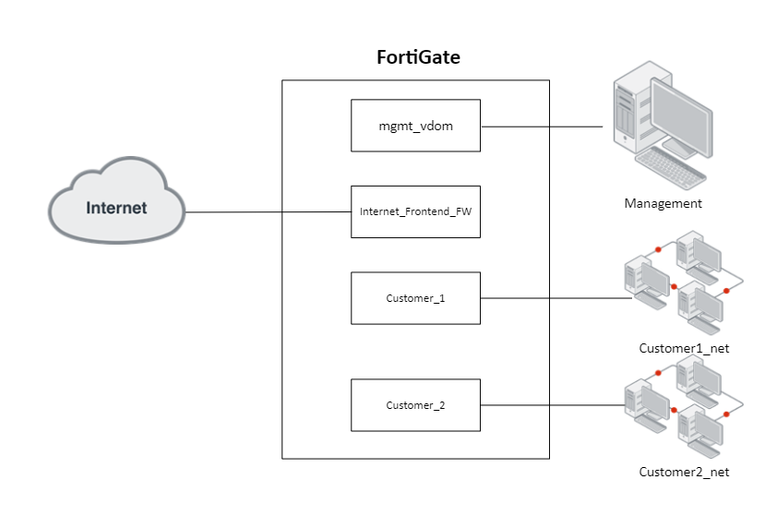

For the purpose of this example, only 'Internet_Frontend_FW' VDOM has internet access.

Fortigate_VM (global) # show

# config system global

set admin-https-redirect disable

set admin-server-cert "self-sign"

set admintimeout 480

set alias "FGVM01TM21000517"

set hostname "Fortigate_VM"

set lldp-transmission enable

set management-port-use-admin-sport disable

set management-vdom "mgmt_vdom"

set timezone 28

end

Fortigate_VM (fortiguard) # show

# config system fortiguard

set fortiguard-anycast disable

set protocol udp

set port 8888

set update-server-location usa

set vdom "root"

set sdns-server-ip "208.91.112.220" "99.83.179.12" "45.75.200.89"

end

Syntaxis:

config global

config system fortiguard

set vdom Internet_Frontend_FW

end
