Technical Tip: How to show packet capture

[kwcheng__FTNT]

Description

This article describes how to show 'Packet Capture' under Log & Report -> Sniffer Traffic.

Scope

FortiGate.

Solution

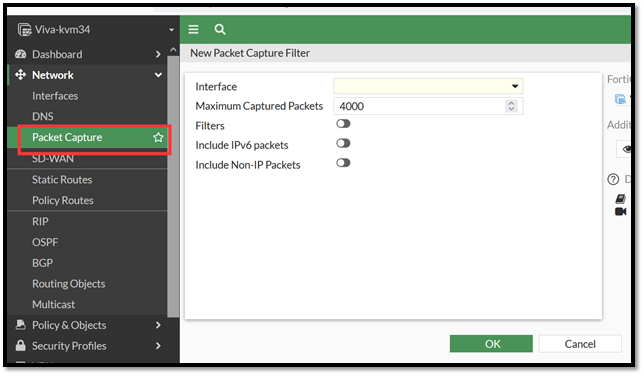

Create a new packet capture filter under: Network -> Packet Capture and select 'New'.

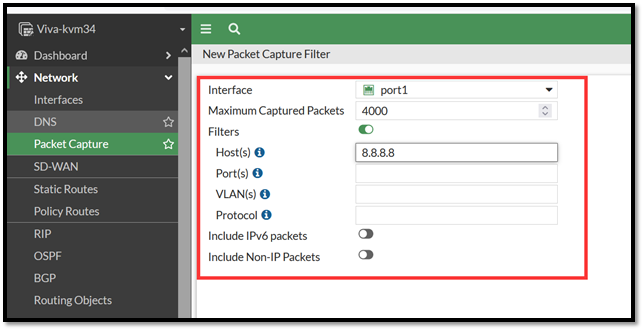

2. Put the appropriate filter on the traffic to be captured and select 'Start'.

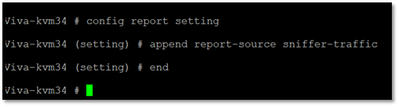

3. (Optional) Login to FortiGate via SSH and execute the following command:

# config report setting

    append report-source sniffer-traffic

end

This command will allow the packet capture to be used when querying data from a FortiView widget. It is not required to save the capture.
See more details here:  Enabling FortiView from devices.

4. Run the traffic on a client and wait the packet capture to complete and the log is saved on the FortiGate under Log & Report -> Sniffer Traffic.



Important notes:

Local disk is required in order to work, as it relies on the FortiView function.
