Technical Tip: How to decrypt SNMPv3 packets

Anonymous · ‎07-13-2023

Description

This article describes how to decrypt SNMPv3 packets.

Scope

FortiGate.

Solution

Start packet capture in Network -> Packet Capture.
Stop packet capture and download the file.
Open the downloaded PCAP file on Wireshark.
Gather the required parameters for decryption
a) Engine ID:

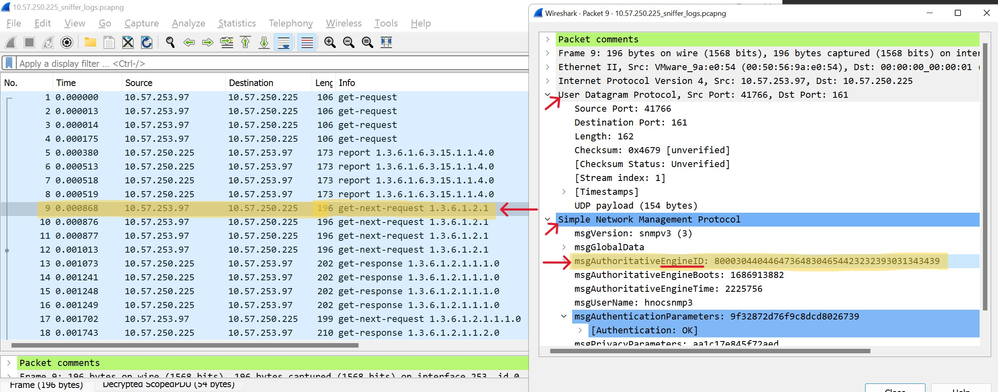

View the SNMP header to get the Engine ID.

b) Username.
c) Authentication model (Authentication Algorithm).
d) Password (Password set for Authentication).
e) Privacy protocol (Encryption Algorithm).
f) Privacy password (Password set for Encryption).

In FortiGate GUI: go to System -> SNMP -> SNMPv3, edit the required entry and view the details.

Note:

The password will be encrypted if an unknown reset/change the same.

In FortiGate CLI:

show full-configuration system snmp user

Sample output:

config system snmp user

edit "smpv3" <----- Username.

set status enable

set trap-status enable

set trap-lport 162

set trap-rport 162

set queries enable

set query-port 161

set notify-hosts 10.170.7.232

set source-ip 0.0.0.0

set source-ipv6 ::

set ha-direct disable

set events cpu-high

set mib-view ''

set security-level auth-priv

set auth-proto sha <----- Authentication model.

set auth-pwd ENC <----- Password will be encrypted, if unknown reset the same.

set priv-proto aes <----- Privacy protocol.

set priv-pwd ENC <----- Password will be encrypted, if unknown reset the same.

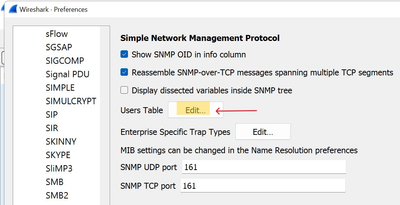

In Wireshark, Go to Edit -> Preferences -> Protocols.

2. Select SNMP from the protocol list.

3. Edit Users Table.

4. Select '+' on bottom left corner to add a new entry.

5. Enter the parameters collected into respective fields, and Select 'OK' to save.

Sample output before decryption:

Sample output after decryption:
