Technical Tip: How to configure an internal IPv6 threat feed server

[sbabu]

Description	This article describes how to configure an external IPv6 threat feed server.
Scope	FortiGate and internal threat feed server.

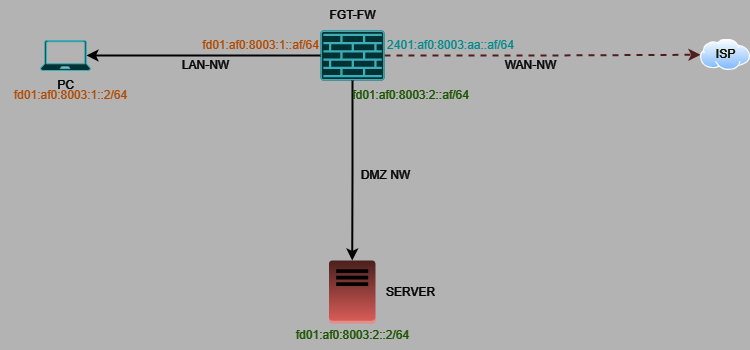

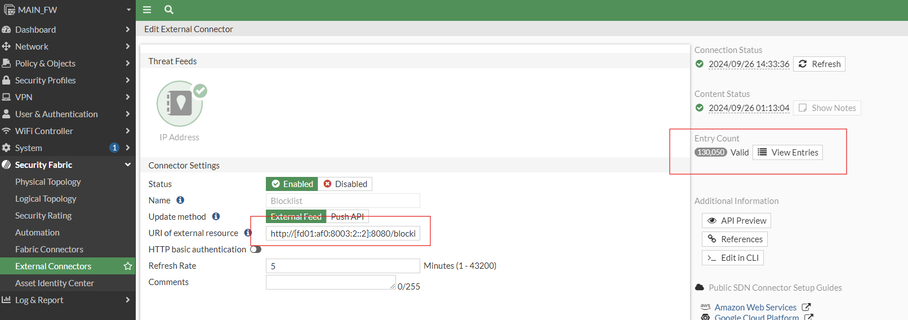

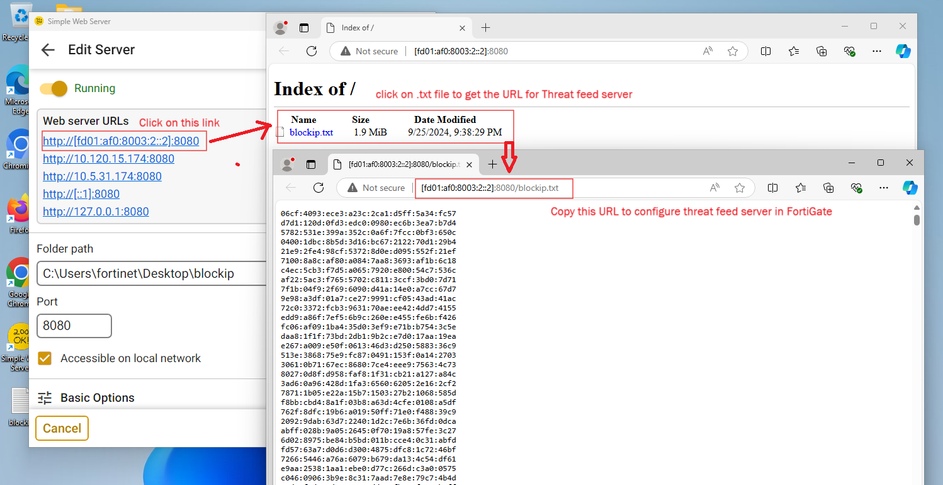

Solution	A Threat feed server provides a continuous stream of data about potential and current cyber threats such as malware, phishing attacks, Vulnerabilities, and compromised IP addresses from various sources. An Internal threat feed server empowers organizations' cybersecurity by providing real-time insights into potential cyber threats. Topology: Configuration:  Check the connectivity from the FortiGate to the IPv6 Threat feed server by executing the below commands: MAIN_FW # exec ping6-options source6 fd01:af0:8003:2::af MAIN_FW # exec ping6 fd01:af0:8003:2::2 PING fd01:af0:8003:2::2(fd01:af0:8003:2::2) from fd01:af0:8003:2::af : 56 data bytes 64 bytes from fd01:af0:8003:2::2: icmp_seq=1 ttl=128 time=2.54 ms 64 bytes from fd01:af0:8003:2::2: icmp_seq=2 ttl=128 time=1.30 ms Install a simple web server for threat feed server replication. Once installed, the threat feed server stores the threat feed database in text format, saves the file in a folder, and notes the IP address and port number where the server is listening. Select the IPv6 link to access the folder in the web browser. Then select the .txt file to get the URL path. Configure a Threat feed server in FortiGate under External Connector. Select 'Create new', select the IP address in the Threat feed category, and paste the URL as shown in the screenshot below. Once configured, wait some time to fetch the entries from the Threat feed server.  Configure a policy to block the threat feed database traffic: MAIN_FW (1) # show     config firewall policy         edit 1             set name "test"             set uuid 6feba752-7be8-51ef-ca40-6c7b43598ea5             set srcintf "port4"             set dstintf "port1"             set srcaddr6 "all"             set dstaddr6 "Blocklist"             set schedule "always"             set service "ALL"             set logtraffic all         next     end If the threat feed is not connecting, check the route toward the server and collect the logs below. Putty session 1: get router info6 routing details <server IP address>  exec ping6 <server IP address> Putty session 2: diag debug reset diag debug console timestamp enable diag debug application forticron 0xf00 diag debug enable
