| Description | This article describes how to configure an EMAC VLAN in the VDOM setup to reach the internet using the single default gateway. |
| Scope | FortiOS. |
| Solution |

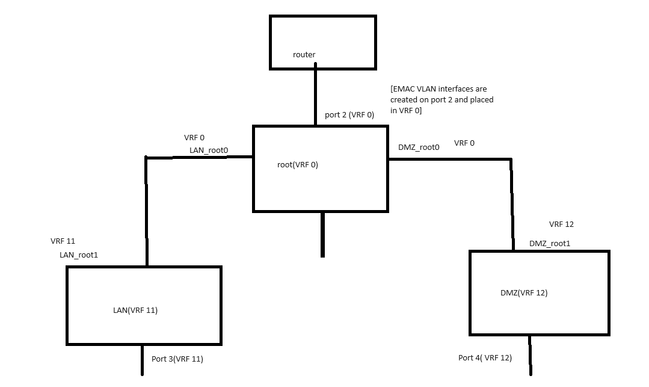

To achieve the configuration, the given topology is referred to:
This scenario is useful in the case of multi-tenant VDOMs where there will be very limited public IP addresses like /29 subnets, in these cases, it is possible to block a public IP subnet and configure the EMAC VLAN interfaces over the physical interfaces.
EMAC VLAN interfaces are the virtual interface which has a unique MAC address than the parent interfaces, unlike the VLAN interfaces.
As a result, it is possible to make the individual vdoms talk to the internet with the help of EMAC vlans, meaning a single gateway sufficient to reach the internet from all the VDOMs.
For lab purposes, private IPs were used in this example (see How to configure inter-vdom links).
To achieve the configuration, port2 will be configured with a /20 subnet just for illustration purposes.
As a first step, create two EMAC VLAN interfaces on port 2, place them in VRF 0, and the respective VDOMs.
In the global VDOM:

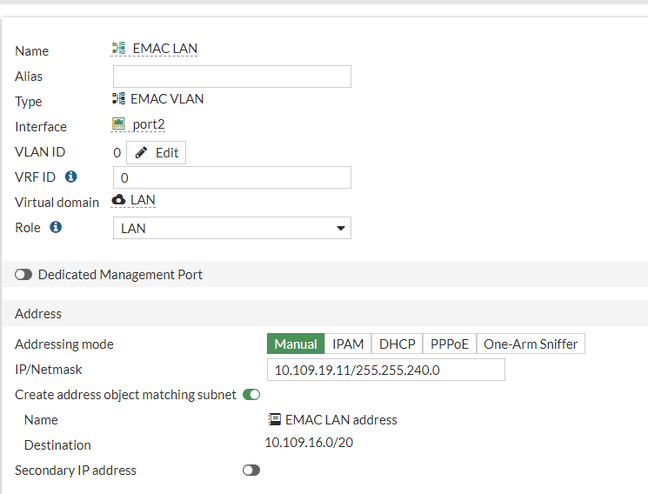

Create EMAC VLAN interfaces by navigating to Network -> Interfaces -> Create new -> Set the name to EMAC LAN -> Change the type to EMAC VLAN and place it in LAN VDOM and VRF 0, then assign the IP address in the range of port 2.
Similarly, follow the same steps for another EMAC VLAN -> EMAC DMZ and place it in the DMZ VDOM.

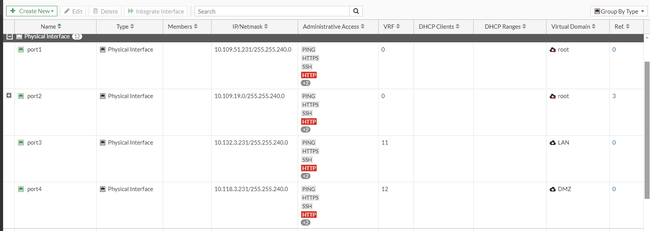

Once the interfaces are configured, it should look similar to this:
On the VDOMs:

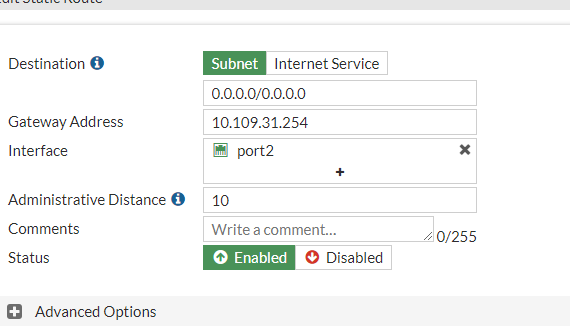

After finishing these steps, configure the default route on the root VDOM with a gateway from port2. For testing, 10.109.31.254 was used as the gateway.

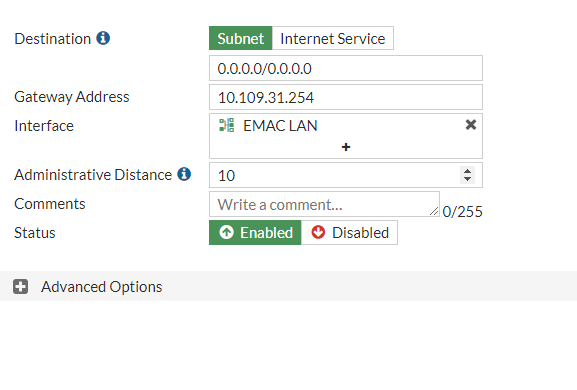

On the LAN VDOM, configure the static route pointing towards the EMAC VLAN interface with the same default gateway.

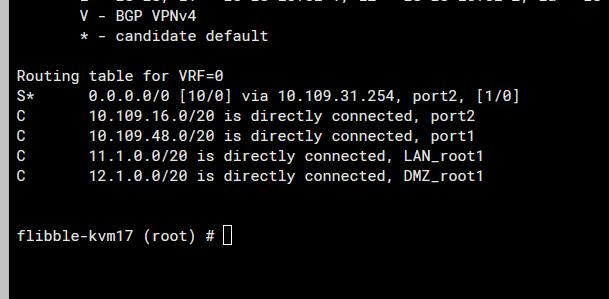

Follow the same for the DMZ VDOM. After these steps, the routing table on the root VDOM should look like the following, and it should be possible to reach the internet:

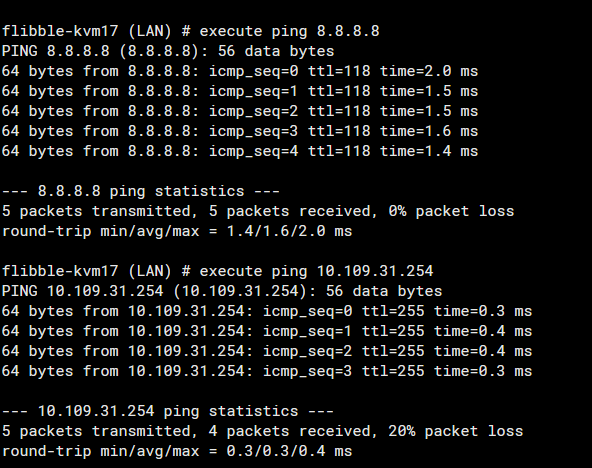

On the LAN VDOM routing table and results with route leaking, the routing table can be seen for VRF 0 and 11:

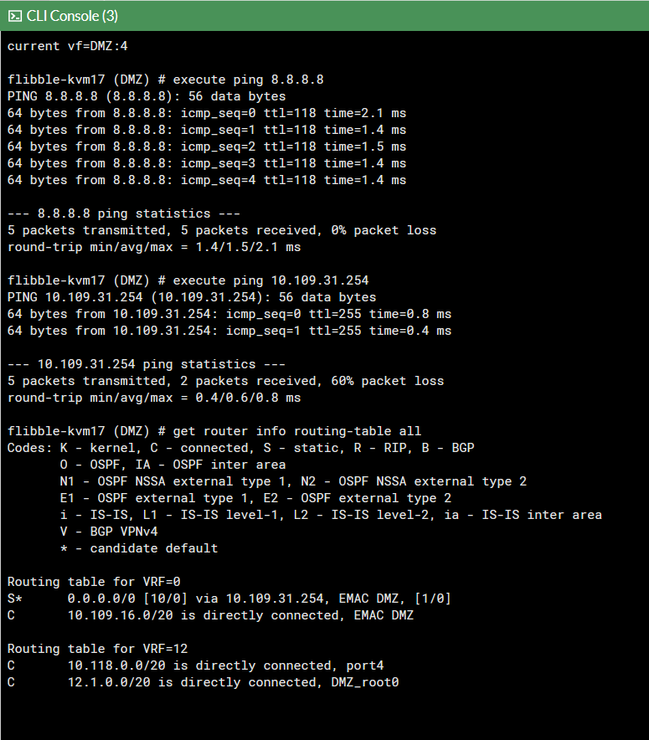

Results on DMZ route leaking:
Refer to the following documents for more details on route leaking and EMAC VLANs: |
