To configure the IPSec dial-up tunnel the following KB articles can be followed:
Option 1:
Once configured, check if the VPN server is assigning the correct client address through the remote access tunnel by using the steps outlined in Technical Tip: Understanding IPsec (iked) debug logs.
In the debug field, the following sample reports will appear for IPv4/IPv6 address and DNS assignment for the remote VPN client according to the client address configuration.
IPv4:
2025-02-27 14:29:44.434149 ike 0:VPN_1:2731: processed INITIAL-CONTACT
2025-02-27 14:29:44.434167 ike 0:VPN_1:2731: mode-cfg assigned (1) IPv4 address 10.144.113.10
2025-02-27 14:29:44.434169 ike 0:VPN_1:2731: mode-cfg assigned (2) IPv4 netmask 255.255.255.255
2025-02-27 14:29:44.434173 ike 0:VPN_1:2731: mode-cfg send (13) 0:10.0.50.6/255.255.255.255:0
2025-02-27 14:29:44.434175 ike 0:VPN_1:2731: mode-cfg send (13) 0:217.173.195.70/255.255.255.255:0
2025-02-27 14:29:44.434177 ike 0:VPN_1:2731: mode-cfg send (13) 0:10.0.50.101/255.255.255.255:0
2025-02-27 14:29:44.434179 ike 0:VPN_1:2731: mode-cfg send (13) 0:10.0.50.102/255.255.255.255:0
2025-02-27 14:29:44.434183 ike 0:VPN_1:2731: mode-cfg send (3) IPv4 DNS(1) 10.0.66.131
2025-02-27 14:29:44.434184 ike 0:VPN_1:2731: mode-cfg send (3) IPv4 DNS(2) 10.0.66.132
IPv6:
2025-02-27 14:29:44.434186 ike 0:VPN_1:2731: mode-cfg assigned (8) IPv6 address
2a03:9330:1:9113::10/128
2025-02-27 14:29:44.434190 ike 0:VPN_1:2731: mode-cfg send INTERNAL_IP6_SUBNET 0:2a03:9330:1:20::70/128:0
2025-02-27 14:29:44.434192 ike 0:VPN_1:2731: mode-cfg send INTERNAL_IP6_SUBNET 0:2a03:9330:1:50::6/128:0
2025-02-27 14:29:44.434194 ike 0:VPN_1:2731: mode-cfg send INTERNAL_IP6_SUBNET 0:2a03:9330:1:50::101/128:0
2025-02-27 14:29:44.434196 ike 0:VPN_1:2731: mode-cfg send INTERNAL_IP6_SUBNET 0:2a03:9330:1:50::102/128:0
2025-02-27 14:29:44.434198 ike 0:VPN_1:2731: mode-cfg send (10) IPv6 DNS(1) 2a03:9330:1:50::121
2025-02-27 14:29:44.434200 ike 0:VPN_1:2731: mode-cfg send (10) IPv6 DNS(2) 2a03:9330:1:50::122
If the tunnel is being configured for the FortiClient and the client does not receive the IPv6, follow the steps outlined in Technical Tip: Not receiving an IPv6 address from Dialup IPsec tunnel on FortiClient.
Option 2:

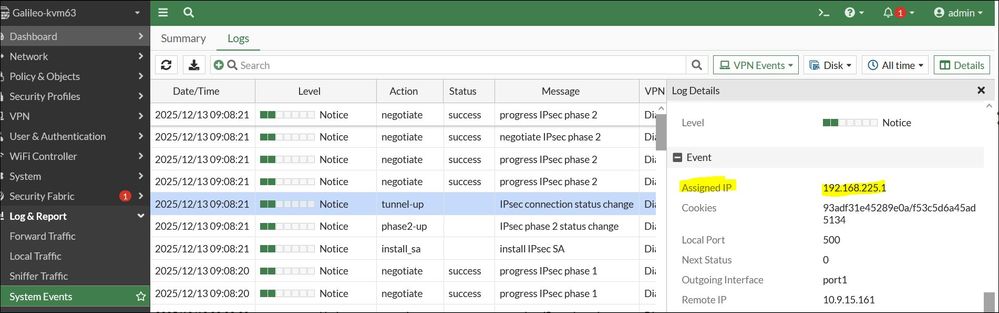

Under Log & Report -> System Events -> VPN Events, apply a filter and set 'Remote IP' to the user's public IP address, then look for 'Assigned IP' in the tunnel-up log.
Option 3:
Another option to have the user and the IP address assigned to the tunnel is to run the following commands:
For IKEv1:
FGT# get vpn ike gateway | grep "xauth-user\|assigned"
xauth-user: guest
assigned IP address: 192.168.225.1/255.255.255.255
For IKEv2:
FGT # get vpn ike gateway | grep "eap-user\|assigned"
eap-user: guest
assigned IP address: 192.168.225.1/255.255.255.255
|
