Technical Tip: How to check Azure the inherited (nested) groups for SAML login

[ChrisTan]

Description	This article describes how to identify Azure SAML groups when the portal displays fewer than 150 groups but authentication still fails.
Scope	FortiGate, Azure SAML Authentication.

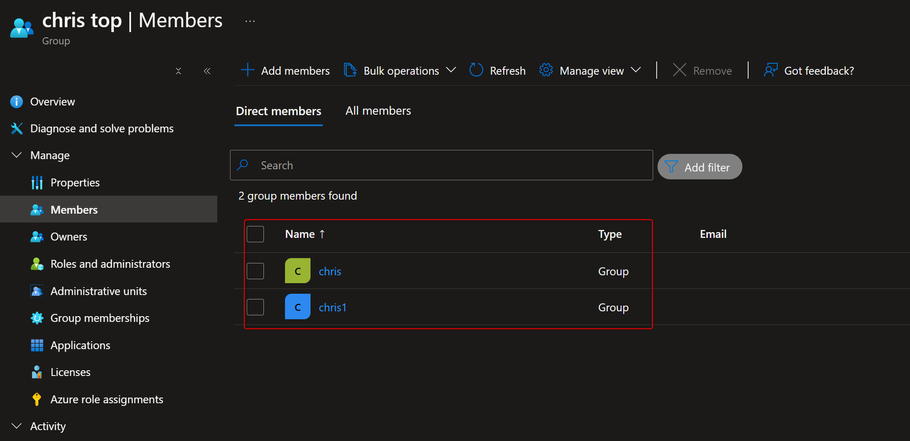

Solution	In some cases, the user groups displayed in the Azure portal do not align with those listed in SAML Authentication. This discrepancy occurs because the Azure portal does not display inherited (nested) groups. From the SAML debug log, there are five groups in the SAML assertion: samld_send_common_reply [95]: Attr: 10, 108, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/groups' '8724203f-b372-4648-b9ae-8254d36cf736' samld_send_common_reply [95]: Attr: 10, 108, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/groups' 'a425fb5d-8c25-4af2-bcf2-e59b349f17d8' samld_send_common_reply [95]: Attr: 10, 108, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/groups' '3ad24389-a0ed-47a7-ab0f-bf71573f51b6' samld_send_common_reply [95]: Attr: 10, 108, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/groups' 'f055bcad-8a59-4e71-a827-88ecebc45a27' samld_send_common_reply [95]: Attr: 10, 108, 'http://schemas.microsoft.com/ws/2008/06/identity/claims/groups' 'bdc357d3-d318-4132-8a86-8f88bab5b4fa' For example, the group 'chris top' may include two nested groups, 'chris' and 'chris1', but does not directly contain any users. As a result, the nested group memberships may not appear in the Azure portal but are still included in the SAML assertion. To verify the total groups, including inherited ones, use the following commands in the Azure Cloud Shell: Count the total groups (including nested groups): az ad user get-member-groups --id "<user-object-id>" --query "length(@)" -o tsv List all groups the user belongs to: az ad user get-member-groups --id "<user-object-id>" View detailed information for a specific group (by Group Object ID): az ad group show --id "<group-object-id>" These commands allow the retrieval of accurate group membership information, including nested groups, that may not be visible in the Azure portal. Related article: Technical Tip: Understanding the limitation of 150 assertions from Microsoft Azure as SAML IdP that ...
