Blocking traceroute (when it uses ICMP instead of UDP) using a service object with a firewall policy while allowing ping is not achievable hence an App Control is needed.

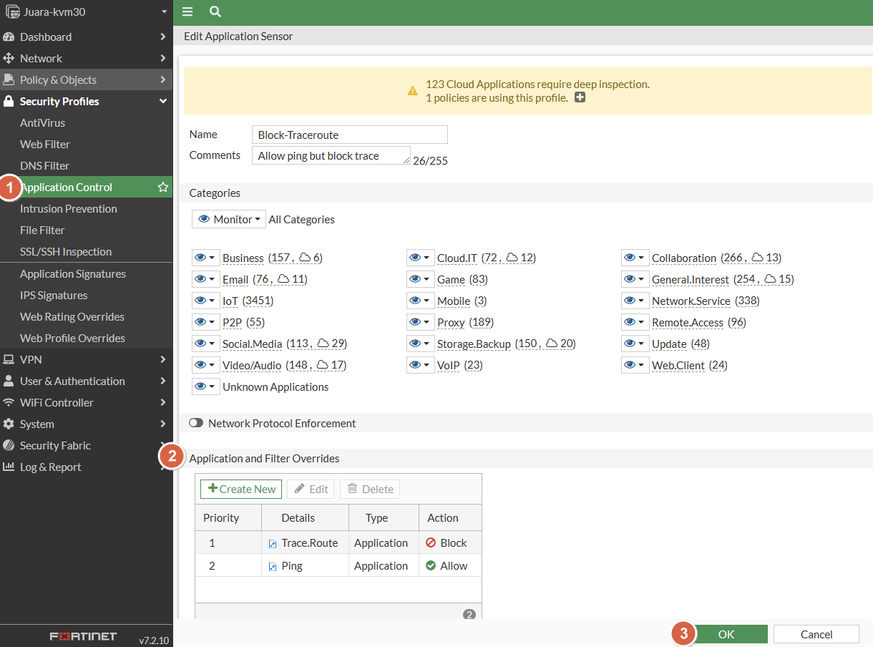

- Create application profile that will allow traceroute and block ping:
In CLI:
config application list
edit "Block-Traceroute"
set comment "Allow ping but block trace"
set other-application-log enable
set unknown-application-log enable
config entries
edit 1
set application 32304
set log disable
next
edit 2
set application 24466
set action pass
set log disable
next
end
next
end

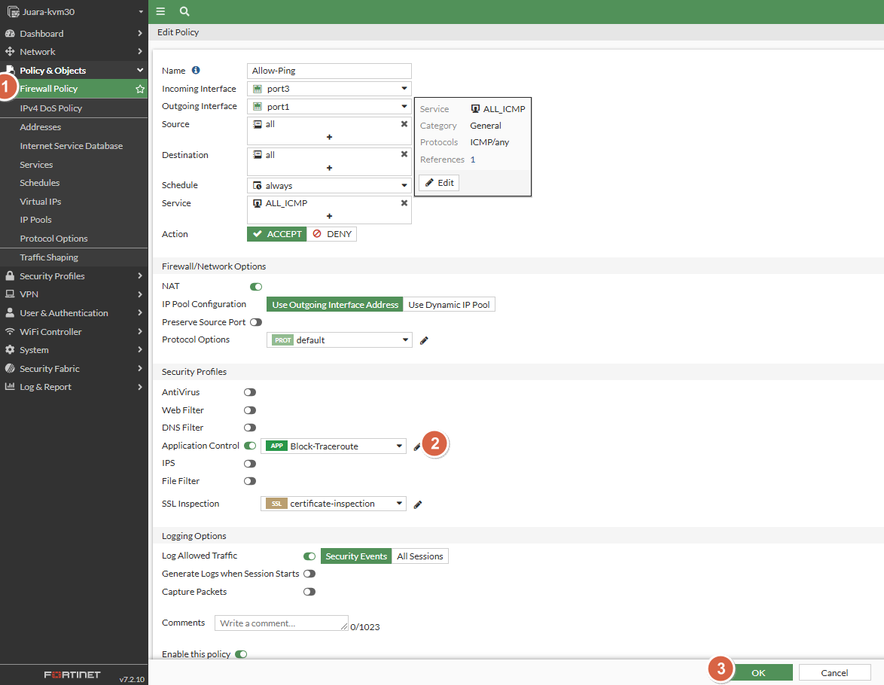

- Create a firewall policy and reference the app control profile created from step 1:
config firewall policy
edit 1
set name "Allow-Ping"
set srcintf "port3"
set dstintf "port1"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL_ICMP"
set utm-status enable
set ssl-ssh-profile "certificate-inspection"
set application-list "Block-Traceroute"
set nat enable
next
end
Debugging and verification:
Juara-kvm30 # diagnose ips debug enable all
Juara-kvm30 # diagnose debug enable
Juara-kvm30 # diagnose debug console timestamp enable
Juara-kvm30 # 2024-11-20 10:45:11 [2409@-1]ips_run_packet_prepare: got a packet, id=0, size=60
Juara-kvm30 # 2024-11-20 10:59:05 [2485@-1]ips_run_packet_prepare: got a packet, id=39, size=60
2024-11-20 10:59:05 [2485@-1]ips_process_event: ctx 0: 5 => 0
2024-11-20 10:59:05
PACKET id:39 len:60 vf:0 vrf:0 fw:1 view:3 derived:0 encap:0 log:(traffic:0 pre:1 post:0)
imp2p:0x0 proxy:0x0 features:0x4 flowutm:1 input:raw
10.129.3.71 -> 9.9.9.9 protocol:1
IP length:60b, header:20b, ttl:127, tos:0, id:27749
ICMP payload:32b, type:8, code:0
2024-11-20 10:59:05 [2485@-1]ips_run_decode: ips_pkt_id: 39
2024-11-20 10:59:05 0000 45 00 00 3C 6C 65 00 00 7F 01 AF 82 0A 81 03 47 E..<le.........G
2024-11-20 10:59:05 0010 09 09 09 09 08 00 4D 24 00 01 00 37 61 62 63 64 ......M$...7abcd
2024-11-20 10:59:05 0020 65 66 67 68 69 6A 6B 6C 6D 6E 6F 70 71 72 73 74 efghijklmnopqrst
2024-11-20 10:59:05 0030 75 76 77 61 62 63 64 65 66 67 68 69 uvwabcdefghi
2024-11-20 10:59:05
2024-11-20 10:59:05 [2485@-1]ips_run_session_verdict_check: can't find session
2024-11-20 10:59:05 [2485@-1]ips_create_session: enter
2024-11-20 10:59:05 [2485@-1]ips_create_session: set ignore_app_after_size from 204800 to 2048 by dependencies of 0 Root
2024-11-20 10:59:05 [2485@9]ips_dsct_icmp_processor: serial=7883 ICMP session created
2024-11-20 10:59:05 [2485@9]ips_dsct_session_loop: serial=7883 ignore dissectors
2024-11-20 10:59:05 [2485@9]ips_process_event: ctx 0: 0 => 1
2024-11-20 10:59:05 [2485@9]ips_process_event: ctx 0: 1 => 1
2024-11-20 10:59:05 [2485@9]ips_process_event: ctx 0: 1 => 1
2024-11-20 10:59:05 [2485@9]ipsa_adapter_search_prepare: IPSA search is not enabled.!
2024-11-20 10:59:05 [2485@9]ips_process_event: ctx 0: 1 => 2
2024-11-20 10:59:05 [2485@9]ips_process_event: ctx 0: 2 => 4
2024-11-20 10:59:05 [2485@9]ips_match_rule: pattern matched 24466,23608: Ping
2024-11-20 10:59:05 [2485@9]ips_match_rule: matched rule 24466 23608 Ping (weight:5)
2024-11-20 10:59:05 [2485@9]ips_match_candidates: set best rule 24466 23608 Ping
2024-11-20 10:59:05 [2485@9]ips_set_pkt_verdict: action=PASS
2024-11-20 10:59:05 [2485@9]ips_report_alert_va_internal: v_id=24466, a_id=23608, log=0, log_pkt=0
2024-11-20 10:59:05 [2485@9]ips_log: id=24466 conf=0xc5, action=0
2024-11-20 10:59:05 [2485@9]ips_process_event: ctx 0: 4 => 3
2024-11-20 10:59:05 [2485@9]ips_handle_pkt_verdict: pass a packet, size=60
2024-11-20 10:59:05 [2485@9]ips_process_event: ctx 0: 3 => 5
2024-11-20 10:59:05 [2485@-1]ips_run_packet_prepare: got a packet, id=40, size=60
2024-11-20 10:59:05 [2485@-1]ips_process_event: ctx 0: 5 => 0
PACKET id:41 len:92 vf:0 vrf:0 fw:1 view:3 derived:0 encap:0 log:(traffic:0 pre:1 post:0)
imp2p:0x0 proxy:0x0 features:0x4 flowutm:1 input:raw
10.129.3.71 -> 9.9.9.9 protocol:1
IP length:92b, header:20b, ttl:1, tos:0, id:27753
ICMP payload:64b, type:8, code:0
2024-11-20 10:59:30 [2485@-1]ips_run_decode: ips_pkt_id: 41
2024-11-20 10:59:30 0000 45 00 00 5C 6C 69 00 00 01 01 2D 5F 0A 81 03 47 E..\li....-_...G
2024-11-20 10:59:30 0010 09 09 09 09 08 00 F7 C3 00 01 00 3B 00 00 00 00 ...........;....
2024-11-20 10:59:30 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
2024-11-20 10:59:30 0030 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
2024-11-20 10:59:30 0040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
2024-11-20 10:59:30 0050 00 00 00 00 00 00 00 00 00 00 00 00 ............
2024-11-20 10:59:30
2024-11-20 10:59:30 [2485@-1]ips_run_session_verdict_check: can't find session
2024-11-20 10:59:30 [2485@-1]ips_create_session: enter
2024-11-20 10:59:30 [2485@-1]ips_create_session: set ignore_app_after_size from 204800 to 2048 by dependencies of 0 Root
2024-11-20 10:59:30 [2485@10]ips_dsct_icmp_processor: serial=7883 ICMP session created
2024-11-20 10:59:30 [2485@10]ips_dsct_session_loop: serial=7883 ignore dissectors
2024-11-20 10:59:30 [2485@10]ips_process_event: ctx 0: 0 => 1
2024-11-20 10:59:30 [2485@10]ips_process_event: ctx 0: 1 => 1
2024-11-20 10:59:30 [2485@10]ips_process_event: ctx 0: 1 => 1
2024-11-20 10:59:30 [2485@10]ipsa_adapter_search_prepare: IPSA search is not enabled.!
2024-11-20 10:59:30 [2485@10]ips_process_event: ctx 0: 1 => 2
2024-11-20 10:59:30 [2485@10]ips_process_event: ctx 0: 2 => 4
2024-11-20 10:59:30 [2485@10]ips_match_rule: pattern matched 32304,34215: Trace.Route
2024-11-20 10:59:30 [2485@10]ips_match_rule: matched rule 32304 34215 Trace.Route (weight:10)
2024-11-20 10:59:30 [2485@10]ips_match_candidates: set best rule 32304 34215 Trace.Route
2024-11-20 10:59:30 [2485@10]ips_set_pkt_verdict: action=DROP
2024-11-20 10:59:30 [2485@10]ips_report_alert_va_internal: v_id=32304, a_id=34215, log=0, log_pkt=0
2024-11-20 10:59:30 [2485@10]ips_log: id=32304 conf=0xc5, action=1
2024-11-20 10:59:30 [2485@10]match_app: disarm ftgd queries when request is to be blocked.
2024-11-20 10:59:30 [2485@10]ips_process_event: ctx 0: 4 => 3
2024-11-20 10:59:30 [2485@10]ips_handle_pkt_verdict: drop a packet, size=92
2024-11-20 10:59:30 [2485@10]ips_process_event: ctx 0: 3 => 5
2024-11-20 10:59:34 [2485@-1]ips_run_packet_prepare: got a packet, id=42, size=92
2024-11-20 10:59:34 [2485@-1]ips_process_event: ctx 0: 5 => 0

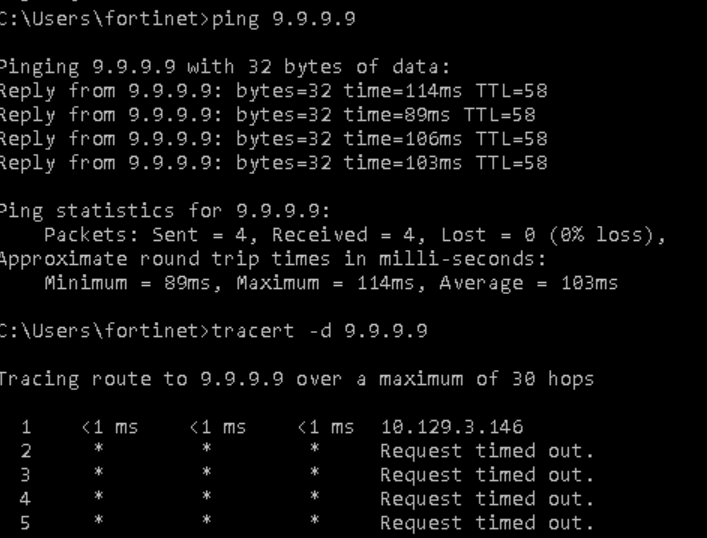

Note:
The first hop is showing as the traffic is treated as local by the FortiGate, use interface firewall policy to hide the FortiGate IP address from showing in the traceroute: Technical Tip: Hiding FortiGate interface IP in trace route result when in NAT mode
|
