| Solution |
The Certificate Warning can be avoided using the procedure mentioned below, only for the HTTP to HTTPS Redirection Authentication Traffic. For this, use the same *.example.com wildcard certificate, which is in the Local Certificate Store. This example follows all the steps required to create and install a local certificate on the FortiGate unit, without using CA software.
To generate a certificate request on the FortiGate unit - web-based manager:
- Go to System -> Certificates -> Local Certificates.
- Select Generate.
- In the Certificate Name field, enter 'FGT'.
Note:
Do not include spaces in the certificate name. This will ensure the compatibility of a signed certificate as a PKCS12 file to be exported later on if required. Since the IP address is private, use the FQDN instead.
- Select Domain Name, and enter fgt.example.com.
- Enter values in the Optional Information area to further identify the FortiGate.
- Organization Unit - Support.
- Organization - Example.com.
- Locality (City) - Bangalore.
- State/Province - Karnataka.
- Country - INDIA.
- E-mail - fgt@example.com.
- From the Key Size list, select 2048 Bit or the most secure option available.
- In the Enrollment Method, select File-Based to generate the certificate request.
- Select OK. The request is generated and displayed in the Local Certificates list with a status of PENDING.
- Select the Download button to download the request to the management computer.
- In the File Download dialog box, select Save and save the Certificate Signing Request on the local file system of the management computer.
- Name the file and save it on the local file system of the management computer.
Note:

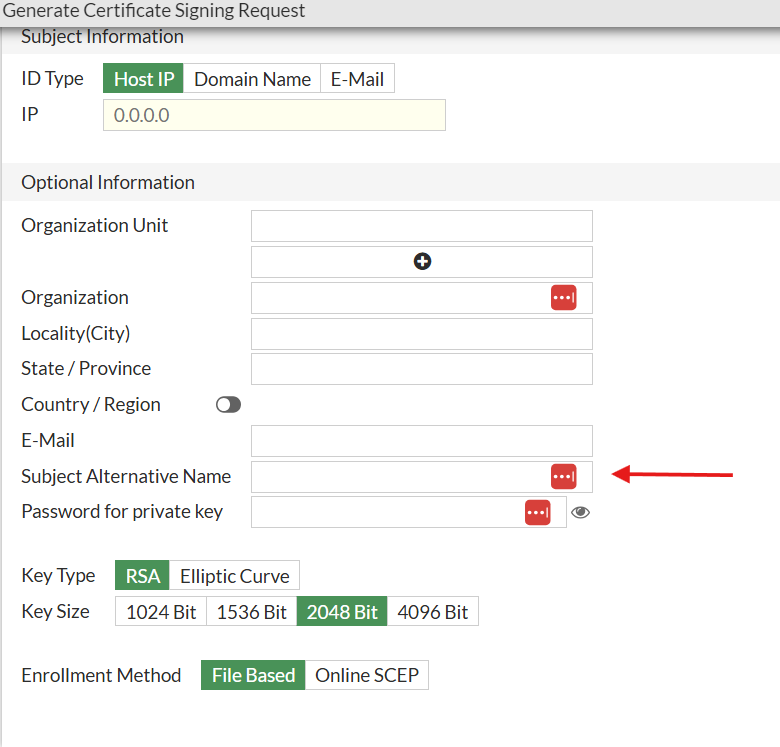

In case using an IP address instead of a FQDN, make sure to include that in the 'Subject Alternative Name' field.
Import the SSL certificate into FortiOS and assign it to admin access:
- Go to System -> Certificates -> Local Certificates.
- Select Import -> Local Certificate and choose the certificate file.
- Select OK.
- To assign the certificate for admin access, navigate System -> Settings -> Administration Settings -> HTTPS server certificate.
In the browser on PC:
- Add the CA certificate to the browser.
- When accessing FortiGate using HTTPS with a domain name (https://fgt.example.com), the users will get the login prompt without a certificate error.
- Avoid the Certificate Warning using the procedure mentioned below only for the HTTP to HTTPS Redirection Authentication Traffic. For this, use the same *.example.com wildcard certificate, which is in the Local Certificate Store.
- When identity-based authentication is enabled, when users access HTTPS sites, FortiGate will redirect to https://fgt.example.com:1003 without Certificate Warning.
Note:
Starting from FortiOS v7.2.1, the FortiGate now utilizes the Fortinet_GUI_Server certificate for HTTPS administrative access, which is generated and signed by the built-in Fortinet_CA_SSL certificate. More information can be seen on New default certificate for HTTPS administrative access.
Additional Note:
In some instances, despite the Fortinet_GUI_Server certificate being imported to the administrator's Windows Trusted Root CA store, the FortiGate login page may still show up as 'Not secure'. From Fortinet_GUI_Server certificate being the default HTTPS GUI certificate, try to change it to a different certificate (for example, Fortinet_Factory), then revert it to the original (Fortinet_GUI_Server). More information in this article: Technical Tip: Getting 'Not Secure' warning despite importing Fortinet_GUI_Server certificate for GU....
config system global
set admin-server-cert Fortinet_Factory
end
config system global
set admin-server-cert Fortinet_GUI_Server
end
Related article:
Technical Tip: Certificate Error in Admin Access
|
