Technical Tip: Blocking a failed IPsec VPN login using the automation stitch

parthpatel · ‎08-14-2024

Description

This article describes how to set up automation to block invalid login attempts for an IPsec dialup tunnel with an automation stitch.

Scope

FortiGate.

Solution

To block the invalid login attempts on IPsec dialup tunnel, check for VPN events with result = XAUTH failure:

If there are multiple XAUTH failure events for unknown IP addresses, an automation stitch can be configured to further block these attempts.

Create an address Group to store all the blacklisted IPs for blocking: go to Policy & Objects -> Addresses and create a new address group.

To configure this in the CLI, run the following:

config firewall addrgrp
edit VPN_Failed_Login
end

Create the automation trigger.

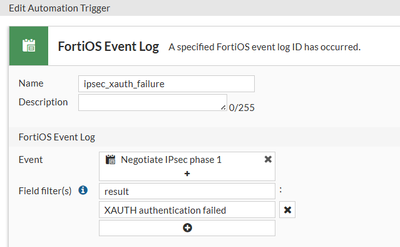

Go to Security Fabric -> Automation -> Trigger -> Create new.

To ensure the correct event is parsed, field filters can be used to narrow down the logs to only XAUTH failures, as 'Negotiate IPsec phase 1' is a generic event log that could be generated in multiple different scenarios.

To configure this in the CLI, run the following:

config system automation-trigger
edit "ipsec_xauth_failure"

set event-type event-log

set logid 37121

config fields

edit 1

set name "result"

set value "XAUTH authentication failed"

Create the automation action: go to Security Fabric -> Automation -> Action -> Create new and select CLI script.

Set up an automation action with the following CLI script to add the remote IP to a blacklist group.

To configure this in the CLI:

config system automation-action

edit "Block remote IP"

set action-type cli-script

set script "config firewall address

edit IP-Block-%%log.remip%%

set color 6

set subnet %%log.remip%%/32

end

config firewall addrgrp

edit VPN_Failed_Login

append member IP-Block-%%log.remip%%

end"

set accprofile "super_admin"

Note:

If the FortiGate has multi-VDOM enabled, the script also needs to specify the VDOM that the Address Group and IPsec are located in.

Create the automation stitch.

Go to Security Fabric -> Automation -> Stitch -> Create new. Select the trigger and action that were created in the previous steps.

To configure this in the CLI:

config system automation-stitch

edit "Block IPsec malicious IP"

set trigger "ipsec_xauth_failure"

config actions

edit 1

set action "Block remote IP"

set required enable

Create the local-in-policy.

The local-in policy (which filters incoming traffic destined for the FortiGate itself) denies traffic sourced from the specified Address Group.

config firewall local-in-policy

edit 1

         set intf <wan Listening interface> <----- The interface under IPSec VPN settings.
set srcaddr " VPN_Failed_Login"
         set srcaddr-negate disable
         set dstaddr "all"
         set dstaddr-negate disable
         set action deny
         set service "IKE"
         set service-negate disable
         set schedule "always"
         set status enable

Note:

If the connection is from a legitimate user who entered the wrong password, the user's IP will need to be manually removed from the group in order to allow them to reconnect.
