Technical Tip: Block upload or download of PDF files larger than a specific size using DLP

[mgoswami]

Description	This article describes how to block PDF files larger than a specific size from being uploaded or downloaded by using DLP (Data Leak Prevention).
Scope	FortiGate v7.2.

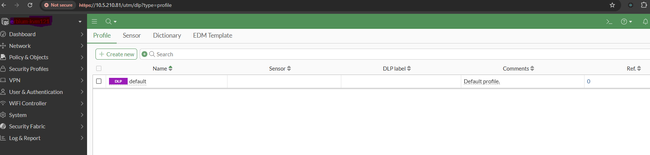

Solution	Data Leak Prevention is not enabled by default. It has to be enabled from the Feature Visibility under Settings. Once this is enabled, the DLP feature would be visible under Security Profiles. The File-pattern for PDF has to be created first. config dlp filepattern     edit 10         set name "block-pdf"         set comment ''             config entries                 edit "pdf"                     set filter-type type                     set file-type pdf <----- Check for the available file type using 'set file-type ?'.                 next             end         next     end Configure the DLP Profile: config dlp profile     edit "profile-case3_pdf"         set feature-set proxy             config rule                 edit 1                     set name "Block-file-pdf-5MB"                     set proto smtp pop3 imap http-get http-post ftp nntp cifs  <----- Add the protos to be blocked.                     set file-size 5000 <----- Specify the size in KB to be blocked                     set file-type 10   <----- This is the file pattern type created above for the PDF.                     set action block                next              end         next     end Add the DLP profile 'profile-case3_pdf' to the Policy: config firewall policy     edit 1         set status enable         set name "Test"         set srcintf "LAN"           set dstintf "WAN"         set action accept         set schedule "always"         set service "ALL"         set utm-status enable         set inspection-mode proxy         set ssl-ssh-profile "deep-inspection"   <----- Ensure that the policy is in the deep inspection.         set dlp-profile "profile-case3_pdf"     next end To view the logs, go to Log & Report -> Security Events -> DLP. Sample log for the above configuration: date=2023-05-01 time=08:17:22 eventtime=1682921842747701607 tz="+0200" logid="0954024576" type="utm" subtype="dlp" eventtype="dlp" level="warning" vd="root" filteridx=1 filtername="Block-file-pdf-5MB" dlpextra="block-pdf;5000 kB" filtertype="none" filtercat="file" severity="medium" policyid=1 srcintf="LAN"  dstport=443 dstintf="WAN" proto=6 service="HTTPS" filetype="pdf" direction="incoming" action="block" hostname="jsoncompare.org" url="https://jsoncompare.org/LearningContainer/SampleFiles/PDF/sample-pdf-download-10-mb.pdf" httpmethod="GET"  filesize=10485760 profile="profile-case3_pdf" Note: In newer FortiGate versions such as v7.4.x and v7.6.x, the DLP option is not available under Security Profiles and Feature Visibility in the GUI. To configure Data Loss Prevention UTM on FortiGate firewall policies, add /utm/dlp to the URL or the IP address used to access FortiGate. When multiple VDOMs are enabled, the VDOM name may need to be specified in the URL /utm/dlp?vdom=<vdom name>. For example, the URL used to access DLP using the GUI is https://10.5.210.81/utm/dlp.
