Article Id 343282

Description

This article describes how to automatically block internet access on a VLAN during specific days and times.
Internet access will be restricted and restored based on the schedule established.

Scope

FortiGate.

Solution

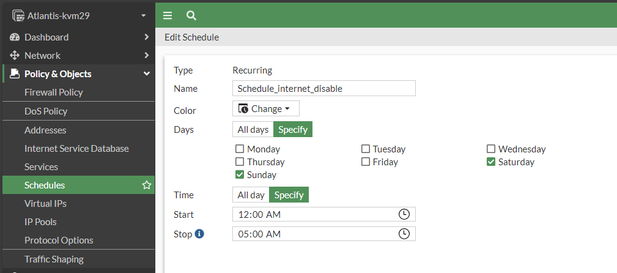

Select the Policy & Objects -> Schedules -> Create New.

When setting a schedule, it is possible to do it by Days and Time.

Screenshot 2024-12-06 154317.png

Select Policy & Objects -> Firewall Policy -> Create New.

Set the Incoming interface on the target VLAN.
Set Schedule by selecting the drop-down arrow, then choose the created schedule.

Using Schedule in Policy.png

Select OK.
Ensure that this new policy is above the rule that allows the traffic.

Policy List.png
