Technical Tip: Applying SNAT and DNAT over the IPSec tunnel

[dbhavsar]

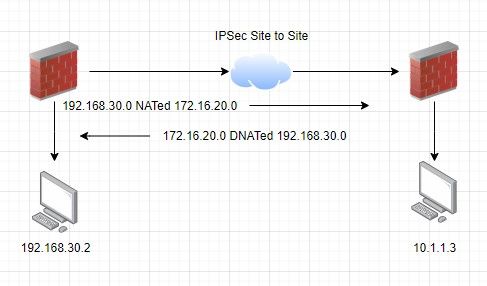

Description	This article describes applying the SNAT for outgoing traffic and DNAT for the return traffic via IPSec tunnel.
Scope	FortiGate.
Solution	The following configuration has been done: configure the Site-to-Site IPSec tunnel On FortiGate-A: Here the local subnet is 192.168.30.0/24 and will be NATed to 172.16.20.0/24, so the Phase2 selectors would be local address is 172.16.20.0/24 and the remote address will be 10.1.1.0/24 LDAPS # get vpn ipsec tunnel name DNSCLIENT gateway name: 'DNSCLIENT' local-gateway: 10.9.11.214:0 (static) remote-gateway: 10.9.15.169:0 (static) status: up mode: ike-v1 interface: 'port2' (4) vrf:0 rx packets: 56 bytes: 4608 errors: 0 tx packets: 56 bytes: 4608 errors: 0 dpd: on-demand/negotiated status:ok idle: 20000ms retry: 3 count: 0 selectors name: 'DNSCLIENT' auto-negotiate: disable mode: tunnel src: 0:172.16.20.0/255.255.255.0:0 dst: 0:10.1.1.0/255.255.255.0:0 Following is the IP-Pool: LDAPS (IPSec-SNAT) # show config firewall ippool     edit "IPSec-SNAT"         set startip 172.16.20.1         set endip 172.16.20.254     next end Following is the Virtual-IP: LDAPS (IPSec-VIP) # show config firewall VIP     edit "IPSec-VIP"         set uuid 100f59c6-be16-51ef-27e3-df074cebf6ad         set extip 172.16.20.1-172.16.20.254         set mappedip "192.168.30.1-192.168.30.254"         set extintf "any"     next end Below is the firewall's outgoing and incoming policy: LDAPS # config firewall policy LDAPS (policy) # edit 22 LDAPS (22) # show     config firewall policy         edit 22             set name "vpn_DNSCLIENT_local_0"             set uuid 4ff37a56-b1a8-51ef-df5e-0c10099a914b             set srcintf "port4"             set dstintf "DNSCLIENT"             set action accept             set srcaddr "DNSCLIENT_local_subnet_1"             set dstaddr "DNSCLIENT_remote"             set schedule "always"             set service "ALL"             set logtraffic all             set nat enable             set port-preserve disable             set ippool enable             set poolname "IPSec-SNAT"             set comments "VPN: DNSCLIENT (Created by VPN wizard)"         next     end LDAPS (22) # next LDAPS (policy) # edit 23 LDAPS (23) # show     config firewall policy         edit 23             set name "vpn_DNSCLIENT_remote_0"             set uuid 4ffa09ac-b1a8-51ef-7569-b06e517ca043             set srcintf "DNSCLIENT"             set dstintf "port4"             set action accept             set srcaddr "DNSCLIENT_remote"             set dstaddr "IPSec-VIP"             set schedule "always"             set service "ALL"             set logtraffic all             set comments "VPN: DNSCLIENT (Created by VPN wizard)"         next     end  Below is the session list showing SNAT and DNAT being applied: LDAPS # diagnose sys session filter dst 10.1.1.3 LDAPS # diagnose sys session list session info: proto=1 proto_state=00 duration=1 expire=59 timeout=0 refresh_dir=both flags=00000000 socktype=0 sockport=0 av_idx=0 use=3 origin-shaper= reply-shaper= per_ip_shaper= class_id=0 ha_id=0 policy_dir=0 tunnel=/ tun_id=10.9.15.169/0.0.0.0 vlan_cos=0/255 state=log may_dirty f00 statistic(bytes/packets/allow_err): org=120/2/1 reply=120/2/1 tuples=2 tx speed(Bps/kbps): 62/0 rx speed(Bps/kbps): 62/0 orgin->sink: org pre->post, reply pre->post dev=6->54/54->6 gwy=10.9.15.169/0.0.0.0 hook=post dir=org act=snat 192.168.30.2:1->10.1.1.3:8(172.16.20.239:24731) hook=pre dir=reply act=dnat 10.1.1.3:24731->172.16.20.239:0(192.168.30.2:1) src_mac=00:4f:72:6e:33:02 misc=0 policy_id=22 pol_uuid_idx=15828 auth_info=0 chk_client_info=0 vd=0 serial=6e55fc7d tos=ff/ff app_list=0 app=0 url_cat=0 rpdb_link_id=00000000 ngfwid=n/a npu_state=0x000100 no_ofld_reason: npu-flag-off total session: 1
