Technical Tip: Exempting IP addresses from IPS sensor scanning

[gpap_FTNT]

Description

This article describes how to exempt a source/destination IP to be exempted from a particular IPS signature.

Scope

FortiGate.

Solution

Applying IP Exemptions from the CLI:
Note: IP exemptions can only be added to the IPS profile when using Signature-type entry. This requires setting the matching IPS signature ID(s) within the IPS entry first, otherwise the IP exemption section is not visible:

config ips sensor

edit <sensor name>

config entries

edit <rule num>

set rule <signature_id> <----- Must be set first before config exempt-ip becomes available.

config exempt-ip

edit <exempt-ip-rule-id>

set src-ip <class_ip&net_netmask> <----- Can be in CIDR format (10.0.0.0/24) or subnet mask format (10.0.0.0 255.255.255.0).

set dst-ip <class_ip&net_netmask>

next

end

next

end

end

Multiple IP exemptions can be added by adding more exempt-ip-rule-id's.

Applying IP Exemptions from the GUI:

1. Navigate to Security Profiles -> Intrusion Prevention, edit or create an IPS sensor, then select Create New under IPS Signatures and Filters.

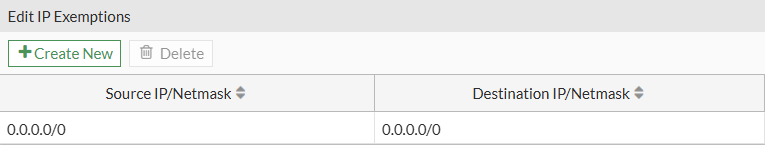

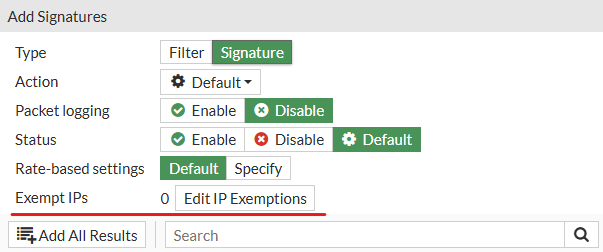

2. From there, change the Type to Signature, then select Edit IP Exemptions. Refer to the screenshots below for visual guidance.


For more information, see the FortiOS CLI Reference section for 'config ips sensor'.

Note:

While the 'source' and 'destination' IPs are configured, they should be configured depending on the direction of the attack.
e.g. If the destination is the server and the source is the host in the IPS logs, set up exemption configuration so the source is the server and the destination is the host.

date=2019-10-27 time=18:44:54 logid="0419016384" type="utm" subtype="ips" eventtype="signature" level="alert" vd="root" eventtime=1572198294024252859 tz="+0100" severity="info" srcip=192.168.209.45 srccountry="Reserved" dstip=213.211.198.58 srcintf="port2" srcintfrole="undefined" dstintf="port1" dstintfrole="undefined" sessionid=8180 action="dropped" proto=6 service="HTTP" policyid=1 attack="Eicar.Virus.Test.File" srcport=41300 dstport=80 hostname="2016.eicar.org" url="/download/eicar.com" direction="incoming" attackid=29844 profile="protect_client" ref="http://www.fortinet.com/ids/VID29844" incidentserialno=1244883271 msg="file_transfer: Eicar.Virus.Test.File,"

To exempt the host, configure the following:

config ips sensor

edit <sensor_name>

config entries

edit 2

set rule 29844
set status enable
set action block
config exempt-ip

edit 1

set src-ip 213.211.198.58 255.255.255.255
set dst-ip 192.168.209.45 255.255.255.255

next

end

next

end

end
