This article provides a BGP configuration example to force/prevent a FortiGate from advertising some BGP routes to specific BGP peers.
Diagram:

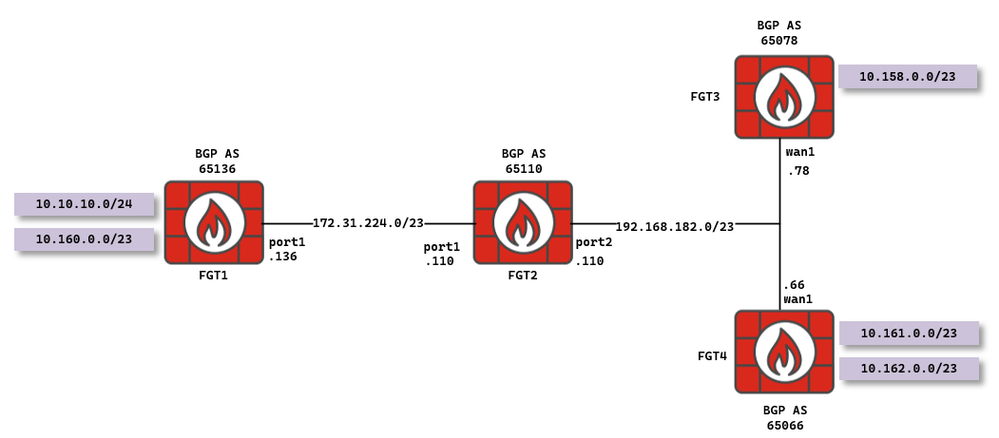

The following diagram illustrates this example:
Expectations and requirements:
FGT2 must advertise specific BGP routes learned from FGT1, to FGT3 and FGT4:
FGT3 must learn only route 10.10.10.0/24.
FGT4 must learn only route 10.160.0.0/23
FGT1 is announcing in BGP the following routes:
10.10.10.0/24
10.160.0.0/23
172.31.224.0/23
FGT3 is announcing in BGP the following routes:
10.158.0.0/23
192.168.182.0/23
FGT4 is announcing in BGP the following routes:
10.161.0.0/23
10.162.0.0/23
Scope
Solution
Configuring access-list and a route-map-out on FortiGate 2 (FGT2) will filter and force the routes advertisements.
Only the relevant parts of FortiGate 2 (FGT2) are provided in CLI format:
config router access-list
edit "match_fgt4"
config rule
edit 1
set prefix 10.160.0.0 255.255.254.0
set exact-match enable
next
end
next
edit "match_fgt3"
config rule
edit 1
set prefix 10.10.10.0 255.255.255.0
set exact-match enable
next
end
next
end
config router route-map
edit "route_map_out_fgt3"
config rule
edit 1
set match-ip-address "match_fgt3"
next
end
next
edit "route_map_out_fgt4"
config rule
edit 1
set match-ip-address "match_fgt4"
next
end
next
end
config router bgp
set as 65110
config neighbor
edit "172.31.224.136"
set remote-as 65136
next
edit "192.168.182.78"
set remote-as 65078
set route-map-out "route_map_out_fgt3"
next
edit "192.168.182.66"
set remote-as 65066
set route-map-out "route_map_out_fgt4"
next
end
set router-id 172.31.224.110
end
Verifications before configuring FGT2:
FGT2 # get router info routing-table all
S* 0.0.0.0/0 [10/0] via 172.31.225.254, port1
B 10.10.10.0/24 [20/0] via 172.31.224.136, port1, 00:00:06
B 10.158.0.0/23 [20/0] via 192.168.182.78, port2, 00:00:06
B 10.160.0.0/23 [20/0] via 172.31.224.136, port1, 00:00:06
B 10.161.0.0/23 [20/0] via 192.168.182.66, port2, 00:00:01
B 10.162.0.0/23 [20/0] via 192.168.182.66, port2, 00:00:01
C 172.31.224.0/23 is directly connected, port1
C 192.168.182.0/23 is directly connected, port2
FGT3 # get router info routing-table all
S* 0.0.0.0/0 [10/0] via 192.168.183.254, wan1
B 10.10.10.0/24 [20/0] via 192.168.182.110, wan1, 00:06:04
C 10.158.0.0/23 is directly connected, internal
B 10.160.0.0/23 [20/0] via 192.168.182.110, wan1, 00:06:04
B 10.161.0.0/23 [20/0] via 192.168.182.66, wan1, 00:05:35
B 10.162.0.0/23 [20/0] via 192.168.182.66, wan1, 00:05:35
B 172.31.224.0/23 [20/0] via 192.168.182.110, wan1, 00:06:04
C 192.168.182.0/23 is directly connected, wan1
FGT4 # get router info routing-table all
S* 0.0.0.0/0 [10/0] via 192.168.183.254, wan1
B 10.10.10.0/24 [20/0] via 192.168.182.110, wan1, 00:06:51
B 10.158.0.0/23 [20/0] via 192.168.182.78, wan1, 00:06:51
B 10.160.0.0/23 [20/0] via 192.168.182.110, wan1, 00:06:51
C 10.161.0.0/23 is directly connected, wan1
C 10.162.0.0/23 is directly connected, wan1
B 172.31.224.0/23 [20/0] via 192.168.182.110, wan1, 00:06:51
C 192.168.182.0/23 is directly connected, wan1
FGT2 # get router info routing-table all
S* 0.0.0.0/0 [10/0] via 172.31.225.254, port1
B 10.10.10.0/24 [20/0] via 172.31.224.136, port1, 00:00:31
B 10.158.0.0/23 [20/0] via 192.168.182.78, port2, 00:00:31
B 10.160.0.0/23 [20/0] via 172.31.224.136, port1, 00:00:31
B 10.161.0.0/23 [20/0] via 192.168.182.66, port2, 00:00:26
B 10.162.0.0/23 [20/0] via 192.168.182.66, port2, 00:00:26
C 172.31.224.0/23 is directly connected, port1
C 192.168.182.0/23 is directly connected, port2
FGT3 # get router info routing-table all
S* 0.0.0.0/0 [10/0] via 192.168.183.254, wan1
B 10.10.10.0/24 [20/0] via 192.168.182.110, wan1, 00:00:48
C 10.158.0.0/23 is directly connected, internal
C 192.168.182.0/23 is directly connected, wan1
FGT4 # get router info routing-table all
S* 0.0.0.0/0 [10/0] via 192.168.183.254, wan1
B 10.160.0.0/23 [20/0] via 192.168.182.110, wan1, 00:00:36
C 10.161.0.0/23 is directly connected, wan1
C 10.162.0.0/23 is directly connected, wan1
C 192.168.182.0/23 is directly connected, wan1
