Access-list is used to limit advertised routes and also to insert only specific routes of received routes in BGP using route-map.
To define the network, which needs to be matched, either wildcard or prefix options can be used in the access list rule.

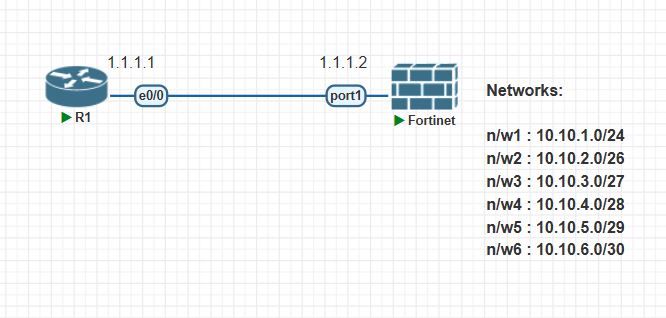

Here is a scenario:
FortiGate is connected to Networks: n/w1,: 10.10.1.0/24, n/w2 :10.10.2.0/26, n/w3 :10.10.3.0/27, n/w4 :10.10.4.0/28, n/w5 :10.10.5.0/29 and n/w6 :10.10.6.0/30.
All these connected routes get redistributed when redistribute 'connected' is enabled in BGP
config redistribute "connected"
set status enable
end
If there is a need to block specific connected networks from getting advertised to the BGP neighbor, an access list needs to be created with a specific network ID; call it in Route-map and configure route-map-out in the BGP neighbor.
Example:
Out of all connected networks, n/w4: 10.10.4.0/28 and n/w5: 10.10.5.0/29 are not supposed to be advertised.
So need to create a rule using the prifix or wildcard option to filter the network.
Access-list with prefix option: here network ID and its subnet mask have to be defined.
config router access-list
edit "Block_n4_n5"
config rule
edit 1
set prefix 10.10.4.0 255.255.255.240
next
edit 2
set prefix 10.10.5.0 255.255.255.248
next
end
next
edit "Allow_rest"
config rule
edit 1
set prefix any
set exact-match enable
next
end
next
end
Access-list with wildcard option: here network ID and wildcard subnet mask have to be defined similarly to the Cisco ACL rule.
config router access-list
edit Block_n4_n5
config rule
edit 1
set wildcard 10.10.4.0 0.0.0.16
next
edit 2
set wildcard 10.10.5.0 0.0.0.8
next
end
next
edit Allow_rest
config rule
edit 1
set prefix any
set exact-match enable
next
end
next
end
Both will serve the same purpose but defining the network, and its subnet is different. Either prefix or wildcard in the single rule ID can be set, not both.
Fortinet # config router access-list
Fortinet (access-list) # edit Block_n4_n5
Fortinet (Block_n4_n5) # config rule
Fortinet (rule) # edit 1
Fortinet (1) #show full
config rule
edit 1
set action permit
set prefix 10.10.4.0 255.255.255.240
unset wildcard <<<<<< wildcard will get unset when prefix is used and viseversa.
set exact-match disable
next
end
==========================
- Call the access list in route map:
config router route-map
edit "1"
config rule
edit 1
set action deny
set match-ip-address "Block_n4_n5" <----
next
edit 2
set match-ip-address "Allow_rest"
next
end
next
end
- Call the route map in the neighbor setting to block n/w4: 10.10.4.0/28 and n/w5: 10.10.5.0/29 getting advertised.
config router bgp
set as 65412
config neighbor
edit "1.1.1.1"
set remote-as 65412
set route-map-out "1"
next
end
config redistribute "connected"
set status enable
end
- Result of the configuration:
Fortinet # get router info bgp network
VRF 0 BGP table version is 1, local router ID is 10.10.6.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 1.1.1.0/30 0.0.0.0 32768 0 ? <-/1>
*> 10.10.1.0/24 0.0.0.0 32768 0 ? <-/1>
*> 10.10.2.0/26 0.0.0.0 32768 0 ? <-/1>
*> 10.10.3.0/27 0.0.0.0 32768 0 ? <-/1>
*> 10.10.4.0/28 0.0.0.0 32768 0 ? <-/1>
*> 10.10.5.0/29 0.0.0.0 32768 0 ? <-/1>
*> 10.10.6.0/30 0.0.0.0 32768 0 ? <-/1>
Fortinet # get router info bgp neighbors 1.1.1.1 advertised-routes
VRF 0 BGP table version is 1, local router ID is 10.10.6.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*>i1.1.1.0/30 1.1.1.2 100 32768 0 ? <-/->
*>i10.10.1.0/24 1.1.1.2 100 32768 0 ? <-/->
*>i10.10.2.0/26 1.1.1.2 100 32768 0 ? <-/->
*>i10.10.3.0/27 1.1.1.2 100 32768 0 ? <-/->
*>i10.10.6.0/30 1.1.1.2 100 32768 0 ? <-/->
Router#show ip bgp summary
BGP router identifier 1.1.1.1, local AS number 65412
BGP table version is 88, main routing table version 88
5 network entries using 700 bytes of memory
5 path entries using 400 bytes of memory
1/1 BGP path/bestpath attribute entries using 144 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 1244 total bytes of memory
BGP activity 32/27 prefixes, 46/41 paths, scan interval 60 secs
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
1.1.1.2 4 65412 11 11 88 0 0 00:07:06 5
Router#show ip bgp neighbors 1.1.1.2 received-routes
BGP table version is 98, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found
Network Next Hop Metric LocPrf Weight Path
r>i 1.1.1.0/30 1.1.1.2 100 0 ?
*>i 10.10.1.0/24 1.1.1.2 100 0 ?
*>i 10.10.2.0/26 1.1.1.2 100 0 ?
*>i 10.10.3.0/27 1.1.1.2 100 0 ?
*>i 10.10.6.0/30 1.1.1.2 100 0 ?
|
