Troubleshooting tip: RADIUS Authentication Failure on FortiAuthenticator When NTLM v1 is Disabled on LDAP Server

[ManpreetSingh]

Description	This article describes a solution to resolve the issue of RADIUS authentication failure, when NTLM v1 is disabled on a Windows Server (LDAP server), RADIUS authentication may fail between FortiGate and FortiAuthenticator and LDAP server.
Scope	FortiGate, FortiAuthenticator.

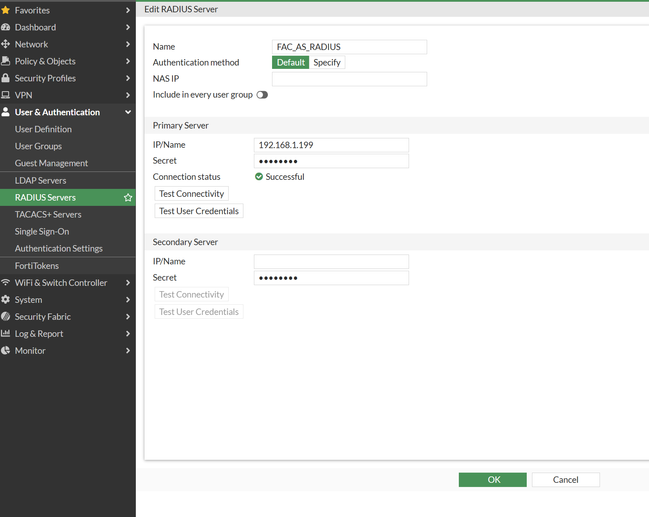

Solution	When NTLM v1 is disabled, and the RADIUS protocol on FortiGate radius settings is set as MSCHAPv2, the authentication will fail because MSCHAPV2 uses NTLM v1.  In the topology below, a FortiClient user connecting to FortiGate and FortiGate is using FortiAuthenticator as a RADIUS server for user authentication and FortiAuthenticator is authenticating the users stored on the LDAP server.   Following config changes are required on FortiGate: Navigate to User & Authentication -> RADIUS server -> Select the RADIUS Server. Ensure the Authentication Protocol is set to Default. Related document: VPN connections fail when using MS-CHAPv2
