Technical Tip: Reason why FortiAuthenticator is not syncing with LDAP server

[VinayHM]

Description	This article describes the reason why FortiAuthenticator is not syncing with the LDAP server.
Scope	FortiAuthenticator.

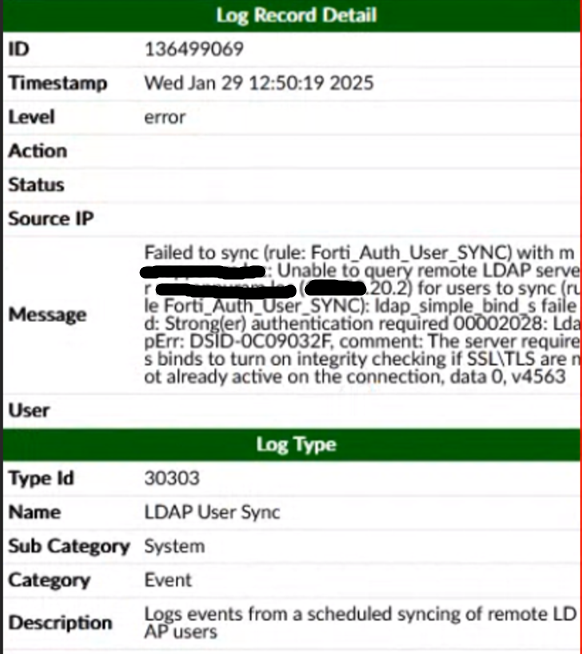

Solution	This issue is from the LDAP server as the bind response asks for an integrity check from the LDAP server. Logs from FortiAuthenticator: Failed to sync (rule: Forti_Auth_User_SYNC) with example.noc : Unable to query remote LDAP server example.noc (10.x.x.x) for users to sync (ru le Forti_Auth_User_SYNC): Idap_simple_bind_s faile d: Strong(er) authentication required 00002028: Lda pErr: DSID-0C09032F, comment: The server requires s binds to turn on integrity checking if SSL TLS are not already active on the connection, data 0, v4563 From the Packet captures on FortiAuthenticator. Bind request: Lightweight Directory Access Protocol LDAPMessage bindRequest(1) "abc@example.noc" simple messageID: 1 protocolOp: bindRequest (0) bindRequest version: 3 name: abc@example.noc authentication: simple (0) simple: Password [Response In: 280] Bind response: Lightweight Directory Access Protocol LDAPMessage bindResponse(1) strongAuthRequired (00002028: LdapErr: DSID-0C09032F, comment: The server requires binds to turn on integrity checking if SSL\TLS are not already active on the connection, data 0, v4563)  <----- messageID: 1 protocolOp: bindResponse (1) bindResponse resultCode: strongAuthRequired (8)  <------ matchedDN: <MISSING> errorMessage: 00002028: LdapErr: DSID-0C09032F, comment: The server requires binds to turn on integrity checking if SSL\TLS are not already active on the connection, data 0, v4563 [Response To: 279] [Time: 0.002378000 seconds] Cause: A non-default security setting on the LDAP server that enforces all LDAP authentication to be secured with SSL. This policy on the domain controller is: 'Domain controller: LDAP server signing requirements' and if set to 'Require signing' connections will fail if not configured to use SSL. If this policy is configured on the domain controller in a Windows Domain, a non-secure LDAP authentication will fail.
