Technical Tip: Understanding WPA2-Enterprise EAP-PEAP packet processing by FortiAP managed via FortiGate Firewall

[gvenkatesan]

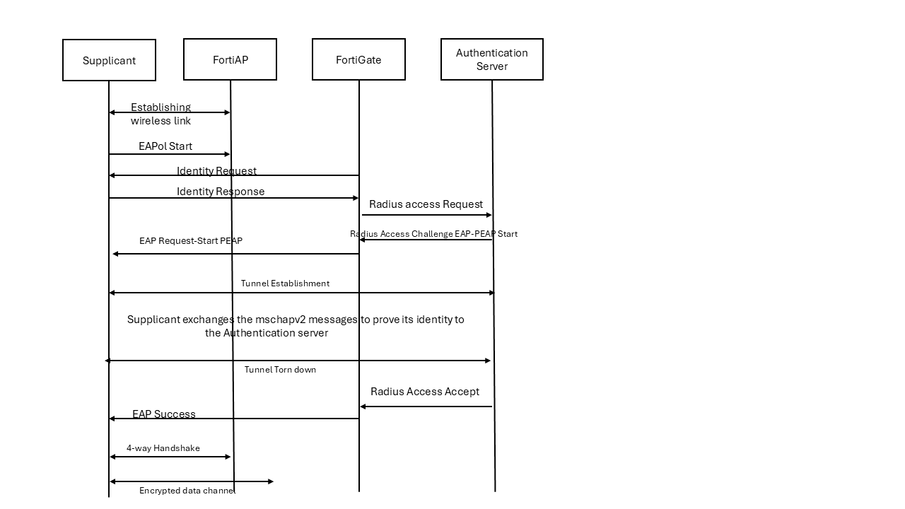

Description	This article details the packet flow for SSID operation in both Bridge mode and Tunnel mode.
