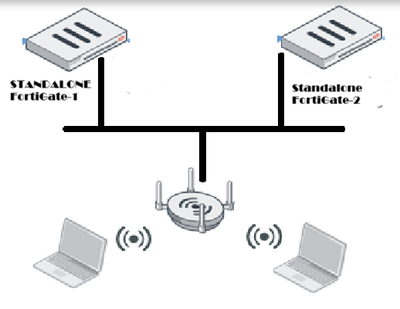

Consider the diagram below for reference.
- Both the FortiGate should be reachable to the FortiAP.
- Security Fabric connection to be enabled on both the FortiGate interfaces through which the FortiAP shall communicate.
- Configure the interface IPs of both the FortiGate. onto the FortiAP CLI
For example, there is FortiGate -1 with interface IP 10.37.165.194 and FortiGate -2 with interface IP 10.37.164.34.
Login to the FortiAP CLI to configure the FortiGate's interface IPs :
cfg -a AC_DISCOVERY_TYPE=1
cfg -a AC_IPADDR_1:10.37.165.194
cfg -a AC_IPADDR_2:=10.37.164.3
cfg -c
To see the configuration is applied on FortiAP CLI :
FortiAP-231F # cfg -s
BAUD_RATE:=9600
WTP_VERSION:=FortiAP-231F v7.4.2,build0634,231228 (GA)
FIRMWARE_UPGRADE:=0
FACTORY_RESET:=0
LOGIN_PASSWD_ENC:=QMQWx8zyVMI/pNs7EOKon066L2pDQbWqFN9skwFX2WTDPXxYhi5TJAFBQYj80kJ55PzLMR2vNvU7v9Vow1GUsRkYGwZ/2YYpFIiqjs8ZaO/cH27VAmK7SoWffu/z6PunSp3IYrRMMIyXoyQ3ypQtx4HbmFeC1scTqYbHjdf9rDL7rQku98DY7c18O0ZWFGMVnq8lxw==
FIPS_CC:=0
FIPS_RESEED_INTV:=1440
ADMIN_TIMEOUT:=5
WANLAN_MODE:=WAN-ONLY
AP_MODE:=0
STP_MODE:=0
AP_MGMT_VLAN_ID:=0
ADDR_MODE:=DHCP
AP_IPADDR:=192.168.1.2
AP_NETMASK:=255.255.255.0
IPGW:=192.168.1.1
DNS_SERVER:=208.91.112.53
ALLOW_HTTPS:=2
ALLOW_SSH:=2
AC_DISCOVERY_TYPE:=1
AC_IPADDR_1:=10.37.165.194
AC_IPADDR_2:=10.37.164.34
AC_IPADDR_3:=
AC_HOSTNAME_1:=_capwap-control._udp.example.com
AC_HOSTNAME_2:=
AC_HOSTNAME_3:=
AC_DISCOVERY_MC_ADDR:=224.0.1.140
AC_DISCOVERY_DHCP_OPTION_CODE:=138
AC_DISCOVERY_FCLD_APCTRL:=
AC_CTL_PORT:=5246
AP_DATA_CHAN_SEC:=clear,dtls,ipsec
BONJOUR_GW:=2
MESH_AP_TYPE:=0
LED_STATE:=2
POE_MODE:=0
WAN_1X_ENABLE:=0
WAN_1X_USERID:=
WAN_1X_PASSWD_ENC:=
WAN_1X_METHOD:=0
This means the FortiAP will communicate with FortiGate -1 as it is set with AC_IPADDR_1:=10.37.165.194 and if for some reason FortiGate -1 is
down then the FortiAP will attempt to reach to FortiGate -2 that is AC_IPADDR_2:=10.37.164.34
FortiAP will maintain the list of FortiGate IPs :
FortiAP-231F # cw_diag -c ha
wcha_mode: standalone @878
Current AC: 10.37.165.194:5246 pri 1
WC fast failover AC mode : 0
WC fast failover peer cnt: 0
Discovered AC list:
ip=10.37.164.34 allow=1 pri=1 dtls=3 wtp=1/16 sta=0/65535
To check the FortiAP connection state :
FortiAP-231F #
FortiAP-231F # wcfg
WTP Configuration
name : FortiAP-231F
loc : N/A
region map :
pos-x : 0
pos-y : 0
ap mode : thin AP
fmvap : FWF60FTK21006815,(0833f552,addb7f95,0),1800,0
atf mode : disabled
VWTP ac conf : dual-5g N/A ddscan enabled
VWTP wtp oper : dual-5g disabled ddscan enabled
poe mode : low(auto)
poe mode oper : low
usb port : disabled
led mode : normal
led schedules : SMTWTFS 00:00->00:00,
WAN port cnt : 2
lan1 : carrier=1, speed=1000, duplex=full
lan2 : carrier=0, speed=0, duplex=
energy-efficient-eth : disable
extension info enable: enable
vap-stats-interval : 15
radio-stats-interval : 15
sta-cap-interval : 30
idle-timeout : 300
fpresence-interval : 3600, 30
statistics-interval : 120
fsm-state : RUN 52
wtp-ip-addr : 10.37.166.34:5246 - 10.37.166.34:55437
ac-ip-addr : 10.37.165.194 :5246 - 10.37.165.194:5247 FWF60F-v7.2-build1639 STATIC
base-mac : 80:80:2c:8e:fa:10
bulk data seq num : -1
ap-mgmt-vlanid : 0
ac-cert-version : 2
When the FortiGate -1 becomes unreachable the FortiAP will connect to FortiGate -2.
FortiAP-231F # wcfg
WTP Configuration
name : FortiAP-231F
loc : N/A
region map :
pos-x : 0
pos-y : 0
ap mode : thin AP
fmvap : FWF60FTK21006815,(0833f552,addb7f95,0),1800,0
atf mode : disabled
VWTP ac conf : dual-5g N/A ddscan enabled
VWTP wtp oper : dual-5g disabled ddscan enabled
poe mode : low(auto)
poe mode oper : low
usb port : disabled
led mode : normal
led schedules : SMTWTFS 00:00->00:00,
WAN port cnt : 2
lan1 : carrier=1, speed=1000, duplex=full
lan2 : carrier=0, speed=0, duplex=
energy-efficient-eth : disable
extension info enable: enable
allowaccess : ssh
lldp enable : enable
wtp-report-index : 2
sta-cap-interval : 30
idle-timeout : 300
fpresence-interval : 3600, 30
statistics-interval : 120
fsm-state : RUN 223
wtp-ip-addr : 10.37.166.34:5246 - 10.37.166.34:55437
ac-ip-addr : 10.37.165.194:5246 - 10.37.165.194:5247 FWF40F-v7.2-build1639 STATIC
base-mac : 80:80:2c:8e:fa:10
bulk data seq num : -1
ap-mgmt-vlanid : 0
ac-cert-version : 2
Note: When FortiGate-1 is unreachable the FortiAP will go offline and there will be a disruption in the services for the time when FortiAP connects
to FortiGate-2.
|
