Technical Tip: How to add includeSubDomains and/or set max-age for HTTP Strict Transport Security (HSTS)

[Khidzir_MN]

Description	This article describes how to add includeSubDomains and/or set max-age for HTTP Strict Transport Security (HSTS) and is ONLY focusing on the needed setup for the Content Rewriting to add/modify the respective HSTS header. It is maybe necessary to preconfigure other respective Virtual Server setups and refer to the documentation at the end of this article for more information on configuring a Virtual Server.
Scope	FortiADC and FortiADC VM.

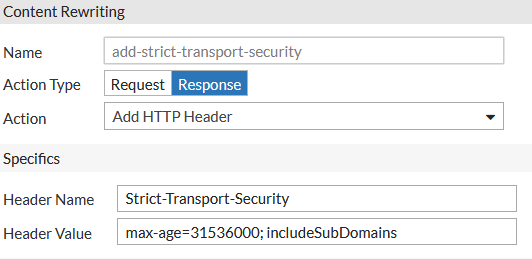

Solution	It is necessary to have requirement to add includeSubDomains and/or set max-age for HTTP Strict Transport Security (HSTS) header. From GUI: Create Content Rewriting as below: 1) Add HSTS header with includeSubDomains and/or set max-age. - Go to the Server Load Balance -> Virtual Server -> Content Rewriting (tab). - Select 'Create New'. Provide the preferred Name. In this example, 'add-strict-transport-security' is used as the name. - For Action Type, select Response and for Action, select Add HTTP Header. - Under the Specifics section, for Header Name input 'Strict-Transport-Security' and for the Header Value input 'max-age=31536000; includeSubDomains'. Note that for this example, 31536000 is used as the max-age value, set the value accordingly based on the requirement). - Select 'Save'. 2) Delete HSTS header (optional). (This may be needed if the real server already included the HSTS header.) - Go to the Server Load Balance -> Virtual Server -> Content Rewriting (tab). - Select Create New. Provide the preferred Name. In this example, 'del-strict-transport-security' is used as the name. - For Action Type, select Response, and for Action, select delete HTTP Header. - Under the Specifics section, for Header Name input 'Strict-Transport-Security' and leave other settings as default. - Select 'Save'. Applies the Content Rewriting created in Step 1 at the respective Virtual Server. (Note that the 'delete' content rewriting needs to be above the 'add' content rewriting). From CLI: Create Content Rewriting as below: 1) Add HSTS header with includeSubDomains and/or set max-age # config load-balance content-rewriting     edit "add-strict-transport-security"         set action-type response         set action add_http_header         set header-name Strict-Transport-Security         set header-value "max-age=31536000; includeSubDomains"         config match-condition     end next end 2) Delete the HSTS header (optional). (This may be needed if the real server already includes the HSTS header).  # config load-balance content-rewriting      edit "del-strict-transport-security"          set action-type response          set action delete_http_header          set header-name Strict-Transport-Security          config match-condition      end  next  end Applies the Content Rewriting created in Step 1 at the respective Virtual Server. (Note that the 'delete' content rewriting needs to be in front of the 'add' content rewriting). # config load-balance virtual-server     edit "virtual_server_name"         set content-rewriting enable         set content-rewriting-list del-strict-transport-security add-strict-transport-security     next end Verification: Before adding the HSTS header. After adding the HSTS header. Related Virtual Server configuration document: https://docs.fortinet.com/document/fortiadc/7.1.1/handbook/970956/configuring-virtual-servers Related HSTS document: https://docs.fortinet.com/document/fortiadc/7.1.1/handbook/172527/hsts-and-hpkp-support
