Trunk VLAN
I have three VLANs on one physical interface... Management (10), Workstations (20), and Servers (30).

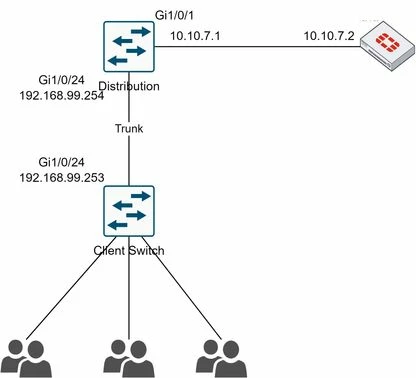

on that physical interface, I have Cisco 3750G-12S as distribution switch, and after that client switches.
On distribution switch, on all ports I have the next configuration:
switchport trunk encapsulation dot1q
switchport trunk native vlan 301
switchport trunk allowed vlan 10,20,30
switchport mode trunk'=
interface Vlan10
description Management
ip address 192.168.1.2 255.255.255.0
no ip redirects
no ip unreachables
interface Vlan20
ip address 192.168.2.2 255.255.255.0
no ip redirects
interface Vlan30
ip address 192.168.3.2 255.255.255.0
from the distribution switch, I can ping any gateway on the FortiGate (policy ok, address ok,etc).
On the client switch 2960X-48TD-L
interface GigabitEthernet1/0/49
switchport trunk allowed vlan 10,20,30
switchport trunk native vlan 301
switchport mode trunk
interface Vlan10
description Management
ip address 192.168.1.3 255.255.255.0
no ip redirects
no ip unreachables
no ip route-cache cef
interface Vlan20
no ip address
interface Vlan30
description Servers
no ip address
From this switch, I can't ping anything besides the Management port.
Two questions:
- Is my configuration ok so that I don't need an IP address for each VLAN (except VLAN 10 - Management) on each switch except on the distribution switch? - If yes, what did I do wrong so that I cant ping other VLANs from the client switch?
- If my DHCP server is on the VLAN 30, can I just make dhcp-relay <IP add of the server> on the VLAN 20, or do I have to move the Server under the same VLAN? I wanted to split Servers from workstations in different VLANs but now I'm not sure if that was a good idea
Thank you in advance!
