Hello,

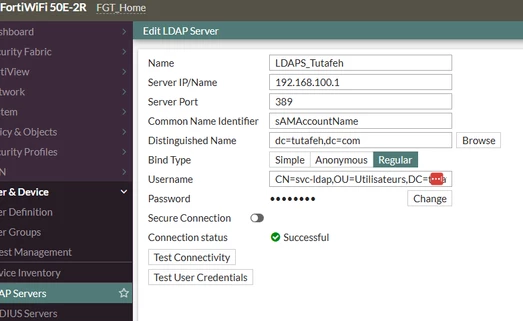

I'm trying to setup an ldaps srv on my fortigate 50E (6.2.17) and it works with the ip without cert and i can save but i would like it to work with a cert

when i try with the fqdn, i can't save and shows invalid hostname (i can ping the fqdn from the fw) even if the connectivity test works and i can browse the distinguised name

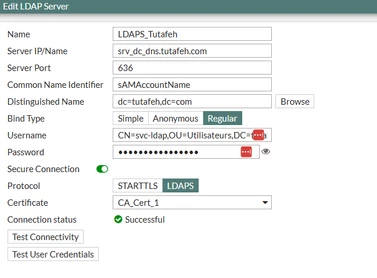

then when i try to enable the secure connection and add the CA cert (with the fqdn as the cn), the connectivity test still works, i can still browse the distinguished name but when i try to validate, it disable the secure connexion with the cert and i get an invalid hostname error

even if i can ping this hostname and browse the dn and everything...

Does someone knows why it could do that ?

Best Regards

John

Best answer by Markus_M

Possible to get rid of the underscores _ ?
https://datatracker.ietf.org/doc/html/rfc1035#section-2.3.1

The labels must follow the rules for ARPANET host names.  They must start with a letter, end with a letter or digit, and have as interior characters only letters, digits, and hyphen.  There are also some restrictions on the length.

You may be able to work around it, depending on your server certificate, with creating a DNS database entry on FortiGate for something similar to srvdcdns.tutafeh.com against that IP, and use that as FQDN in your LDAP server setting. The FQDN must match the server certificate.

AEK

SuperUser

Hi John

Can you try set the hostname from CLI?

config user ldap
 edit LDAPS_Tutafeh
  set server "srv_dc_dns.tutafeh.com"
 end
end

AEK

JohnSmith33Author

New Member

Hello AEK,

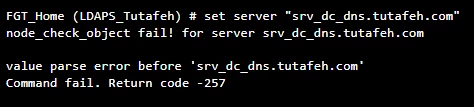

I tried but got this error

ozkanaltas

Valued Contributor III

Hello @JohnSmith33 ,

Can you try removing the quotation marks?

set server srv_dc_dns.tutafeh.com

JohnSmith33Author

New Member

Hello guys,

thanks for the answers, I could only try without underscore this morning and i can now save, well it works without a certificate with the entry dns but not with the certificate even if i renewed it with the new name.

I think I'm gonna redeploy everything so i don't need the dns entry and I won't ever put underscore in my dc srv name x)

Anyway thanks for the solution about the underscore.
