Fetch DN

  • February 3, 2016
  • 3 replies
  • 12998 views

hello

how can i know what do type on this lines ?

i have DC server 2008 r2 enterprise

    3 replies

    yaronbeny7
    New Member
    February 4, 2016

    it is not working.

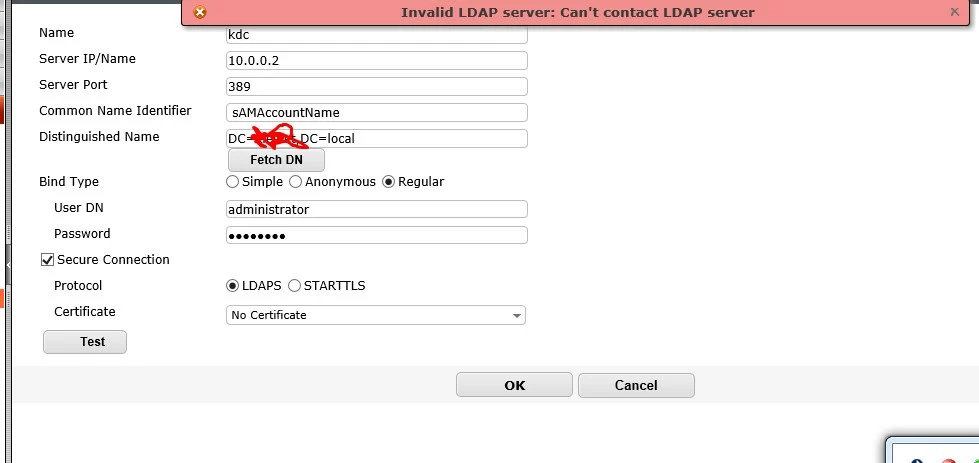

    see screenshot with error

    i

    ede_pfau
    SuperUser
    SuperUser
    February 4, 2016

    It's not the DN (syntax).

    The FGT cannot contact the LDAP server. IMHO a secure LDAP connection (LDAPS) uses port 636, not 389.

    Either switch back to regular LDAP or check the secure connection (username, password, protocol).

    emnoc
    New Member
    February 6, 2016

    All good suggestion but have you tried any diag test  authserver ldap commands from the cli?







    AtiT
    New Member
    February 6, 2016

    Hello,

    Login to your Windows Domain Controller and type into the CLI:

    C:\>dsquery user -samid administrator



    You will get something like this:

    C:\>dsquery user -samid administrator "CN=Administrator,CN=Users,DC=homelab,DC=local"



    Put the CN=Administrator,CN=Users,DC=homelab,DC=local into the User DN field (Bind type: Regular).

    Set the admin password.



    Use sAMAccountName as Common Name Identifier.

    Use dc=homelab,dc=local as the Distinguished Name. (The CN=User means a group in the homlab.local domain, so in this case only the domain was used. Set the domain at first to see whether the LDAP will work. You can set an OU or CN later on to what you need to not search the whole LDAP tree. It depends what you need.)



    Try the Test without the Secure Connection. It should work. If you will use the Securte Connection you will need probably some certificate issued by your CA in the Windows AD environment - Someone else can correct me if I am wrong.



    AtiT
    New Member
    February 6, 2016

    Just some images how to set up on the FortiGate.

    Also I tried the Secure Connection which worked with the imported certificate.





    yaronbeny7
    New Member
    February 14, 2016

    i did it wiith "active directory explorer" but

    it is still give me error (see screenshoot)

    and what about user dn ? how can i know the password?

    nshot)

    ede_pfau
    SuperUser
    SuperUser
    February 14, 2016

    You're still using LDAPS on the regular LDAP port. Do you read the posts here at all?
