60F Explicit Proxy - Source Interface

  • July 7, 2023
  • 2 replies
  • 4085 views

Hi all,

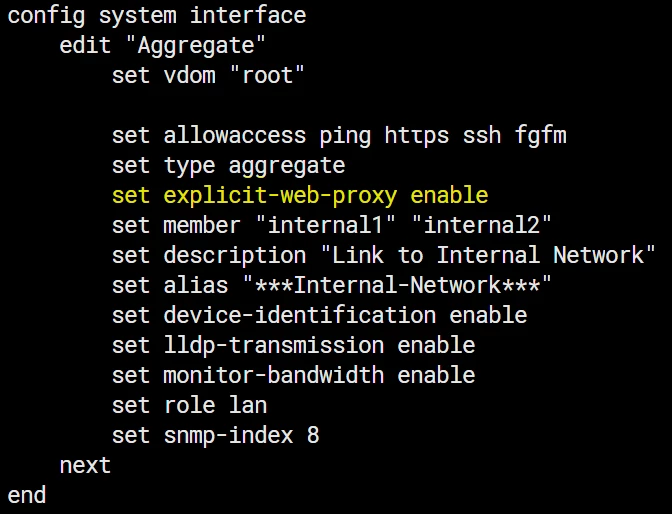

I have FortiGate 60F running version 7.4.0 and have an Explicit Proxy setup. As you can see in the interface CLI output I have the set explicit-web-proxy enabled option configured on the interface however, when I try to create my policy in the Explicit Policy it shows that it isn't enabled on any interfaces.



Policy No Interface Found.pngProxy Enabled Interface.png



I haven't come across this issue before, typically enabling this in the GUI causes the interface to be displayed in the policy. Is this because I have an aggregate interface setup and that is causing an issue, has anyone come across this issue before and have any ideas as to what I can do for the interface to appear in the policy?



Thanks,
Dan.





2 replies

Anthony_E
Staff
Anthony_E
Staff
July 10, 2023

Hello Dan,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Best Regards
    knagaraju
    Staff
    knagaraju
    Staff
    July 10, 2023

    Hello Dan_Eng52,



    May I know if you are unable to configure a proxy policy with aggregate interface ?
    May I know if you have enabled explicit proxy under Network>>explicit proxy>>Listen on Interfaces as aggregate ?

    Regards
    Nagaraju.

      Dan_Eng52
      Dan_Eng52Author
      Explorer III
      July 10, 2023

      Hi Knagaraju,



      Thanks for your response.



      I can confirm that I have my aggregate interface set in the Listen on Interfaces section within the Explicit proxy settings. I've tried this with another interface also and no matter which one I use it seems that the interface is never displayed in the policy so cannot select the interface.



      Listening Interface.png



      Regards,

      Dan.
