Troubleshooting Tip: Dynamic assigned VLAN is not working with Ivanti as radius server

jballini · ‎10-07-2024

Description

This article describes the issue when Dynamic assigned VLAN is not working with Ivanti as a Radius server

Scope

FortiSwitch is not assigning the port user connected to the correct VLAN ID although the configuration is correct and Ivanti logs show that the user is authenticated successfully and assigned to the correct VLAN.

Solution

Once the 802.1x is successfully configured, test with the user.

FortiSwitch # diagnose switch 802-1x status.

port16: Mode: port-based (mac-by-pass disable)

Link: Link up

Port State: authorized: ( )

Dynamic Authorized Vlan : 0

EAP pass-through : Enable

EAP auto-untagged-vlans : Enable

Quarantine VLAN (4093) detection : Enable

Native Vlan : 1

Allowed Vlan list: 1

Untagged Vlan list:

Guest VLAN :

Auth-Fail Vlan :

AuthServer-Timeout Vlan :

Sessions info:

xx:xx:xx:xx:xx:xx Type=802.1x,PEAP,state=AUTHENTICATED,etime=0,eap_cnt=12 params:reAuth=3600

In addition to the FortiSwitch output, when checking Packet Capture logs taken from FortiGate, it is possible to see that Ivanti is sending VLAN ID information as '<vlan-id>\000' or '<vlan-name>\000'. The sample is below.

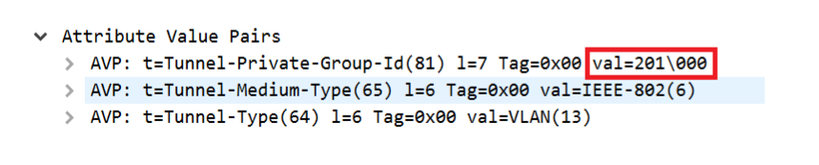

Attribute Value Pairs.png

Resolution:

On Ivanti from Endpoint Policy -> Network Access -> Radius Dictionary, select radius.dct and then select radius.dct near the Current Dictionary file and export the file to the PC.

Open the file downloaded on Notepad or Notepad++ tool, and search for the Tunnel-Private-Group-ID line. Change the default parameter as [data=stringnz] and save the file as a new file named fortiswitch.dct.
Select New Radius Dictionary from Endpoint Policy -> Network Access -> Radius Dictionary and create a new dictionary named fortiSwitch.dct then select the Browse button and import the file edited in step 2. and save changes.

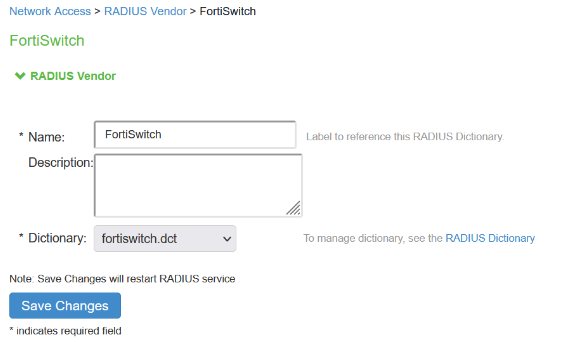

Create a New Radius Vendor from Endpoint Policy -> Network Access -> Radius Vendor named FortiSwitch and choose fortiswitch.dct as Dictionary and save changes.

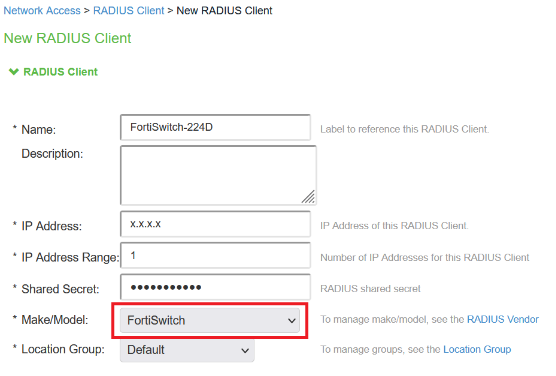

Assign Radius Vendor Profile to Radius Client FortiSwitch under Endpoint Policy -> Network Access -> Radius Client ->{FortiSwitch-Name}.
