| Solution |

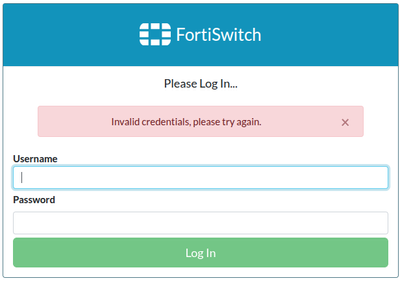

FortiSwitch administration login does not prompt for a token code for RADIUS users who require Two-Factor Authentication (2FA). The login screen shows Invalid credentials, please try again.
Sample FortiAuthenticator RADIUS debug logs:
2025-09-10T21:37:10.807814-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: ===>NAS IP:10.56.x.x
2025-09-10T21:37:10.807892-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: ===>Username:admin.2fa
2025-09-10T21:37:10.807920-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: ===>Timestamp:1757565430.807904, age:0ms
2025-09-10T21:37:10.809941-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Found authclient from preloaded
authclients list for 10.56.x.x: FSW-01 (10.56.x.x)
2025-09-10T21:37:10.813664-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Found authpolicy 'RADIUS_2FA' for client '10.56.x.x'
2025-09-10T21:37:10.813697-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Setting 'Auth-Type := FACAUTH'
2025-09-10T21:37:10.814067-07:00 FortiAuthenticator radiusd[28758]: Not doing PAP as Auth-Type is already set.
2025-09-10T21:37:10.814111-07:00 FortiAuthenticator radiusd[28758]: (0) # Executing group from file /usr/etc/raddb/sites-enabled/default
2025-09-10T21:37:10.814196-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Client type: external (subtype: radius)
2025-09-10T21:37:10.814213-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Input raw_username: admin.2fa Realm:
(null) username: admin.2fa
2025-09-10T21:37:10.814223-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Searching default realm as well
2025-09-10T21:37:10.814237-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Realm not specified, default goes to FAC local user
2025-09-10T21:37:10.819956-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Local user found: admin.2fa
2025-09-10T21:37:10.819995-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: User [enable fido: false,
token count: 0, revoked_token_count: 0]
2025-09-10T21:37:10.820028-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Policy [fido_auth_opt: disabled,
twofactor: allow both, no_fido: two factor, revoked: reject]
2025-09-10T21:37:10.820050-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Decided on [is_fido: false,
two_factor: allow both, token_type: Fortitoken]
2025-09-10T21:37:10.842826-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Partial auth done, challenge for token code
2025-09-10T21:37:10.842929-07:00 FortiAuthenticator radiusd[28758]: (0) facauth: Sending Access-Challenge.
2025-09-10T21:37:10.843098-07:00 FortiAuthenticator radiusd[28758]: (0) facauth:
Updated auth log 'admin.2fa' for attempt from 10.56.x.x: Local administrator authentication partially done, expecting FortiToken
2025-09-10T21:37:10.843175-07:00 FortiAuthenticator radiusd[28758]: (0) # Executing group from file /usr/etc/raddb/sites-enabled/default
2025-09-10T21:37:10.843244-07:00 FortiAuthenticator radiusd[28758]:
(0) Sent Access-Challenge Id 14 from 10.56.y.y:1812 to 10.56.x.x:48304 length 140
2025-09-10T21:37:10.843258-07:00 FortiAuthenticator radiusd[28758]: (0) Message-Authenticator := 0x00
2025-09-10T21:37:10.843272-07:00 FortiAuthenticator radiusd[28758]:
(0) Reply-Message = "+Enter token code or no code to send a notification to your FortiToken Mobile"
2025-09-10T21:37:10.843282-07:00 FortiAuthenticator radiusd[28758]: (0) Fortinet-FAC-Challenge-Code = "001"
2025-09-10T21:37:10.843291-07:00 FortiAuthenticator radiusd[28758]: (0) State = 0x30303030303030303030
2025-09-10T21:37:11.143826-07:00 FortiAuthenticator radiusd[28758]: Waking up in 29.6 seconds.
2025-09-10T21:37:16.158772-07:00 FortiAuthenticator radiusd[28758]: Waking up in 24.6 seconds.
2025-09-10T21:37:16.158813-07:00 FortiAuthenticator radiusd[28758]: Signalled to terminate
2025-09-10T21:37:16.158826-07:00 FortiAuthenticator radiusd[28758]: Exiting normally
Sample FortiSwitch fnbamd debug:
fnbamd_fsm.c[1570] handle_req-Rcvd auth req 1280180224 for user admin.2fa cred_len:8: in group RADIUS_group port= opt=1025 prot=10
fnbamd_fsm.c[1575] handle_req-Rcvd auth group_num:1025: sizeof:10:0:6456 authserver_timeout:5448:
fnbamd_fsm.c[200] create_auth_session-Start and beginning fnbamd_auth_start timeout:7000:
fnbamd_auth.c[354] radius_start-radius_start for usergroup :RADIUS_group:, username :admin.2fa: no. server:1:
fnbamd_auth.c[293] fnbamd_create_radius_socket-Opened radius socket 13
fnbamd_auth.c[293] fnbamd_create_radius_socket-Opened radius socket 14
fnbamd_radius.c[1327] fnbamd_radius_auth_init-svr_idx=0 ctx=0x1ef6860, user=admin.2fa, cred=0x1f334b9, cred_len=8
fnbamd_radius.c[1329] fnbamd_radius_auth_init-auth_prot=0, chap_challenge=(nil), chap_challenge_len=0
fnbamd_radius.c[1770] fnbamd_radius_auth_send-Compose RADIUS request
fnbamd_radius.c[2073] fnbamd_radius_auth_send-Radius auth_send check DNS :10.56.y.y:
fnbamd_radius.c[1718] fnbamd_rad_dns_cb-10.56.y.y->10.56.y.y
fnbamd_radius.c[1614] __send_udp-sending radius udp IPv4 request: fd=13.
fnbamd_radius.c[1657] __fnbamd_rad_send-Sent radius req to server 'radius-fac':
fd=13, is_ipv6:0, IP=10.56.y.y(10.56.y.y:1812) code=ACCESS_REQUEST id=28 len=118 user="admin.2fa" using PAP
fnbamd_auth.c[797] auth_tac_plus_start-Didn't find tac_plus servers (0)
fnbamd_auth.c[491] ldap_start-Didn't find ldap servers (0)
fnbamd_auth.c[1095] fnbamd_auth_start-Auth protocol start
fnbamd_fsm.c[231] create_auth_session-Registering auth timeout :7000:
fnbamd_fsm.c[1998] handle_auth_rsp-handle_auth_rsp: from file descriptor:13:
fnbamd_auth.c[2425] fnbamd_auth_handle_radius_result-Result for vlanId :0: vlanIdName:: tag:0:
fnbamd_radius.c[270] check_response_authenticator-Response authenticator check result:0:.
fnbamd_radius.c[2319] fnbamd_radius_auth_validate_pkt-RADIUS resp code ACCESS_CHALLENGE
fnbamd_auth.c[2461] fnbamd_auth_handle_radius_result-->Result for radius svr 10.56.y.y(0) is FNBAM_CHALLENGED
fnbamd_comm.c[213] fnbamd_comm_send_result-Sending result FNBAM_CHALLENGED for req 1280180224 len 0 class 0:0 filter 0:0
fnbamd_auth.c[435] radius_stop-radius_stop for usergroup :RADIUS_group:, username :admin.2fa:
To log in with a 2FA user configured on a RADIUS server:
Concatenate password and Token (password+Token, for example, 'P@ssword<token>').
FortiSwitch Administration Page with a 2FA user:
Sample FortiAuthenticator Access Log:
|
