Troubleshooting Tip: Office365 Management API - connectivity/pull events troubleshooting tips

[vschmitt_FTNT]

Description	This article describes the configuration of Office365 Management API on FortiSIEM which needs a configuration part on Azure portal and FortiSIEM. This document will describe the different aspects of the configuration and the error messages that can be tracked when the configuration is not compliant or when client credentials have expired.
Scope	FortiSIEM, Office365, Management API.

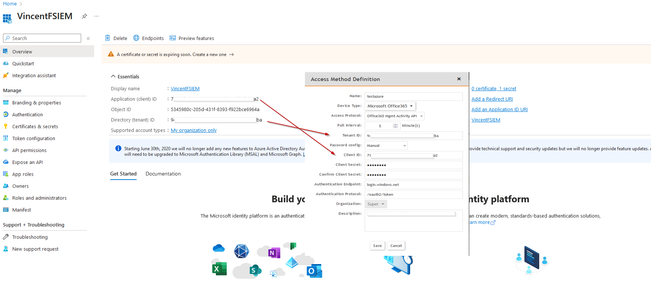

Solution	Integration of Office365 Management API in FortiSIEM needs an Application Registration created on Azure Portal. In FortiSIEM Access Method Definition the following elements need to be reported from that Application : Application (client) ID in the Client ID field. Directory (tenant) ID in the Tenant ID field.  Client Secret in the Client Secret field. Note: Secret ID is not used. Do not put this Secret ID in the Client ID field. Once configured, the following errors will be thrown if there is a misconfiguration or authorization issue. Error Message Phoenix.log trace Possible Issue Possible Fix Office access token empty phDiscover[14057]: [PH_HTTP_CLIENT_GET_INIT_RESPONSE_FAILED]:[eventSeverity]=PHL_ERROR,[procName]=phDiscover,[fileName]=phHttpClient.cpp,[lineNumber]=1018,[infoURL]=https://login.windows.net/9[...]a/oauth2/token,[phLogDetail]=Http client failed to get initial response from URL: https://login.windows.net/9[...]a/oauth2/token. Error response: {"error":"invalid_client","error_description":"AADSTS7000215: Invalid client secret provided. Ensure the secret being sent in the request is the client secret value, not the client secret ID, for a secret added to app '7[...]2'. [...]} The client's secret is not valid. Client ID is not well set Client Secret is not well set Client Secret has been renewed and not updated on FSIEM. Office access token empty phAgentManager[14053]: [PH_HTTP_CLIENT_GET_INIT_RESPONSE_FAILED]:[eventSeverity]=PHL_ERROR,[procName]=phAgentManager,[fileName]=phHttpClient.cpp,[lineNumber]=1018,[infoURL]=https://login.windows.net/9[...]ba/oauth2/token,[phLogDetail]=Http client failed to get initial response from URL: https://login.windows.net/9[...]ba/oauth2/token. Error response: {"error":"invalid_client","error_description":"AADSTS7000222: The provided client secret keys for app '7[...]a2' are expired. Visit the Azure portal to create new keys for your app: https://aka.ms/NewClientSecret, or consider using certificate credentials for added security[...]} The client's secret has expired. Renew the Client secret and update the FSIEM client secret. Invalid Office Authentication phDiscover[14057]: [PH_HTTP_CLIENT_GET_INIT_RESPONSE_FAILED]:[eventSeverity]=PHL_ERROR,[procName]=phDiscover,[fileName]=phHttpClient.cpp,[lineNumber]=1018,[infoURL]=https://manage.office.com/api/v1.0/9[...]ba/activity/feed/subscriptions/list?PublisherIdentifier=9[.... client failed to get initial response from URL: https://manage.office.com/api/v1.0/9[...]ba/activity/feed/subscriptions/list?PublisherIdentifier=9[..... Error response: {"error":{"code":"AF10001","message":"The permission set () sent in the request does not include the expected permission."}} The Azure application does not have enough permission. Add Office365 API permissions and Grant Admin consent.
