Custom Parser Error

[george_omondi]

Hello Team,

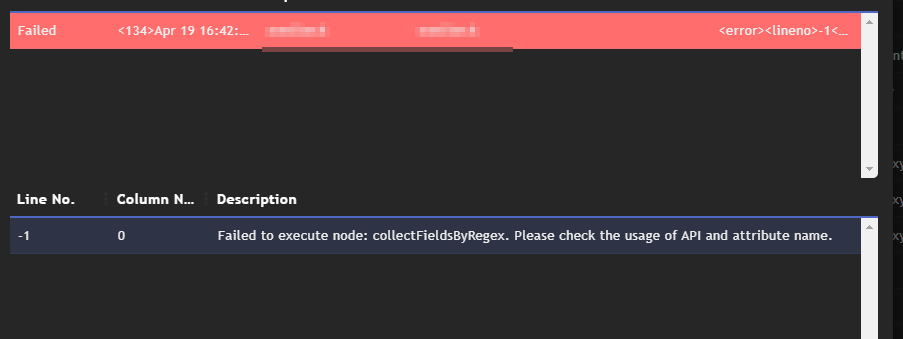

I am new to FortiSIEM and i could be making some obvious mistake but kindly help. We onboarded a custom application onto FSM and wanted to build custom parser so that we can get notified of failed logins. I tried building one and i Keep running into the same issue "Failed to execute node: collectFieldsByRegex. Please check the usage of API and attribute name." Not sure why.. My xml is as below:

<eventFormatRecognizer><![CDATA[SOE: BAD\s+]]></eventFormatRecognizer>
<parsingInstructions>
<collectFieldsByRegex src="$_rawmsg">
<regex><![CDATA[<:gPatSyslogPRI><_mon:gPatMon>\s+<_day:gPatDay>\s+<_time:gPatTime>\s+<reptDevName:gPatHostName>\s+SOE:\s+<_body:gPatMesgBody>]]></regex>
</collectFieldsByRegex>
<collectFieldsByRegex src="$_body">
<regex><![CDATA[?:SIGN-ON <srcIpAddr:gPatIpAddr>\s+\(<:gPatStr>\)\s+<:gPatStr>\s+-\s+d+\s+<:gPatStr>\.<:gPatStr>:\s+<:gPatStr>\s+<:gPatStr>]]></regex>
</collectFieldsByRegex>
<setEventAttribute attr="eventType">Custom App: Failed Login</setEventAttribute>
<setEventAttribute attr="eventSeverity">1</setEventAttribute>
</parsingInstructions>

The Logs am trying to Parse are as below. Changed a few things due to privacy reasons

<134>Apr 20 19:53:14 computerA SOE: BAD SIGN-ON 0T2.2.2.2.1 (CAP34.2.1) CAP34.2 - 1 APP1.MIS: APP1    USERNAME1
<134>Apr 20 19:05:22 computerA SOE: BAD SIGN-ON 9N0T2.3.3.3.1 (THOR1.3.1) THOR1.3 - 1 MICRO PC APP2.MIS: APP2  USERNAME3 USERNAME3 USERNAME3
<134>Apr 19 19:24:29 computerC SOE: BAD SIGN-ON 9N0T1.1.14.1.1 (SPI2.1.1) SPI2.1 - 1 APP3.MIS: APP3  USERNAME44 USERNAME44 USERNAME44
<134>Apr 19 16:42:45 computerD SOE: BAD SIGN-ON 7N0T4.1.4.1.2 (IRN22.1.2) IRN22.1 - 2 APP3.MIS: APP3  USERNAME55 USERNAME55 USERNAME55

[cdurkin_FTNT]

To keep it simple, try this to get you started...

<eventFormatRecognizer><![CDATA[SOE: BAD\s+]]></eventFormatRecognizer>
<parsingInstructions>

<!-- Sample Events
<134>Apr 20 19:53:14 computerA SOE: BAD SIGN-ON 0T2.2.2.2.1 (CAP34.2.1) CAP34.2 - 1 APP1.MIS: APP1 USERNAME1
<134>Apr 20 19:05:22 computerA SOE: BAD SIGN-ON 9N0T2.3.3.3.1 (THOR1.3.1) THOR1.3 - 1 MICRO PC APP2.MIS: APP2 USERNAME3 USERNAME3 USERNAME3
<134>Apr 19 19:24:29 computerC SOE: BAD SIGN-ON 9N0T1.1.14.1.1 (SPI2.1.1) SPI2.1 - 1 APP3.MIS: APP3 USERNAME44 USERNAME44 USERNAME44
<134>Apr 19 16:42:45 computerD SOE: BAD SIGN-ON 7N0T4.1.4.1.2 (IRN22.1.2) IRN22.1 - 2 APP3.MIS: APP3 USERNAME55 USERNAME55 USERNAME55
-->

<collectFieldsByRegex src="$_rawmsg">
<regex><![CDATA[<:gPatSyslogPRI><_mon:gPatMon>\s+<_day:gPatDay>\s+<_time:gPatTime>\s+<reptDevName:gPatHostName>\s+SOE:\s+<_body:gPatMesgBody>]]></regex>
</collectFieldsByRegex>

<collectFieldsByRegex src="$_body">
<regex><![CDATA[BAD SIGN-ON .*<srcIpAddr:gPatIpAddr>\s+<_body2:gPatMesgBody>]]></regex>
</collectFieldsByRegex>

<setEventAttribute attr="eventType">Custom App: Failed Login</setEventAttribute>
<setEventAttribute attr="eventSeverity">1</setEventAttribute>

</parsingInstructions>

[george_omondi]

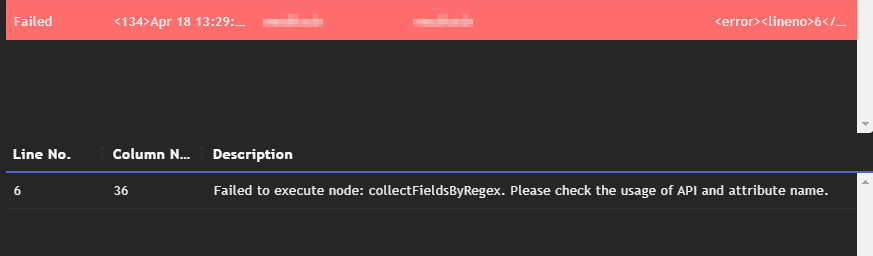

Thank You @cdurkin_FTNT  for the response. Not sure if its my Side but now i am running into the below error:

[cdurkin_FTNT · Accepted solution]

Hard to say .. but the line -1 seems ominous.

Try clearing the parser window completely.. save ..
Re add the parser and try again

[george_omondi]

This worked. Much much appreciated. One more thing.. this "7N0T172.18.5.21.2" wanted to extract the IP which is "172.18.5.21" the last 2 is the session count and the "7N0T" is just a random string appended by the app.. how can i extract that?

[cdurkin_FTNT]

Just update this line...

<regex><![CDATA[BAD SIGN-ON .*<srcIpAddr:gPatIpAddr>\.<dbSessionCount:gPatInt>\s+<_body2:gPatMesgBody>]]></regex>

And choose an appropriate attribute to extract the session count in to ..  (I used DB Session Count in the example above)
