Central Sophos For FortiSIEM

[victorthai]

How do I integrate Sophos Central with my FortiSIEM? The manual says I need an API Key, but in Sophos, I only have a Client ID and Client Secret?

[funkylicious]

1. Login to Sophos Central Website.
2. Go to Global Settings > API Token Management. Click Add Token.
   The Token will display.

Get API Key from Headers (part between x-api-key: and Authorization Basic).

https://docs.fortinet.com/document/fortisiem/7.3.0/external-systems-configuration-guide/750644/sopho...

[victorthai]

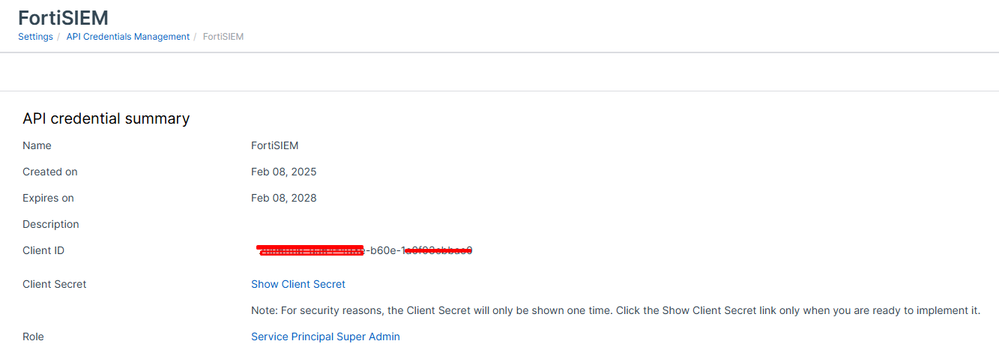

As you can see in the screenshot, only the Client ID and Secret ID appear, which is not the API Key.

[funkylicious]

try this command in order to the get the token/api key and see if it works

curl -XPOST -H "Content-Type:application/x-www-form-urlencoded" \
            -d "grant_type=client_credentials&client_id=<client-id>&client_secret=<client-secret>&scope=token" \
            https://id.sophos.com/api/v2/oauth2/token

[victorthai]

As you can see in the screenshot, only the Client ID and Secret ID appear, which is not the API Key.

[M1kemclain247]

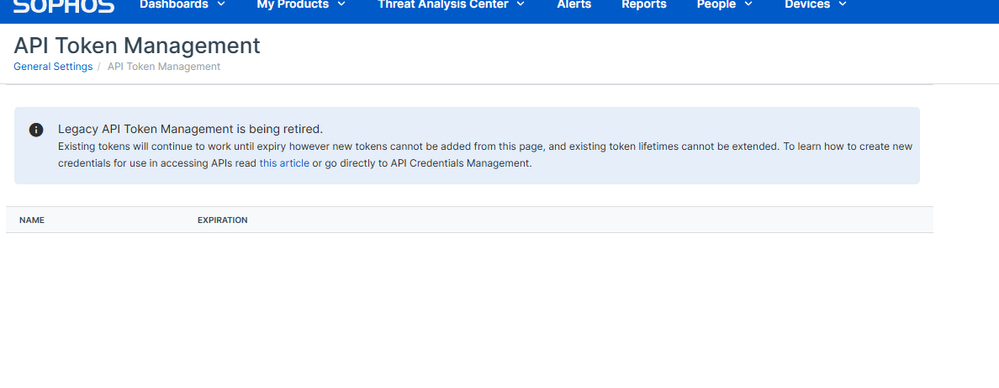

Also struggling with this - it seems Sophos are no longer allowing you to create - API Tokens , and are now enforcing use of API Credentials with Client ID , Secret Key ,

I'm suspecting fortinet might need to review/update the Integration for Sophos Central API to cater for this change?

also need this working ASAP and ive tried different combinations but cannot get this working.

[M1kemclain247]

they no longer use API tokens in their system , u can obtain an "access token" once u authenticate using the Client Secret & Client ID but that access token just allows u to then interact with their API.

[emoran46]

Hi @victorthai

FSM has been patched to support latest Sophos Central changes

You need to use the latest versions
v7.2.5 FortiSIEM works OK
v7.3.2 FortiSIEM works OK

Regards,

[M1kemclain247]

Hi can u show a working example that this worked for u?

right now the current documentation for v 7.3.2 is still outdated and pointing u to setting up API Tokens.

http://docs.fortinet.com/index.php/document/fortisiem/7.3.2/external-systems-configuration-guide/750...

i am running latest build of FortiSIEM upgraded it to - 7.3.2.0374

failed (Sophos Central API Failed with http response code 404)

this Sophos guide will describe and give a sample script of how to connect to the API , for example we are a sophos partner and need to specify a tenant ID

but in fortisiem dont see options for these.

https://support.sophos.com/support/s/article/KBA-000004400?language=en_US
https://github.com/sophos/Sophos-Central-SIEM-Integration

for example running script will give me below info:

Whoami response: b'{"id":"8565f549-ed06-4164-90bf-b127a88c7661","idType":"tenant","apiHosts":{"global":"https://api.central.sophos.com","dataRegion":"https://api-eu01.central.sophos.com"}}'
URL: https://api-eu01.central.sophos.com/siem/v1/events?limit=1000&cursor=VjJfQ1VSU09SfDIwMjUtMDMtMTNUMTk6NDk6NTAuNjM5Wg==​

The furtherest i've gotten is this error below. when i use the URLs that are in the sophos provided script not the URLS from fortisiem documentation.

[M1kemclain247]

here is a sample CURL query that works to pull events from sophos API. the following works to show that u can do it , but within FortiSIEM i  have no idea where the parameters need to be set as the documentation doesn't specify this.

We need x4 items

1. ClientId
2. ClientSecret
3. AccessToken - handled by fortisiem? when logging in.
4. Tenant ID - handled by fortisiem?

1. Access Token

Obtain this by authenticating with your Client ID and Client Secret (from Sophos Central API credentials):

curl -X POST "https://id.sophos.com/api/v2/oauth2/token" \
-H "Content-Type: application/x-www-form-urlencoded" \
-d "grant_type=client_credentials&client_id=YOUR_CLIENT_ID_HERE&client_secret=YOUR_CLIENT_SECRET_HERE&scope=token"

Response will include:

"access_token": "YOUR_ACCESS_TOKEN"

2. Tenant ID

Once you have the token, use it to get your Tenant ID:

curl -X GET "https://api.central.sophos.com/whoami/v1" \
-H "Authorization: Bearer YOUR_ACCESS_TOKEN_HERE"

Response will include:

"id": "YOUR_TENANT_ID",
"apiHosts": {
  "dataRegion": "https://api-eu01.central.sophos.com"
}

3. Pull Events

Now query for SIEM events using the Access Token, Tenant ID, and the correct regional endpoint:

curl -X GET "https://api-eu01.central.sophos.com/siem/v1/events?limit=200" \
-H "Authorization: Bearer YOUR_ACCESS_TOKEN_HERE" \
-H "X-Tenant-ID: YOUR_TENANT_ID_HERE" | \
jq -r '.items[] | [.type, .name, .severity, .location, .when] | @csv' > events.csv

Sample final output from Sophos API Events:

Event::Endpoint::UpdateSuccess	Update succeeded	low	IGNATIUS-LAP	2025-05-23T08:06:54.083Z
Event::Endpoint::Device::AlertedOnly	Peripheral allowed: SAMSUNG Mobile USB Modem	low	DESKTOP-QBECLHU	2025-05-23T08:07:48.596Z
Event::Endpoint::Device::AlertedOnly	Peripheral allowed: Galaxy A06	low	DESKTOP-QBECLHU	2025-05-23T08:07:48.605Z
Event::Endpoint::UpdateSuccess	Update succeeded	low	NITS-NDEGE-VM	2025-05-23T08:09:58.298Z
