Technical Tip: How to create network access policy via RADIUS Request Attribute

[sjerry]

Description	This article describes how to use attributes from a RADIUS Request to create a condition for a user host profile.
Scope	FortiNAC, CentOS, nacOS.

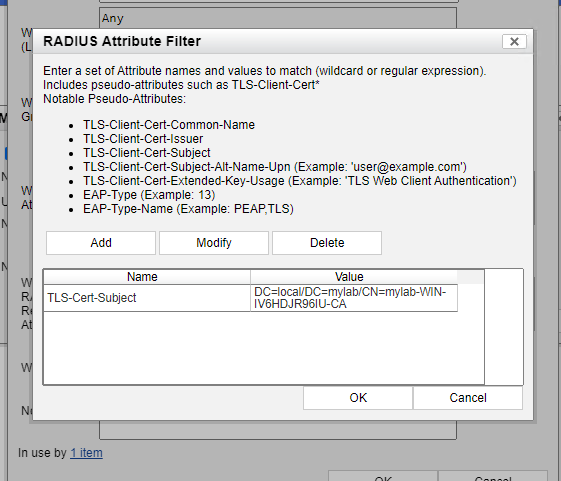

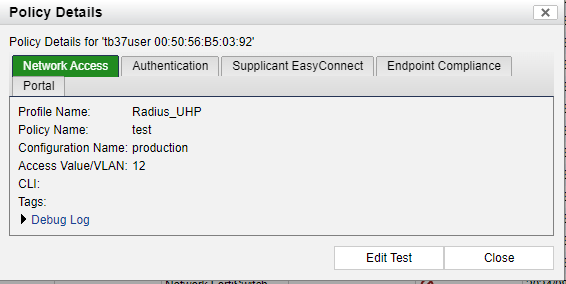

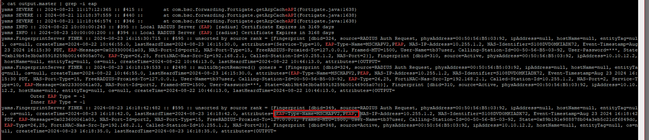

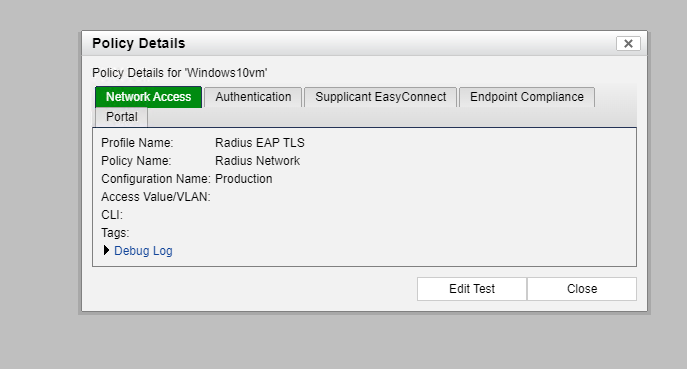

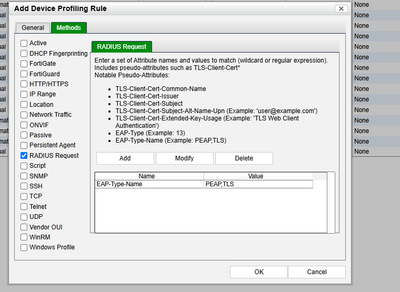

Solution	Enable debugs if needed: CentOS. nacdebug -name FingerprintServer true   > tail -F output.master | grep -i FingerprintServer NacOS. execute-enter shell nacdebug -name FingerprintServer true Examine logs if needed. godzilla # diagnose tail -F output.master | grep -i FingerprintServer Example below include MSCHAPv2, PEAP, and EAP TLS.  MSCHAPv2, PEAP:  The syntax must exactly be the same as what receiving or it is possible to do a '*' if needed.  EAP-Type-Name = MSCHAPv2*   Validate:  Go to users & hosts -> host -> 'right click' -> policy details. EAP TLS. Validate:  Go to users & hosts -> host -> 'right click' -> policy details. Radius Attributes can also be used to register the hosts using a device profiling rule as shown in screenshot below  Users and Hosts -> Device Profiling rules -> Add -> General. Select Methods -> RADIUS -> Fill in RADIUS type and other details as in the example screenshot below: A users and hosts rule can be created using role information the host will receive from step 1.
