Technical Tip: How to get an SD-WAN health-check (SLA) log using FortiManager API

[tnesh]

Description

This article describes how to get an SD-WAN health-check (SLA) log using FortiManager API.

Scope

FortiManager.

Solution

• Following API URL provides SD-WAN health-check (SLA) logs:



  "url": "/rtm/global/rhistory/monitor/sd-wan-sla-log/device/<device-name>"




  • Sample JSON-API:



    {
    "method": "get",
    "params": [
      {
         "url": "/rtm/global/rhistory/monitor/sd-wan-sla-log/device/fgt-lab"
      }
    ],
    "session": "{{session}}",
    "id": 1
    }

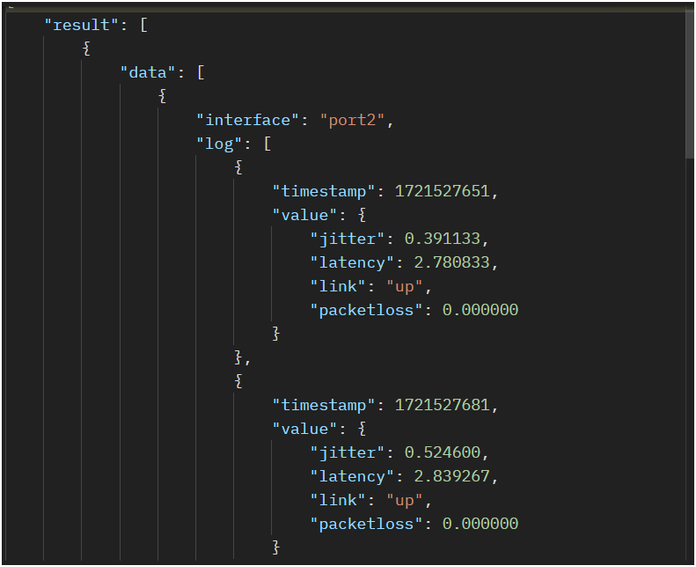

  • Sample Output:





• To filter certain timestamps, it can be possible to use the following API filter:



  {
  "method": "get",
  "params": [
    {
       "url": "/rtm/global/rhistory/monitor/sd-wan-sla-log/device/fgt-lab",
       "filter": {
          "timestamp": [
             [
             "start",
             "==",
             1721527651
             ],
             [
             "end",
             "==",
             1721527681
             ]
          ],
          "key": [
             [
             "name"
             ],
             [
             "interface"
             ]
           ]
       }
    }
  ],
  "session": "{{session}}",
  "id": 1
  }

  • Sample output:



Note:

For a complete list of FortiManager API calls, refer to Fortinet Development Network (FNDN).
