Technical Tip: How to configure Radius over TLS (RADSEC) using FortiAuthenticator as Radius Server

[tnesh]

Description	This article describes how to configure Radius over TLS (RADSEC) using FortiAuthenticator as Radius server.
Scope	FortiManager/FortiAnalyzer v7.4.6, v7.6.2 and above.

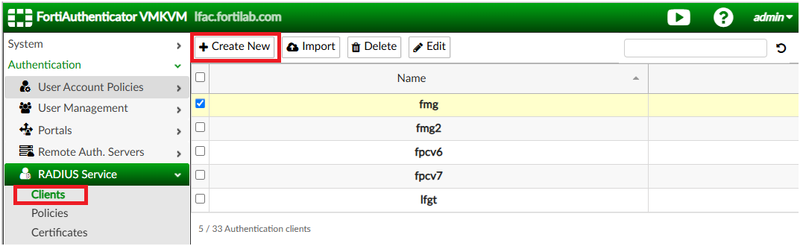

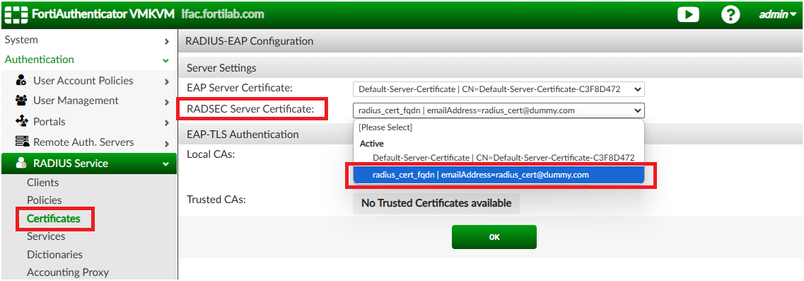

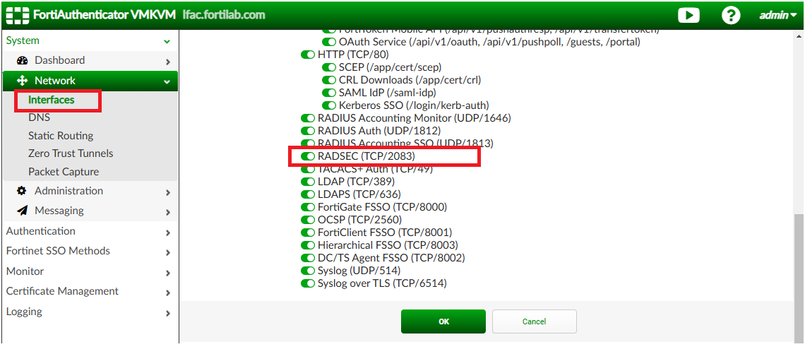

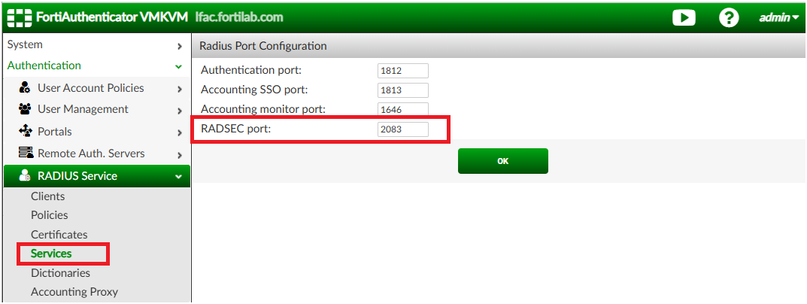

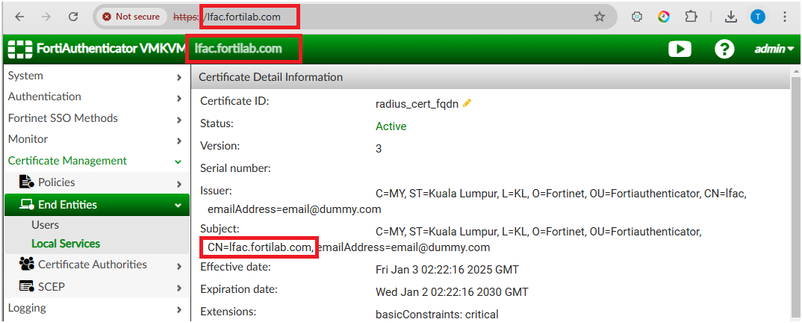

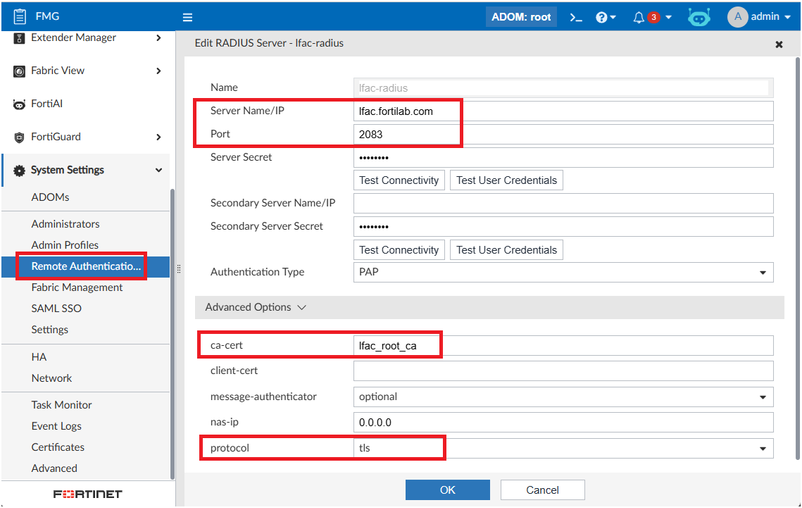

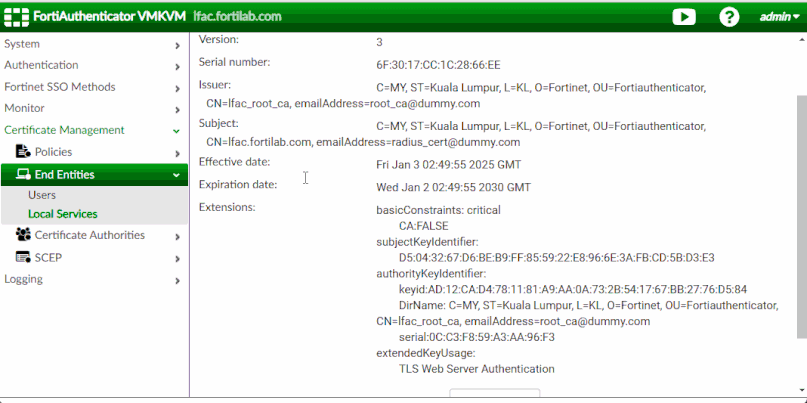

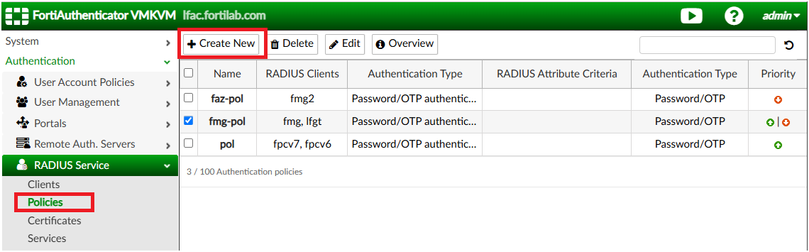

Solution	FortiAuthenticator: Make sure FortiAuthenticator has enabled RADSEC: FortiAuthenticator -> System -> Network -> Interfaces -> Enable RADSEC. Make sure RADSEC certificate -> CN has FortiAuthenticator FQDN: 'radius_cert_fqdn' will be used as the RADSEC server certificate in this example. FortiAuthenticator FQDN: lfac.fortilab.com. Export the CA certificate that is used to sign the RADSEC certificate. 'lfac_root_ca' (FortiAuthenticator Local CA) is used to sign the 'radius_cert_fqdn' certificate. Create new Radius Clients: FortiAuthenticator -> Authentication -> RADIUS Service -> Clients -> Create New. Create new Radius Policies: FortiAuthenticator -> Authentication -> RADIUS Service -> Policies -> Create New. Select RADSEC Server certificate: FortiAuthenticator -> Authentication -> RADIUS Service -> Certificates -> Select the correct certificate. RADSEC port: FortiAuthenticator -> Authentication -> RADIUS Service -> Services -> Capture/edit RADSEC port. Allow RADIUS authentication for FortiAuthenticator users: FortiAuthenticator -> Authentication -> User Management. FortiManager: Import RADSEC server certificate: FortiManager -> System Settings -> Certificates -> Import -> CA Certificate. Create and configure Radius remote authentication server: FortiManager -> System Settings -> Remote Authentication server -> Create New -> Radius Server. Server Name/IP <Radius server FQDN> Port 2083 (radsec default port) Server Secret <radius secret> Authentication Type <radius authentication method> ca-cert <radsec server certificate> protocol tls Create Administrator with RADIUS type: Wildcard users will be used as an example: FortiManager -> System Settings -> Administrators -> Create New. Test Scenario: Go to FortiManager/FortiAnalyzer GUI and log in with the Radius user. Troubleshooting guide: Enable debugging and look for any error message from the debug output: diagnose debug application auth 255 diagnose debug timestamp enable diagnose debug enable Once debug is enabled, log in with the Radius user and verify the debug output log. Sample output: FMG # diag debug application auth 255 FMG # diag debug timestamp enable FMG # diag debug enable 2025-01-03 11:26:46 s81: auth request: user=rad-rw from=GUI(10.10.0.21) 2025-01-03 11:26:46 s81: wildcard admin: radius-rw 2025-01-03 11:26:46 s81: start radius: lfac-radius 2025-01-03 11:26:46 s81:lfac-radius: connecting to server 0: lfac.fortilab.com ip=10.10.10.10 port=2083/tcp 2025-01-03 11:26:46 s81:lfac-radius: send request: type=pap id=26 2025-01-03 11:26:46 s81:lfac-radius: TLSv1.3 connected using TLS_AES_256_GCM_SHA384 2025-01-03 11:26:46 s81:lfac-radius: got reply: code=accept(2) id=26 2025-01-03 11:26:46 s81:lfac-radius: Ftnt-Group: write 2025-01-03 11:26:46 s81:lfac-radius: success 2025-01-03 11:26:46 s81: wildcard admin matched: radius-rw 2025-01-03 11:26:46 s81: auth result: success To disable debug output: diagnose debug reset diagnose debug disable
