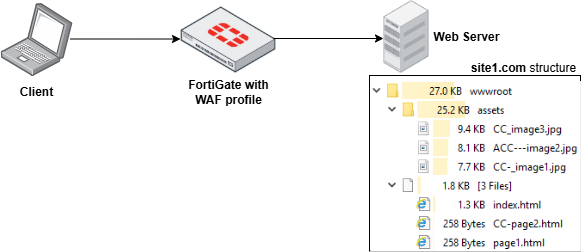

The FortiGate device is configured with a policy that uses a WAF profile and an SSL Inspection profile, as shown in the following diagram.

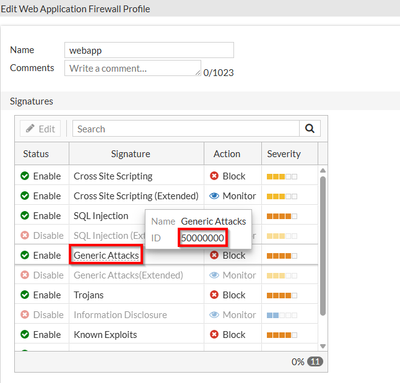

- WAF profile configuration.
- SSL Inspection configuration.
The website contains three images (as seen on the site1.com structure), and one of them, the name starts with CC-.
When accessing the website, this is the aspect.

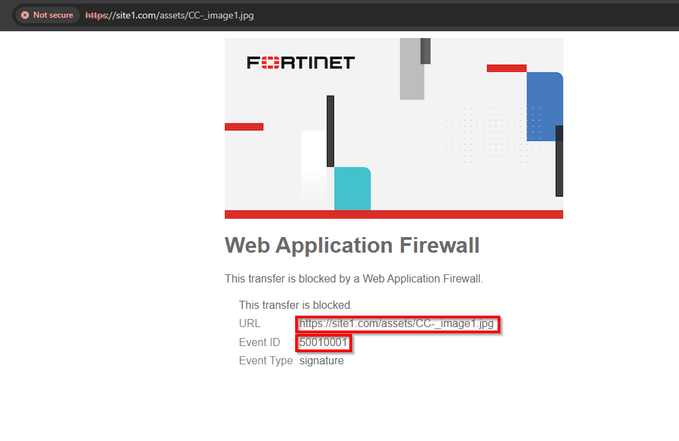

Image 1 (CC-_image1.jpg) was not loaded, and when clicked on image the connection is blocked.
This happens because the name starts with 'CC-', and this is detected as a shell command by WAF (signature 50010001), and it is blocked.
FGT # diagnose waf dump
main classes:
10000000 - Cross Site Scripting
20000000 - Cross Site Scripting (Extended)
30000000 - SQL Injection
40000000 - SQL Injection (Extended)
50000000 - Generic Attacks
60000000 - Generic Attacks(Extended)
70000000 - Trojans
80000000 - Information Disclosure
90000000 - Known Exploits
100000000 - Credit Card Detection
110000000 - Bad Robot
sub classes:
50010000 - OS Command Injection Attacks
...
FGT # diagnose waf dump | grep 50010001
50010001 - This signature prevents attackers from accessing OS commands.
This detection can be observed in the WAD debug logs.
fmt:idxIDX name idx=67, priority:u=2, i enc_len=5,huf=1
0783:h2s=0x7f9e55f30688,strm_id=00003,h2dd=0x7f9e55f30970,curr_sz=1388, max_sz=4096, entry_cnt=20
[I]2025-08-21 04:19:16.976645 [p:805][s:9407][r:973078530] wad_dump_http_request :2915 hreq=0x7f9e55f3d8e8 Received request from client: 10.1.192.20:52542
GET /assets/CC-_image1.jpg HTTP/1.1
Host: site1.com
sec-ch-ua-platform: "Windows"
user-agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/138.0.0.0 Safari/537.36
sec-ch-ua: "Not)A;Brand";v="8", "Chromium";v="138", "Google Chrome";v="138"
sec-ch-ua-mobile: ?0
accept: image/avif,image/webp,image/apng,image/svg+xml,image/*,*/*;q=0.8
sec-fetch-site: same-origin
sec-fetch-mode: no-cors
sec-fetch-dest: image
referer: https://site1.com/
accept-encoding: gzip, deflate, br, zstd
accept-language: en-US,en;q=0.9
priority: u=2, i
[V]2025-08-21 04:19:16.976654 [p:805][s:9407][r:973078530] wad_http_marker_uri :1270 path=/assets/CC-_image1.jpg len=22
[V]2025-08-21 04:19:16.976659 [p:805][s:9407][r:973078530] wad_http_parse_host :1649 host_len=9
[I]2025-08-21 04:19:16.976664 [p:805][s:9407][r:973078530] wad_http_parse_host :1681 host=[9]site1.com
[I]2025-08-21 04:19:16.976669 [p:805][s:9407][r:973078530] wad_http_str_canonicalize :2196 enc=0 path=/assets/CC-_image1.jpg len=22 changes=0
[V]2025-08-21 04:19:16.976674 [p:805][s:9407][r:973078530] wad_http_normalize_uri :2586 host_len=9 path_len=22 query_len=0
[I]2025-08-21 04:19:16.976679 [p:805][s:9407][r:973078530] wad_http_req_detect_special :16110 captive_portal detected: false, preflight=(null)
[V]2025-08-21 04:19:16.976684 [p:805][s:9407][r:973078530] wad_http_req_exec_act :14497 request(0x7f9e55f3d8e8), intercept(pass), block(0)
[V]2025-08-21 04:19:16.976688 [p:805][s:9407][r:973078530] wad_http_req_exec_act :14586 dst_addr_type=1 wc_nontp=0 sec_web=1 web_cache=0 req_bypass=1
[I]2025-08-21 04:19:16.976696 [p:805][s:9407][r:973078530] wad_http_urlfilter_check :386 uri_norm=1 inval_host=0 inval_url=0 scan-hdr/body=1/0 url local=0 block=0 user-cat=0 allow=0 ftgd=0 keyword=0 wisp=0
[I]2025-08-21 04:19:16.976702 [p:805][s:9407][r:973078530] wad_http_req_proc_waf :1375 req=0x7f9e55f3d8e8 ssl.deep_scan=1 proto=10 exempt=0 waf=(nil) body_len=18446744073709551615 ua=Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/138.0.0.0 Safari/5
37.36 skip_scan=0
[I]2025-08-21 04:19:16.976707 [p:805][s:9407][r:973078530] wad_http_waf_access_control :1239
[I]2025-08-21 04:19:16.976712 [p:805][s:9407][r:973078530] wad_http_req_proc_waf_body :1334
[V]2025-08-21 04:19:16.976716 [p:805][s:9407][r:973078530] wad_http_req_proc_waf_body :1353 WAF Calling waf
[I]2025-08-21 04:19:16.976720 [p:805][s:9407][r:973078530] wad_http_waf_check_req :1202 WAF sanity check msg=0x7f9e55f3d8e8 rid=72
...
[I]2025-08-21 04:19:16.976787 [p:805][s:9407][r:973078530] wad_waf_sig_match_request :426 WAF sig=20000182 sig_flags=0xc0 kw_sig_flags=0xc0 check_body_args=0 body_bypass=1
[I]2025-08-21 04:19:16.976792 [p:805][s:9407][r:973078530] wad_waf_pattern_line_should_match :764 WAF check hdr_id=41 name=Host: extra=0x7f9e55da19d8 negate=1
[I]2025-08-21 04:19:16.976797 [p:805][s:9407][r:973078530] wad_waf_pattern_line_should_match :779 WAF node->id=69
WAF data=Host ret=0/-1/-1
WAF data=Host: site1.com
ret=0/-1/-1
...
[I]2025-08-21 04:19:16.976916 [p:805][s:9407][r:973078530] wad_waf_sig_match_request :426 WAF sig=50010001 sig_flags=0x20 kw_sig_flags=0x420 check_body_args=0 body_bypass=1
WAF data=/assets/CC-_image1.jpg ret=1/7/11
[I]2025-08-21 04:19:16.976923 [p:805][s:9407][r:973078530] wad_waf_match_signatures :755 WAF sig=50010001 matched action=1 severity=1
[I]2025-08-21 04:19:16.976942 [p:805][s:9407][r:973078530] wad_http_parse_referer_hline :4141 referer_len 18
[I]2025-08-21 04:19:16.976950 [p:805][s:9407][r:973078530] wad_http_waf_check_signature :1170 WAF signature-based attack detected msg=0x7f9e55f3d8e8
[I]2025-08-21 04:19:16.976956 [p:805][s:9407][r:973078530] __wad_http_build_replmsg_resp :789 Generating replacement message. WAF attack detected repmsg_id 62
[V]2025-08-21 04:19:16.976967 [p:805][s:9407][r:973078530] wad_mem_c_malloc :138 size 32770 exceeds max_elm_size (18392); not using bucket
[V]2025-08-21 04:19:16.977084 [p:805][s:9407][r:973078530] wad_mem_c_malloc :138 size 30350 exceeds max_elm_size (18392); not using bucket
[V]2025-08-21 04:19:16.977128 [p:805][s:9407][r:973078530] wad_http_msg_start_setup_proc :2248 msg(0x7f9e55f3d8e8) proc-setup started from: req_resp_ready.
[V]2025-08-21 04:19:16.977133 [p:805][s:9407][r:973078530] wad_http_def_proc_msg_plan :2210 msg(0x7f9e55f3d8e8) setting up processor(req_resp_ready)
[V]2025-08-21 04:19:16.977137 [p:805][s:9407][r:973078530] wad_http_msg_start_setup_proc :2248 msg(0x7f9e550b4c68) proc-setup started from: resp_forward.
[V]2025-08-21 04:19:16.977144 [p:805][s:9407][r:973078530] wad_http_def_proc_msg_plan :2210 msg(0x7f9e550b4c68) setting up processor(resp_forward)
[I]2025-08-21 04:19:16.977149 [p:805][s:9407][r:973078530] wad_dump_fwd_http_resp :2936 hreq=0x7f9e55f3d8e8 Forward response from Internal:
HTTP/1.1 403 Forbidden
Connection: close
Content-Type: text/html
Cache-Control: no-cache
X-Frame-Options: SAMEORIGIN
X-XSS-Protection: 1; mode=block
X-Content-Type-Options: nosniff
Content-Security-Policy: frame-ancestors 'self'
Content-Length: 35026
Workaround: To resolve this issue, rename the files to avoid the CC- prefix, or alternatively, use FortiWeb, which offers more advanced features.
Troubleshooting Tip: Understand how WAF signatures are evaluated and logs are generated.
|
