Troubleshooting Tip: Duplicate IP or IP conflict caused by FortiGate

[vbandha]

Description	This article describes troubleshooting steps if getting a Duplicate IP message or IP conflict log.
Scope	v7.0+.

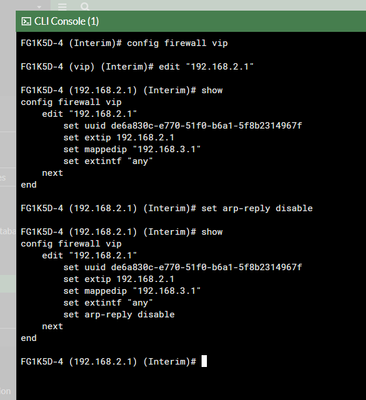

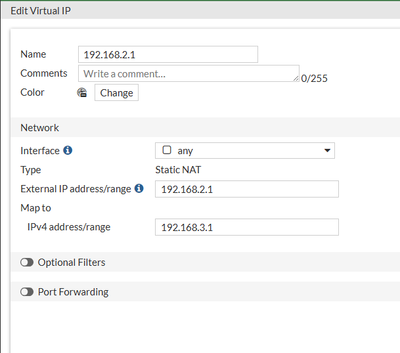

Solution	If getting a Windows event notification that there is an IP conflict, and the Mac address of that is matching with FortiGate, then it may be related to the IP Pool or Virtual IP configuration. If, for example, an IP Conflict for 192.168.2.1 is shown, then an IP Pool similar to this should exist: Here, disable the ARP Reply option and select ‘Ok’. Then a configuration should appear as shown below: The same steps can be applied if a Virtual IP is the cause of the conflict. The external address is 192.168.2.1, so this issue would be present: Click on 'Edit in CLI', then set 'arp-reply' to disable: This should resolve the IP Conflict. With the ARP reply enabled, FortiGate responds to ARP requests which can cause IP conflict in the environment. In specific versions of FortiOS, the addresses of IP Pools and the external address of Virtual IPs are considered as local IPs. In other words, they are 'owned' by the firewall, and the firewall will reply to an ARP for one of these addresses. More details on this change can be seen here: Technical Tip: IP pool and virtual IP behavior changes in FortiOS 6.4, 7.0, 7.2, and 7.4.
