How to add unique DHCP lease time for spe...

FortiGate

FortiGate Next Generation Firewall utilizes purpose-built security processors and threat intelligence security services from FortiGuard labs to deliver top-rated protection and high performance, including encrypted traffic.

Article Id 249778

Description

This article describes how to add a unique DHCP lease time to a Specific IP range under the same DHCP server.

Scope

7.2.4 onwards.

Solution

There might be a requirement where a specific set of IP ranges needs a higher DHCP lease and others need a lower DHCP lease time under the same DHCP server.

In the below example:

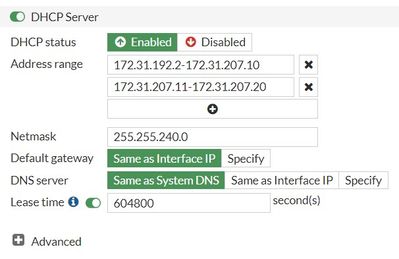

DHCP server has a global lease time of 7 days (604800 seconds).

1) First IP range will use the global DHCP lease time.
2) Second IP range will use 1 hour (3600 secs) as its DHCP lease time (only available over CLI).

# config system dhcp server

edit 2
set dns-service default
set default-gateway 172.31.205.234
set netmask 255.255.240.0
set interface "port3"
# config ip-range
edit 1
set start-ip 172.31.192.2
set end-ip 172.31.207.10
next
edit 2
set start-ip 172.31.207.11
set end-ip 172.31.207.20
set lease-time 3600
next
end
next
end
