In this design:
- The 'OPNsense BIND server' is the authoritative master for 'corp.local' and FortiGate is configured as a secondary (slave).
- The FortiGate is the authoritative master for 'branch.local' and OPNsense is configured as a secondary (slave).
- The two sites are interconnected via VXLAN-over-IPsec, providing resilient transport for zone transfers (AXFR/IXFR).
This setup ensures both sites have authoritative DNS information for both zones.
Topology:
Site A (OPNsense) Site B (FortiGate)
┌────────────────────────┐ ┌────────────────────────┐
│ OPNsense + BIND │ │ FortiGate 60F │
│ 10.10.12.100 │ │ 192.168.2.1 │
│ │ │ │
│ Master: corp.local │◄─────────AXFR──────│ Secondary: corp.local│
│ Slave : branch.local │───────AXFR────────►│ Master: branch.local │
└────────────────────────┘ VXLAN/IPsec └────────────────────────┘
- Site B to Site A arrow: 'corp.local' replicated from OPNsense → FortiGate.
- Site A to Site B arrow: 'branch.local' replicated from FortiGate → OPNsense.
FortiGate: corp.local Secondary, branch.local Primary.
Configure FortiGate as a slave for 'corp.local' and as a master for 'branch.local':
config system dns-database
edit "branch.local"
set status enable
set domain "branch.local"
set type primary
set view public
set ttl 86400
set authoritative enable
unset forwarder
set forwarder6 ::
set source-ip 0.0.0.0
set source-ip6 ::
unset allow-transfer
set primary-name "dns"
set contact "host"
next
edit "corp.local"
set status enable
set domain "corp.local"
set type secondary
set view public
set authoritative enable
unset forwarder
set forwarder6 ::
set source-ip 192.168.2.1
set source-ip6 ::
set rr-max 16384
set ip-primary 10.10.12.100
next
end
config system dns-server
edit "internal1"
set mode non-recursive
next
edit "to OPNsense"
set mode non-recursive
next
end
VXLAN over IPsec Transport:
- VXLAN tunnel ('vxlan-over-ipsec') established between OPNsense (10.10.12.100) and FortiGate (192.168.2.1).
- Ensure UDP/4789 is allowed inside the IPsec selector.
- Allow TCP/53 and UDP/53 over the VXLAN/IPsec path for zone transfers and DNS queries.
Verification.

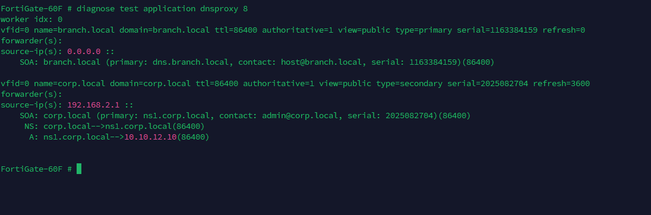

On FortiGate:
After a zone update:

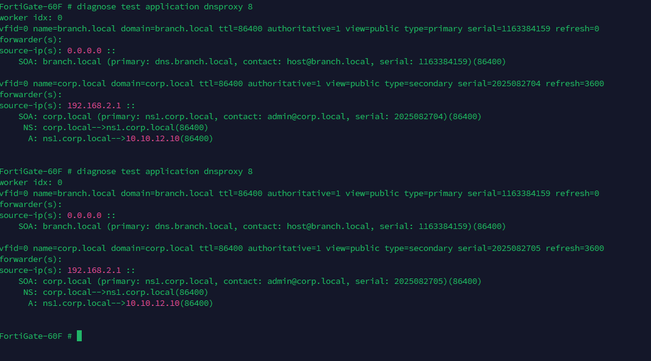

confirm FortiGate corp.local secondary serial increased matching OPNsense:
diagnose debug reset
diagnose debug application dnsproxy -1
diagnose debug enable
Further zone update originated from Master (Opnsense).

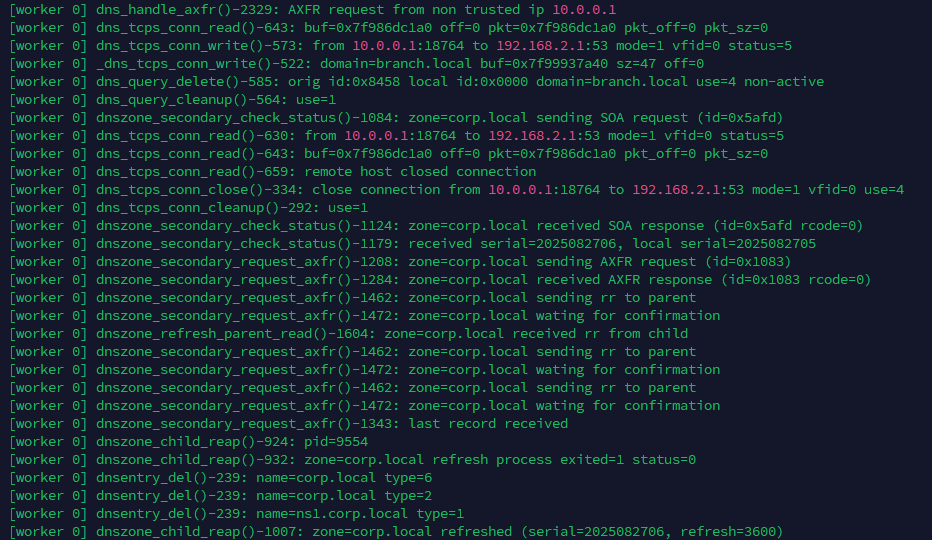

Debug output:
Test from client behind FortiGate firewall:
Benefits:
- Layer 2 reachability over any IP network using VXLAN.
- DNS zone transfers happen as if both servers were on the same LAN segment.
- Secure separation from other traffic with dedicated VNI and firewall rules.
- Flexibility to run other Layer 2 dependent services across sites.
|
