Technical Tip: UTM Application control logging

[Sabk_FTNT]

Description

This article discusses how application Control generates two logs by default: 'Traffic' log and 'Application Control' log.

This article explains the differences between these log messages and explains how to disable one type of logging or the other.

Scope

FortiGate, UTM Application control logging.

Solution

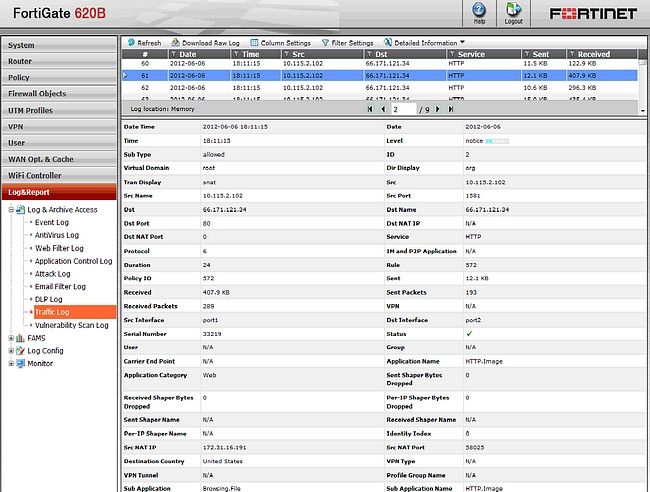

Traffic log message generated by UTM application control:

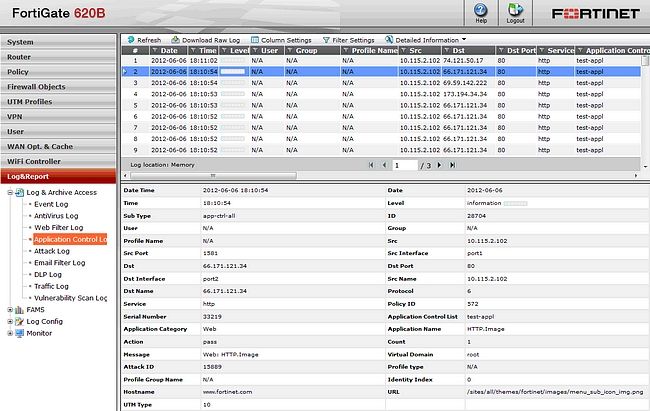

Application control log message:

These two log messages correspond to the same traffic flow.

The information found in only one type of log is:

In the Traffic log only:

• Volume of traffic (sent and received bytes, sent and received packets).
• Traffic shaping counters.
• NAT details (source and destination NAT).
• VPN details.

In Application log only:

• Application Control list.
• Message.
• Attack ID.
• UTM type.

Disabling Application Control log (CLI only).

At the application control list level, by using set log disable.

For example:

config application list
   edit "test-appl"
       config entries
           edit 1
               set action pass
               set application 16339 15889
               set log disable
        next

Disabling Traffic Log for Application Control events (CLI only)

At the policy level, by usingthe  set logtraffic-app disable.

For example:

config firewall policy
   edit 572
      set srcintf "port1"
      set dstintf "port2"
      set srcaddr "all"
      set dstaddr "all"
      set action accept
      set schedule "always"
      set service "ANY"
      set utm-status enable
      set logtraffic-app disable
      set application-list "test-appl"
      set profile-protocol-options "default"
   next
end

With v4.0 MR3, a new default logging behavior of application control was introduced: by default, application control generates logs in 'Traffic Log' and in 'Application Control Log'.

With v5.0, this behavior will chang,e and by default, the application log will generate a log only in 'Traffic Log'.

Note:

On the newest versions of the FortiOS, including branches v7.4.x and v7.6.x, the configuration to enable logging for specific categories looks like below:

config application list
    edit "app_unsecure_protocols_monitoring"
       set other-application-log enable
       set unknown-application-log enable
       config entries
         edit 2
            set category 2 3 5 6 7 8 12 15 17 21 22 23 25 28 29 30 31
            set action pass
         next
        end
    next
end

By default, if not specified as disabled, the logging is enabled for these entries:

FortiGate (app_unsecure_pro~ing) # show full-configuration

config application list
    edit "app_unsecure_protocols_monitoring"
       set comment ''
       set replacemsg-group ''
       set extended-log disable
       set other-application-action pass
       set app-replacemsg enable
       set other-application-log enable
       set enforce-default-app-port disable
       set force-inclusion-ssl-di-sigs disable
       set unknown-application-action pass
       set unknown-application-log enable
       unset p2p-block-list
       set deep-app-inspection enable
       set options allow-dns
       config entries
           edit 2
              set category 2 3 5 6 7 8 12 15 17 21 22 23 25 28 29 30 31
              set protocols all
              set vendor all
              set technology all
              set behavior all
              set popularity 1 2 3 4 5
              set action pass
              set log enable
              set log-packet disable
              set session-ttl 0
              set shaper ''
              set shaper-reverse ''
              set per-ip-shaper ''
              set quarantine none
            next
         end
         set control-default-network-services disable
      next
end

To get the list of applications on the same security profile, the following configuration can be used:

FortiGate (app_unsecure_pro~ing) # config entries

FortiGate (entries) # edit 2

FortiGate (2) # set category ?
ID Select Category ID
2 P2P
3 VoIP
5 Video/Audio
6 Proxy
7 Remote.Access
8 Game
12 General.Interest
15 Network.Service
17 Update
21 Email
22 Storage.Backup
23 Social.Media
25 Web.Client
26 Operational.Technology
28 Collaboration
29 Business
30 Cloud.IT
31 Mobile
32 Unknown Applications
36 GenAI

Related article:
Technical Tip: Display application control signature logs from CLI
