Technical Note: Scheduled traffic shaping with FortiOS v5.4

[mhornung]

Description

This article explains how to achieve scheduled traffic shaping in IPv4 policies.  For example, to have policies being shaped during office hours, but not shaped out of office hours.

Solution

1. Create a new schedule for office hours.

2. Create a policy on top of the policy that is allowing the traffic 'always'.

3. Configure the shaper in the scheduled policy via CLI:

# config firewall policy
# edit 10
# set traffic-shaper shared-1M-pipe
# set traffic-shaper-reverse shared-1M-pipe
# next
# end

4. Check shaper being configured:

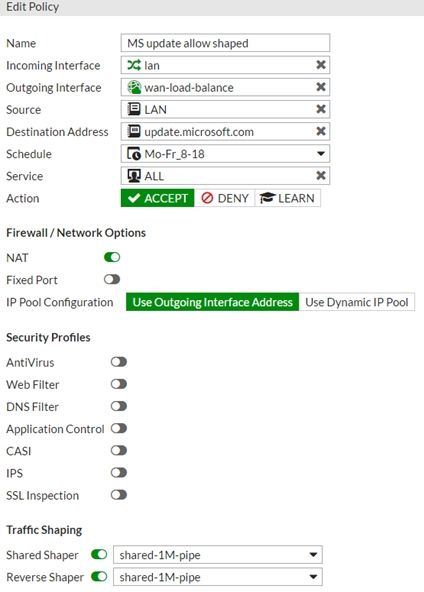

GUI:

CLI:

# show firewall policy 10
config firewall policy
    edit 10
        set name "MS update allow shaped"
        set uuid cf1129d2-07ec-51e7-d69a-f6cff3bc9057
        set srcintf "lan"
        set dstintf "virtual-wan-link"
        set srcaddr "LAN"
        set dstaddr "update.microsoft.com"
        set action accept
        set schedule "Mo-Fr_8-18"
        set service "ALL"
        set traffic-shaper "shared-1M-pipe"
        set traffic-shaper-reverse "shared-1M-pipe"
        set nat enable
    next
end
