Quick setup of Layer 2 Tunneling Protocol (L2TP) VPN using FortiOS firmware version 4.0 and above

[#1]

Description
One option for creating a Virtual Private Connection (VPN) using a FortiGate unit is the use of L2TP.  This article describes the steps required to make a Layer 2 Tunneling Protocol (L2TP) VPN using FortiOS firmware version 4.00 MR2 or MR3.

Scope

Layer 2 Tunneling Protocol (L2TP) VPN configuration using:

FortiOS firmware version 4.00 MR2

FortiOS firmware version 4.00 MR3

Solution
Use the following CLI commands to configure Layer 2 Tunneling Protocol (L2TP) VPN with FortiOS version 4.00 MR2 or MR3. Configuring L2TP using the web based manager is not supported.

config vpn l2tp

  set status enable

  set sip 10.11.12.100

  set eip 10.11.12.200

  set usrgrp l2tpgrp

end

For the commands above, you must first set up a user group. To do this, go to User > User Group.

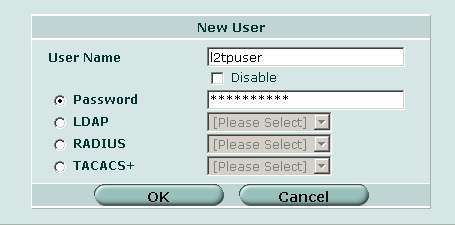

New User

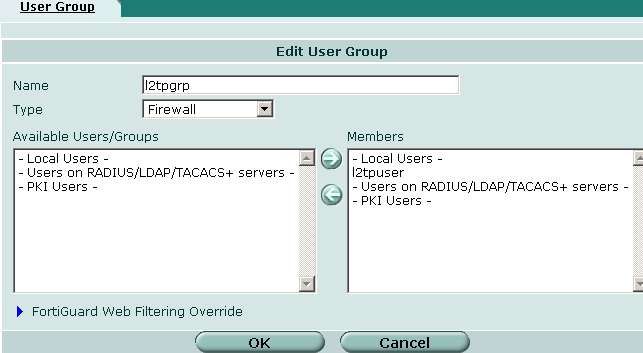

User Group

Create a Address object for the L2TP range as below

config firewall address
    edit "l2tp_range"
        set type iprange
        set end-ip 10.11.12.200
        set start-ip 10.11.12.100
    next
end

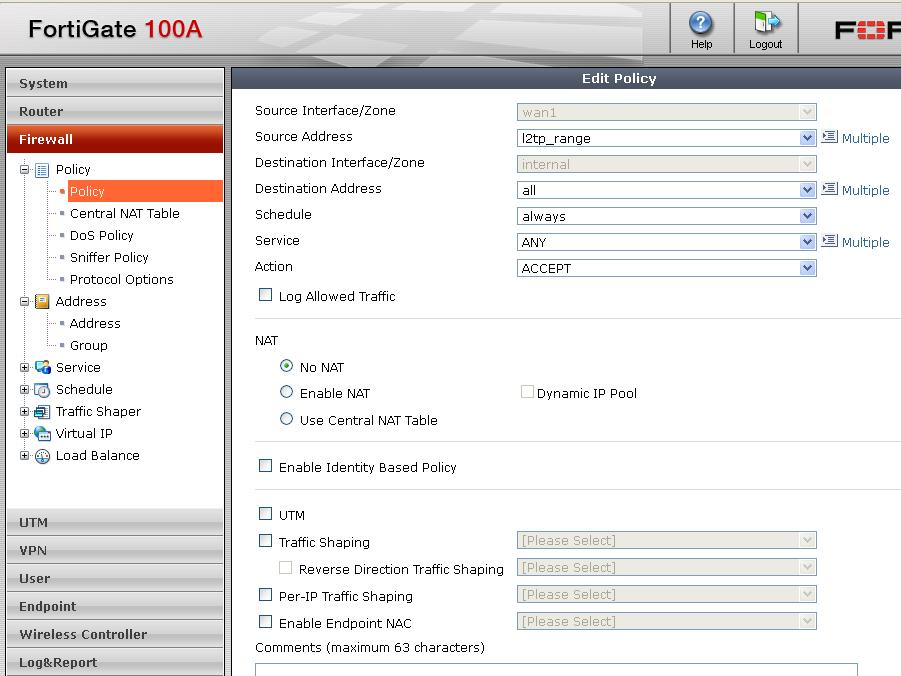

Then configure the firewall policy as below

config firewall policy
 edit 1
        set srcintf "wan1"
        set dstintf "internal"
            set srcaddr "l2tp_range"
            set dstaddr "all"
        set action accept
        set schedule "always"
            set service "ANY"
    next
end



Then configure the in-built microsoft client as below

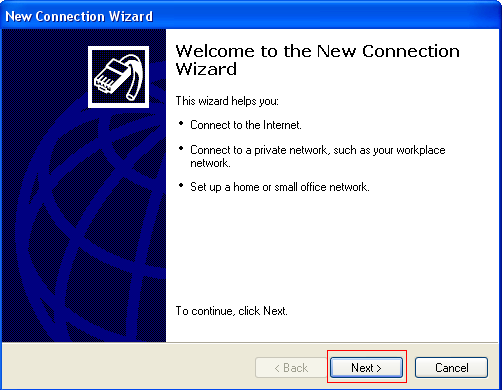

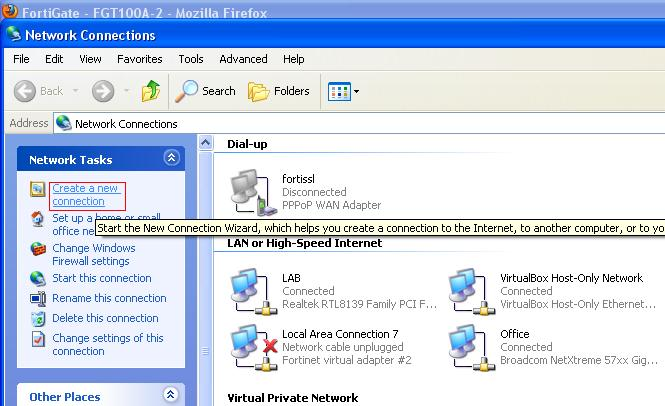

Step 1:

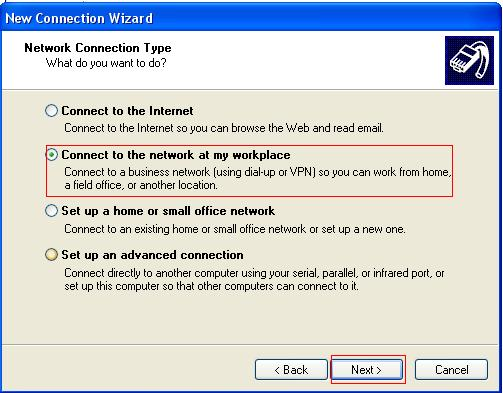

Step 2:

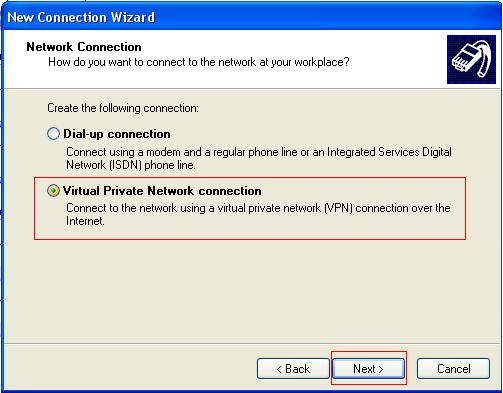

Step 3:

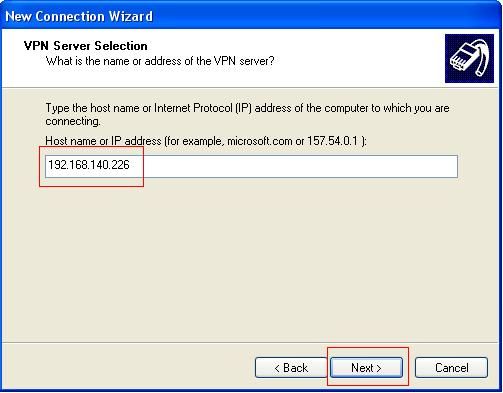

Step 4:

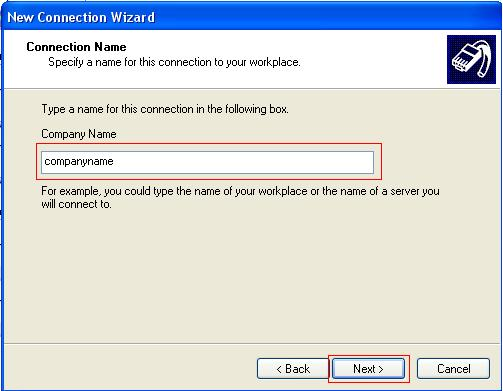

Step 5:



Step 6:



Step 7:



Step 8:



Final step to connect L2TP VPN

To check the logs, run the below Debug commands on the Fortigate unit:

diag debug reset
diag debug disable
diag debug appl l2tp -1
diag debug enable
