We have a design and how to question regarding fortigate implementation :

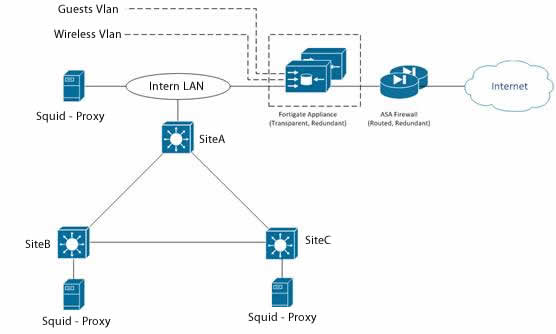

Attached you will find the network diag, the implementation should meet all the criteria below :
- Redundant firewall configuration based on. 2 Fortigate appliances in High Availability mode;
-The appliance (s) are set to transparent mode in the network (not routed!)
-The appliance filters Transparently a trunk connection, where multiple VLANs go over it ;
- Multi-Context mode, using 3x virtual firewalls for 3 different networks going over one trunk (for corp, guest and WLAN traffics), Filtering traffic of AV, URL and email (including spam)
-Different Policies for filtering rules for different virtual domains
- MS AD integration ....
Can you please advise which model can be used and how to achieve these requirements?
