Azure vWAN SLB applies-on gives "invalid ingress public IP"

[WilmerWubs]

I'm configuring internet inbound rules for Azure vWAN SLB using FortiManager 7.4.6 and FortiGate NVA 7.4.7.

I am having the error on this step: https://docs.fortinet.com/document/fortigate-public-cloud/7.4.0/azure-vwan-sd-wan-ngfw-deployment-gu...

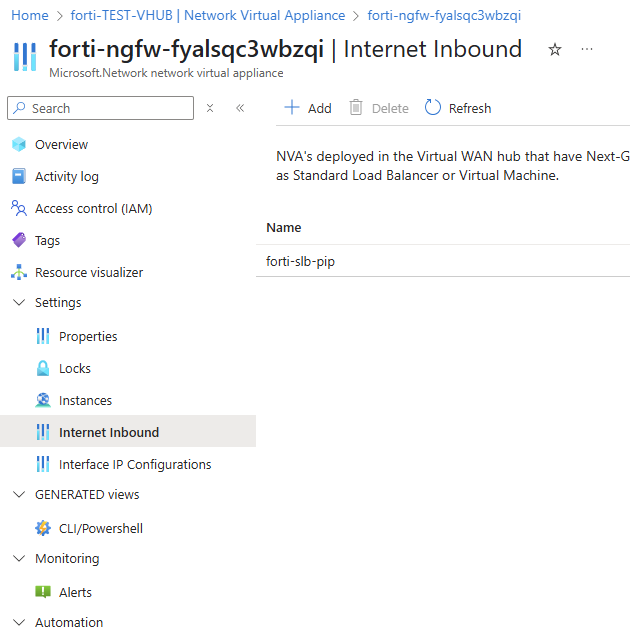

Tried IP, full resource ID, and exact name. Any help is appreciated!

Error log:

Starting log (Run on device)

Start installing

forti-ngfw-fyalsqc3w~000  config azure vwan-slb

forti-ngfw-fyalsqc3w~000 (vwan-slb)  config permanent-security-rules

forti-ngfw-fyalsqc3w~000 (permanent-securi~les)  set status enable

forti-ngfw-fyalsqc3w~000 (permanent-securi~les)  config rules

forti-ngfw-fyalsqc3w~000 (rules)  edit "test"

forti-ngfw-fyalsqc3w~000 (test)  set source-address-prefix "*"

forti-ngfw-fyalsqc3w~000 (test)  set destination-port-ranges "443"

forti-ngfw-fyalsqc3w~000 (test)  set applies-on "forti-slb-pip"

invalid ingress public IP: forti-slb-pip

acceptable public IP name:

Command fail. Return code -9999

forti-ngfw-fyalsqc3w~000 (test)  next

Attribute 'applies-on' MUST be set.

Command fail. Return code 1

forti-ngfw-fyalsqc3w~000 (rules)  end

forti-ngfw-fyalsqc3w~000 (permanent-securi~les)  end

forti-ngfw-fyalsqc3w~000 (vwan-slb)  end

---> generating verification report

 ( azure vwan-slb permanent-security-rules rules )

add entry "test"

(global: azure vwan-slb permanent-security-rules rules "test":source-address-prefix)

remote original:

to be installed: "*"

(global: azure vwan-slb permanent-security-rules rules "test":destination-port-ranges)

remote original:

to be installed: "443"

(global: azure vwan-slb permanent-security-rules rules "test":applies-on)

remote original:

to be installed: "forti-slb-pip"

<--- done generating verification report

------- Start to retry --------

forti-ngfw-fyalsqc3w~000  config azure vwan-slb

forti-ngfw-fyalsqc3w~000 (vwan-slb)  config permanent-security-rules

forti-ngfw-fyalsqc3w~000 (permanent-securi~les)  config rules

forti-ngfw-fyalsqc3w~000 (rules)  edit "test"

forti-ngfw-fyalsqc3w~000 (test)  set source-address-prefix "*"

forti-ngfw-fyalsqc3w~000 (test)  set destination-port-ranges "443"

forti-ngfw-fyalsqc3w~000 (test)  set applies-on "forti-slb-pip"

invalid ingress public IP: forti-slb-pip

acceptable public IP name:

Command fail. Return code -9999

forti-ngfw-fyalsqc3w~000 (test)  next

Attribute 'applies-on' MUST be set.

Command fail. Return code 1

forti-ngfw-fyalsqc3w~000 (rules)  end

forti-ngfw-fyalsqc3w~000 (permanent-securi~les)  end

forti-ngfw-fyalsqc3w~000 (vwan-slb)  end

---> generating verification report

 ( azure vwan-slb permanent-security-rules rules )

add entry "test"

(global: azure vwan-slb permanent-security-rules rules "test":source-address-prefix)

remote original:

to be installed: "*"

(global: azure vwan-slb permanent-security-rules rules "test":destination-port-ranges)

remote original:

to be installed: "443"

(global: azure vwan-slb permanent-security-rules rules "test":applies-on)

remote original:

to be installed: "forti-slb-pip"

<--- done generating verification report

install failed

[WilmerWubs · Accepted solution]

Solved: I think the solution was hybrid image instead of just ngfw. Works now as expected.
