Troubleshooting Tip: What is the command to enable/disable proxy arp on SSIDs when APs are managed by Wireless Controller

Description

This article describes how the proxy ARP can be enabled on the APs per SSID when the APs are managed by the Wireless Controller.

Scope

Proxy ARP, Wireless Troubleshooting, SSID, AP.

Solution

Proxy ARP can be enabled per SSID on the AP CLI as follows.

conn ap <AP ID>

The following command will list the SSID interface details broadcasted on the AP.

vap display

To check the status of the proxy arp, the following command can be used in AP CLI:

sys exec cmd /wl –i wl0.1 proxy_arp

0 – Disabled , 1 – Enabled

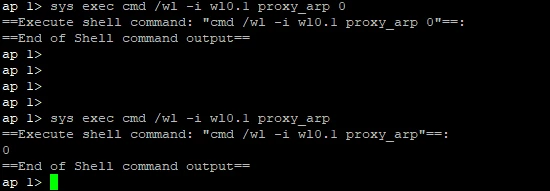

The following is the command to change the proxy ARP config on the AP CLI. In this scenario proxy arp is disabled using the value 0.

sys exec cmd /wl –i wl0.1 proxy_arp 0
