Technical Tip: How to create a new Bridge mode SSID with dedicated VLAN for users

Description

This article describes how to create a new SSID in Bridge mode using a dedicated VLAN for Wireless clients.

Scope

All FortiGates as Wireless LAN Controllers.

Solution

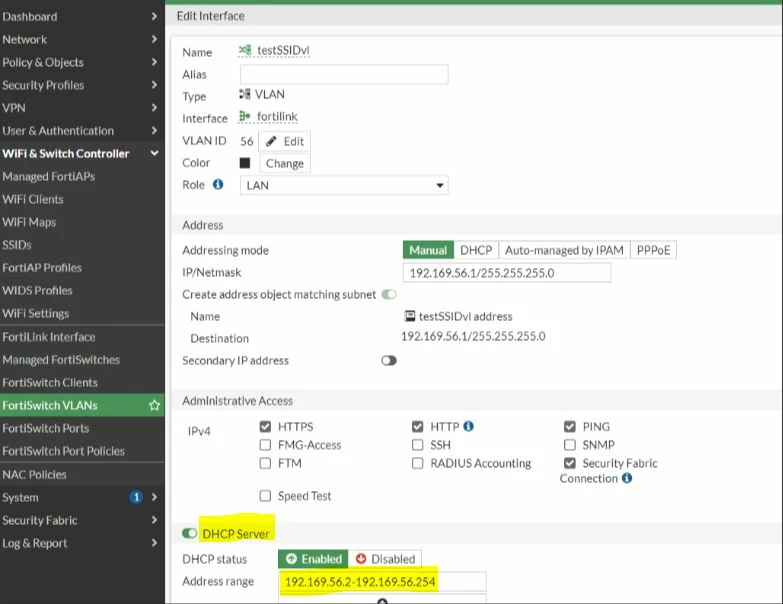

1. Create a new VLAN and enable a DHCP Server for the IP address assignments to the client devices:

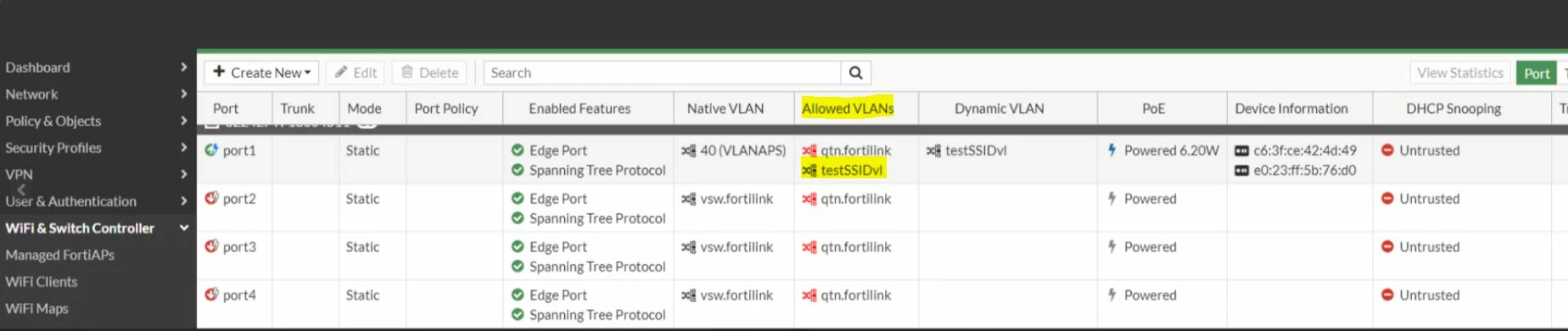

2. In the WiFi & Switch Controller, add the new VLAN to the 'Allowed VLANs' section.

   Repeat this for each FortiSwitch port where a FortiAP is connected that will be broadcasting the bridge mode SSID.

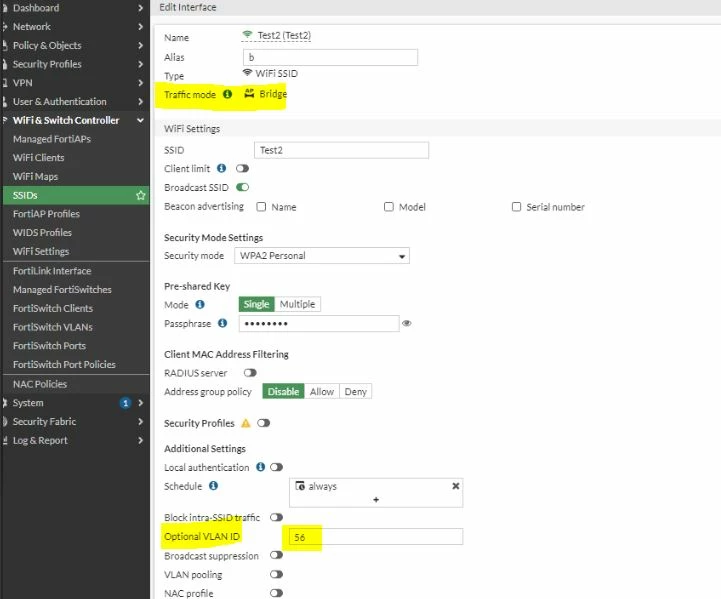

3. Create a new SSID with Traffic mode set to Bridge and set the VLAN ID under Optional VLAN ID.









4. Create a Firewall Policy (in the example, to allow the new VLAN to access the Internet):

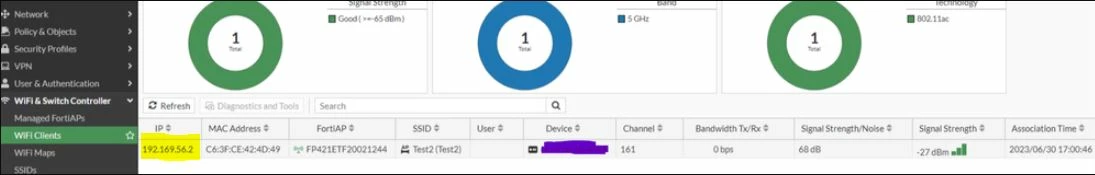

5. Connect a device to the new SSID and then browse to WiFi & Switch Controller -> WiFi Clients. The device will obtain an IP Address from the new VLAN and have Internet access.



Note:

The WI-FI in bridge mode is required when directly bridging a Wi-Fi interface with Ethernet in a Layer 2 switch to allow traffic between the members.
