ssl vpn create multiple IPs on clients, why

We are having problem that some ssl vpn users have several ip tunnel






and that's create a problems with clients.

What cause this?






6 REPLIES 6
Anonymous
Not applicable

Hello fortiGuru,



                     Thanks for reaching Fortinet Forum. Please make sure "Limit users to One SSL-VPN connection at a time" is enabled on the respective portal. If yes please provide the following information



- What is the firmware version of the firewall and the forticlient in question?



- Under the SSL-VPN monitor do you see this issue for all the users who connect?



- Also please collect the output for the following commands



#diagnose vpn ssl statistics all

#get vpn ssl monitor







hmogal
Staff
Staff

Hi FortiGuru,
"Limit users to One SSL-VPN connection at a time" ... this is one of the solutions.
Find out if user logins in using multiple devices.
Each Forticlinet should have 1 x IP address on the adapter.

Himanshu Mogal

fortiGuru
New Contributor

Thanks for replies. That option in portal is enabled.

Users use only 1 device per forticlient.
Firewall is:



FortiGate 200F
v6.4.4 build5543 (GA)

FortiClient is not a problem, we used from newest to earlier versions (from now), and still having problems.

command:

diagnose vpn ssl statistics all
SSLVPN statistics (all vdoms):
------------------
Memory unit: 1
System total memory: 8366841856
System free memory: 4799143936
SSLVPN memory margin: 629145600
SSLVPN state: normal

Max number of users: 30
Max number of tunnels: 30
Max number of connections: 31

Current number of users: 11
Current number of tunnels: 11
Current number of connections: 11

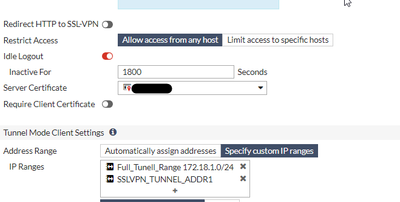

forti ssl.png

WalterNet
New Contributor

Did you manage to get this resolved?

btan
Staff
Staff

Hello,



You may try using below command:
# config system global
    set policy-auth-concurrent 1
end

Refer: https://community.fortinet.com/t5/FortiGate/Technical-Tip-policy-auth-concurrent-system-global-comma...

Since you are on FortiOS 6.4.4, you can also try upgrade to FortiOS 6.4.6 to see if it hit this known bug.





Regards,
Bon
ReseauSL
New Contributor

I had that same new problem intermitent with a few of my customers running 6.0.14 or 5.6.11. The Fortigate seem to keep in memory the IP address of the previous connections from that same user, doesnt clear his cache.
