"Enable IPsec Interface Mode"-Option missing

[Floto]

Hello everyone,

since Fortigate Firmware Version 7.6.0 (and above) the "Enable IPsec Interface Mode"-Option is missing when creating a new costum VPN Tunnel.

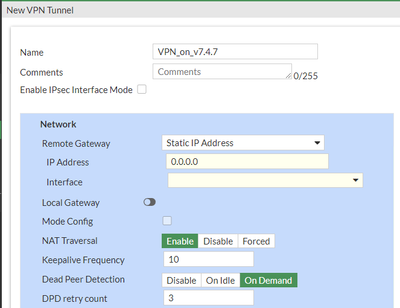

On Firmware Version 7.4.7 everything is fine. The checkbox is displayed and can be unchecked.

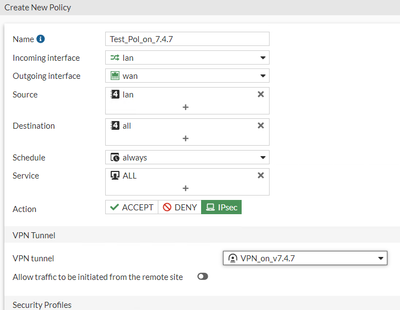

When creating a new policy i can switch the Action to "IPsec" an choose the VPN tunnel:

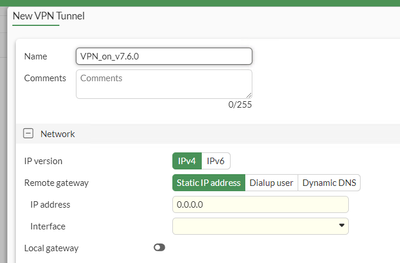

After upgrading the same Fortigate 40F to Version 7.6.0 the "Enable IPsec Interface Mode" is disappeared:

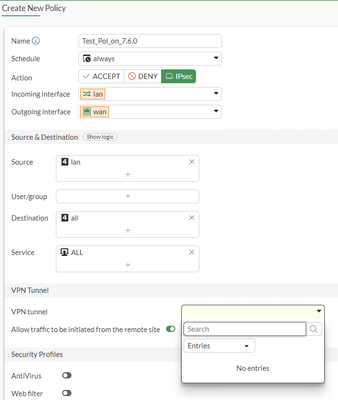

Without unchecking this option i can't choose the VPN tunnel in a new policy

 

I already tried to deactivate the "policy-based IPsec VPN" Feature and active it again. It did not work. I also updated the Firmware to 7.6.1 and 7.6.2. On both versions the same problem.

Is this a bug or kinda a feature?

Best regards from Germany,

Florian

[funkylicious]

hi,

try from cli

config system settings

set gui-policy-based-ipsec enable

end

or from GUI , System > Feature Visibility > Policy based IPsec

[Floto]

Hi funky,

thanks for your advice, unfortunately it didn't help.
I also tried to disable first and enable via cli.

[dingjerry_FTNT]

Hi @Floto ,

"I already tried to deactivate the "policy-based IPsec VPN" Feature and active it again"

How did you do it?

[Floto]

Hi dingjerry_FTNT,

i tried it via GUI and CLI, neither worked.

[dingjerry_FTNT]

Hi @Floto ,

As I mentioned, this should be a GUI bug.  Please raise a TAC ticket to request for a Bug report on this issue.

Meanwhile, you may create the policy-based IPSec VPN using the CLI commands  "config vpn ipsec phase1 | phase2]" for your phase1 & phase2 settings as a workaround.

Once created, I believe that you can see it in GUI.

[dingjerry_FTNT]

Hi @Floto ,

I just did a quick test and think that this is a bug.

You may raise a TAC ticket to request the TAC team to report a bug for you.

[dingjerry_FTNT]

@Floto ,

BTW, I think that this is a GUI bug.  Because I still see the CLI commands for policy-based IPSec VPN configurations.
