i have 4FortiAP 221C with OS as FP221C-v6.0-build0044 connected to Fortigate firewall 100F. Currently we are facing problem on wifi connectivity like we observed the randomly all AP channel utilization increased on both 2.4 and 5ghz.
we have set 15 clients to connect per AP.

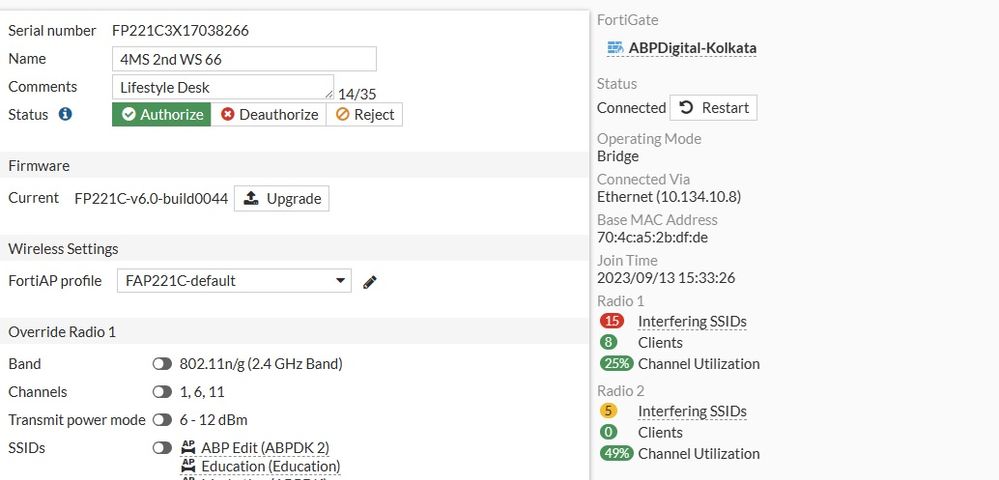

Also we observed some interfering SSID's . how to remove this from particular AP.
Kindly suggest what we have to do to resolve this issue

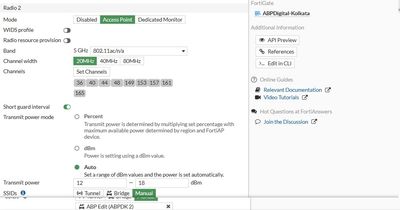

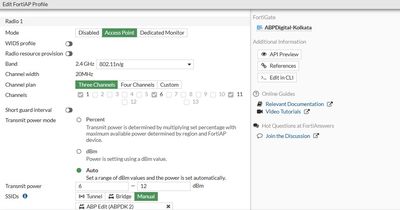

What channel width are you using? You can try 20MHz for 2.4GHz and see... With the diagnostic tool you can see what SSID is interfering with yours you can also use netspot software to see this overlap.. Interference in 2.4GHz is not uncommon...
This is probably your neighbors SSIDs and this is normal because in 2.4GHz we just have 3 non overlapping channels and this must be shared. From what i can see the signal strength is not strong and this will not have impact on your wireless network.. Can you try to filter by signal strength?
For 2.4 GHz Band (Radio1) there is not much what you can do since there are few non overlapping channels (3~4) and has longer coverage distance from interfering SSIDs.
For 5 GHz Band there are many non overlapping channels that you can use depending on your environment/country.
You can also configure the AP to band-steer the users to the 5GHz band or if all the client supports "ac" you can completely disable 2.4 band if its channels are overused and the 5 band offers good coverage for the whole area.
- Emirjon If you have found a solution, please like and accept it to make it easily accessible for others.
Impossible to say without many more details. RF environment, physical layout, location requirements, client types, client counts, etc. That being said the 221E would be the most direct replacement. But it has no WiFi6 or 6E support. So I would probably look at a 231G which has 6E support. If you have no desire for 6E then the 231F.
