conditions for SD-WAN rule processing

[ctyctyctctcty]

Hello.
Below is my understanding of the conditions for SD-WAN rule processing. Is this correct?

1. The interface must be configured as an SD-WAN member.
2. An SD-WAN policy must exist, and the traffic must match that policy’s conditions.
3. The FIB is used to determine the next hop. FIB entries come from the RIB , which updates the FIB automatically. To add information to the FIB, routes must first be added to the RIB.

[Anthony_E]

Hello,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,

[Fab-S]

Hello

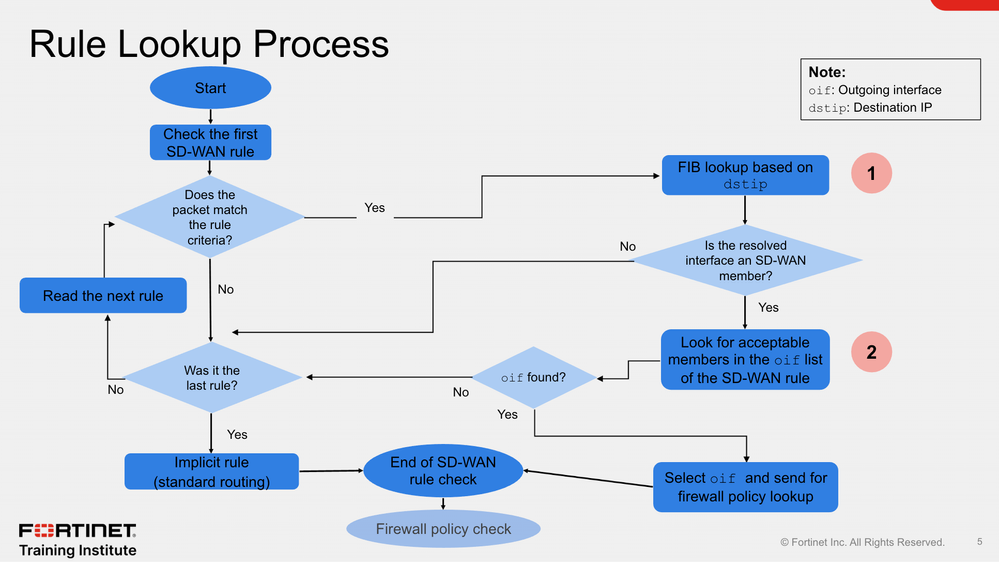

Here is the rule lookup process from the Fortinet Institute:

[Fab-S]

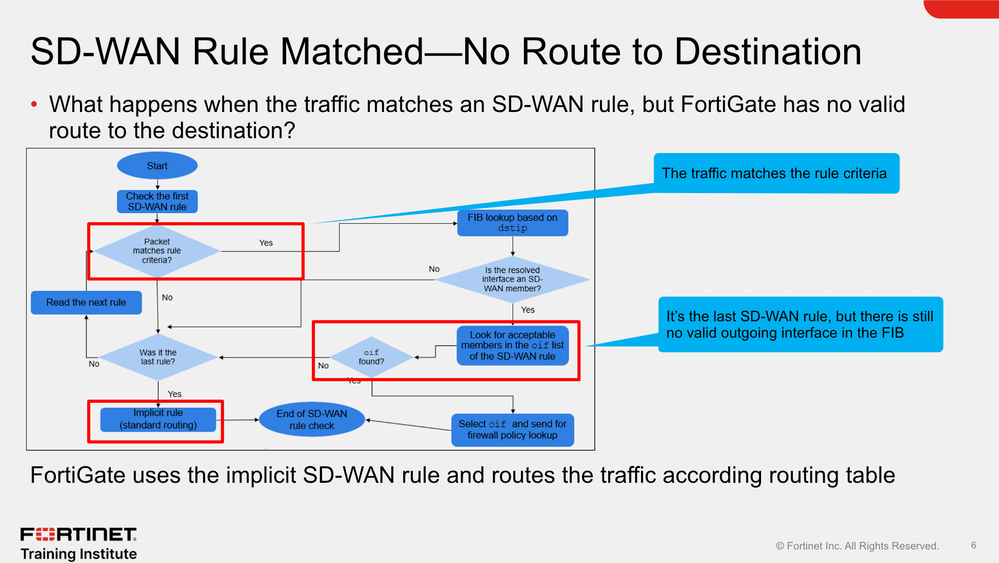

And also:

I guess that you should find all what you want on the FCSS SDW free lesson on the Fortinet Institute.

Regards :)
